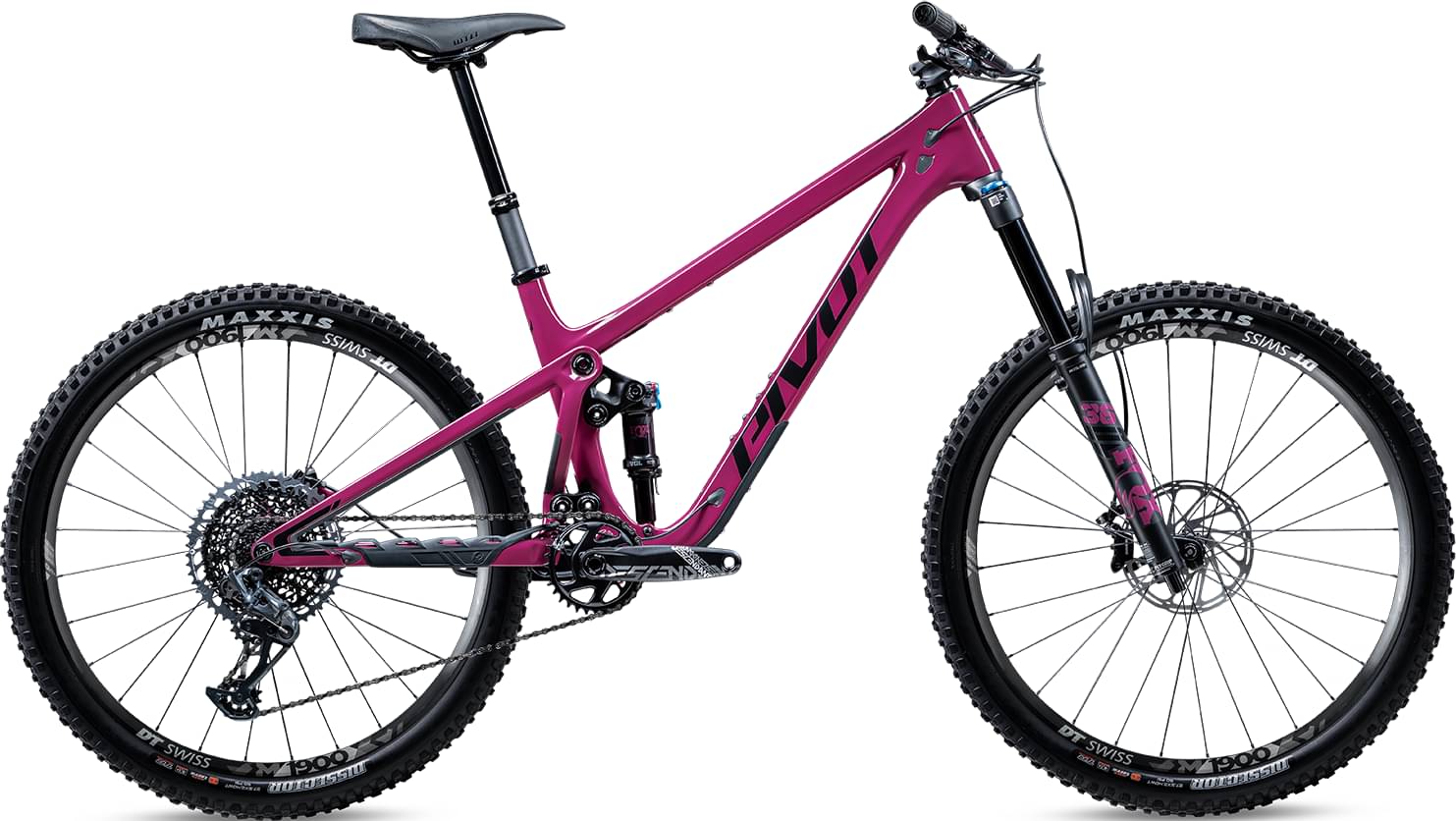

Pivot Shadowcat Race X01 2022
2022 Mountain
Estimate price |
7,569$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shadowcat
Suspension Fork
Fox Performance 36 27.5", 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance Float DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM Descendant 7k Eagle DUB 32t
Chain
SRAM GX Eagle 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 27.5”
15x110 F/12x148 R
Tires
Maxxis Dissector 27.5" x 2.4" TR, EXO
Maxxis Dissector 27.5" x 2.4" TR, EXO
Brakes
Brakes
SRAM Guide RE 4-piston
Disk Rotors
SRAM Centerline 6-bolt - 180mm
SRAM Centerline 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race High Tail Trail (XS, SM), Phoenix WTB Race Vigo (MD-LG)
Seatpost
Fox Transfer Performance Elite 125mm (XS), 150mm (SM), 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 713 mm | 743 mm | 777 mm | 801 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 576 mm | 599 mm | 608 mm | 617 mm |
| Reach | 404 mm | 424 mm | 454 mm | 474 mm |
| Top Tube Length | 563 mm | 589 mm | 621 mm | 644 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 85 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1136 mm | 1166 mm | 1200 mm | 1224 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 618 mm | 632 mm | 651 mm | 665 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
Model Overview
Shadowcat Race X01 belongs to the Pivot Shadowcat model. Pivot released 18 bikes variations of this model so far. Take a sneak peek at all Pivot Shadowcat bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Pivot Shadowcat Race XT 2022 has a starting price of 6582$. Pivot Shadowcat Team XX1 AXS 2022 on the other hand is the most expensive at 13006$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 7007$. In conclusion, this bike price is 153.69% higher than the price of the average Trail bike.
Shadowcat Race X01 components
Fork
Pivot Shadowcat Race X01 2022 bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Pivot Shadowcat Race X01 bike has the Fox Performance Float DPS model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Shadowcat Race X01 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Shadowcat Race X01 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Pivot Shadowcat Race X01 bike has 4 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Shadowcat Race X01 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
