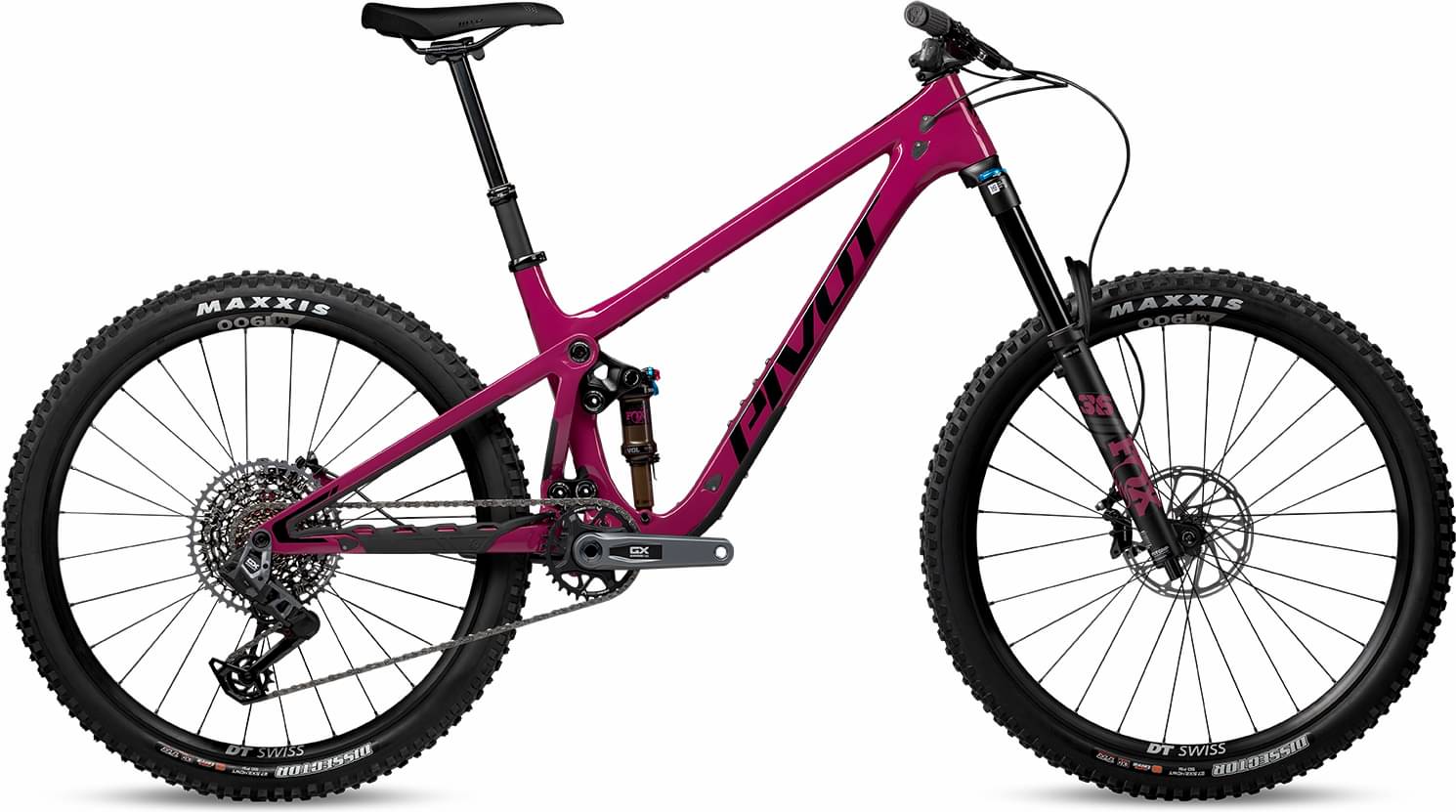

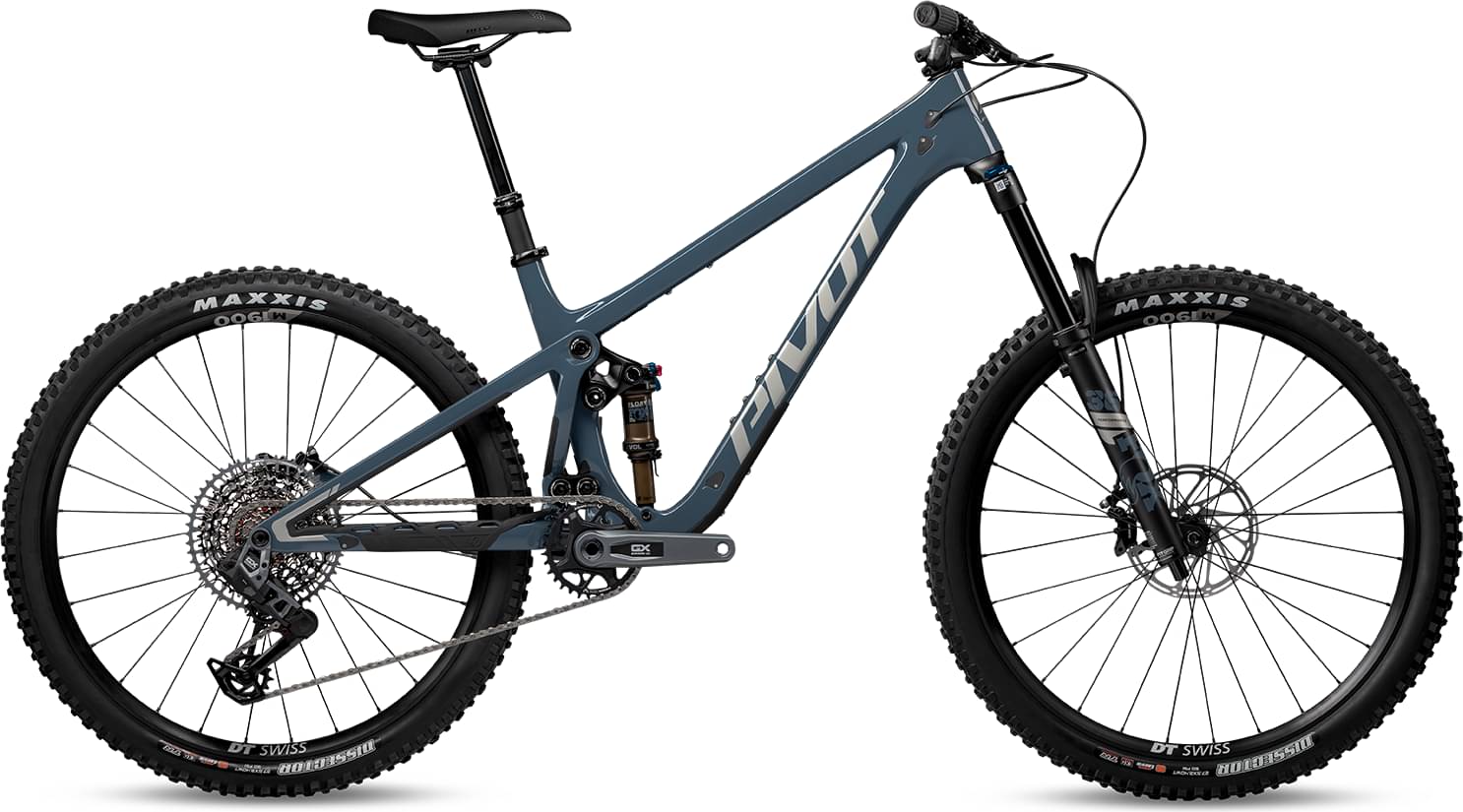

Pivot Shadowcat Ride GX Eagle Transmission 2023
2023 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shadowcat
Suspension Fork
Fox Performance 36 27.5", 44mm offset, GRIP - 160mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM GX 1275 Eagle Transmission 10-52t
Crank
SRAM GX Eagle DUB 32t
Chain
SRAM GX Eagle Transmission Flattop 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 27.5”
15x110 F/12x148 R
Tires
Maxxis Dissector 27.5" x 2.4" TR, EXO
Maxxis Dissector 27.5" x 2.4" TR, EXO
Brakes
Brakes
SRAM G2 RE 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race High Tail Trail (XS, SM), Phoenix WTB Race VOLT Medium Width (MD-XL)
Seatpost
Fox Transfer Performance Elite 125mm (XS), SDG TELLIS 150mm (SM), Fox Transfer Performance Elite 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 713 mm | 743 mm | 777 mm | 801 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 576 mm | 599 mm | 608 mm | 617 mm |
| Reach | 404 mm | 424 mm | 454 mm | 474 mm |
| Top Tube Length | 563 mm | 589 mm | 621 mm | 644 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 85 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1136 mm | 1166 mm | 1200 mm | 1224 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 618 mm | 632 mm | 651 mm | 665 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
About this model
Shadowcat Ride GX Eagle Transmission is a Pivot Shadowcat model. 18 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Pivot Shadowcat RIDE LIKE A PRO 2023 is the cheapest bike model and costs 5999$. Pivot Shadowcat Team XX1 AXS 2023 is the most expensive one and costs 11899$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Pivot Shadowcat Ride GX Eagle Transmission price was 6999$. Comparing the average cost of a Trail bike to this one, you will see that Shadowcat Ride GX Eagle Transmission price is 153.4% higher.
Overview of components
Fork
Pivot Shadowcat Ride GX Eagle Transmission 2023 bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Shadowcat Ride GX Eagle Transmission has a rear shock with a travel of 140mm. The model Fox Factory Float DPS is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Shadowcat Ride GX Eagle Transmission 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Shadowcat Ride GX Eagle Transmission is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Shadowcat Ride GX Eagle Transmission comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
