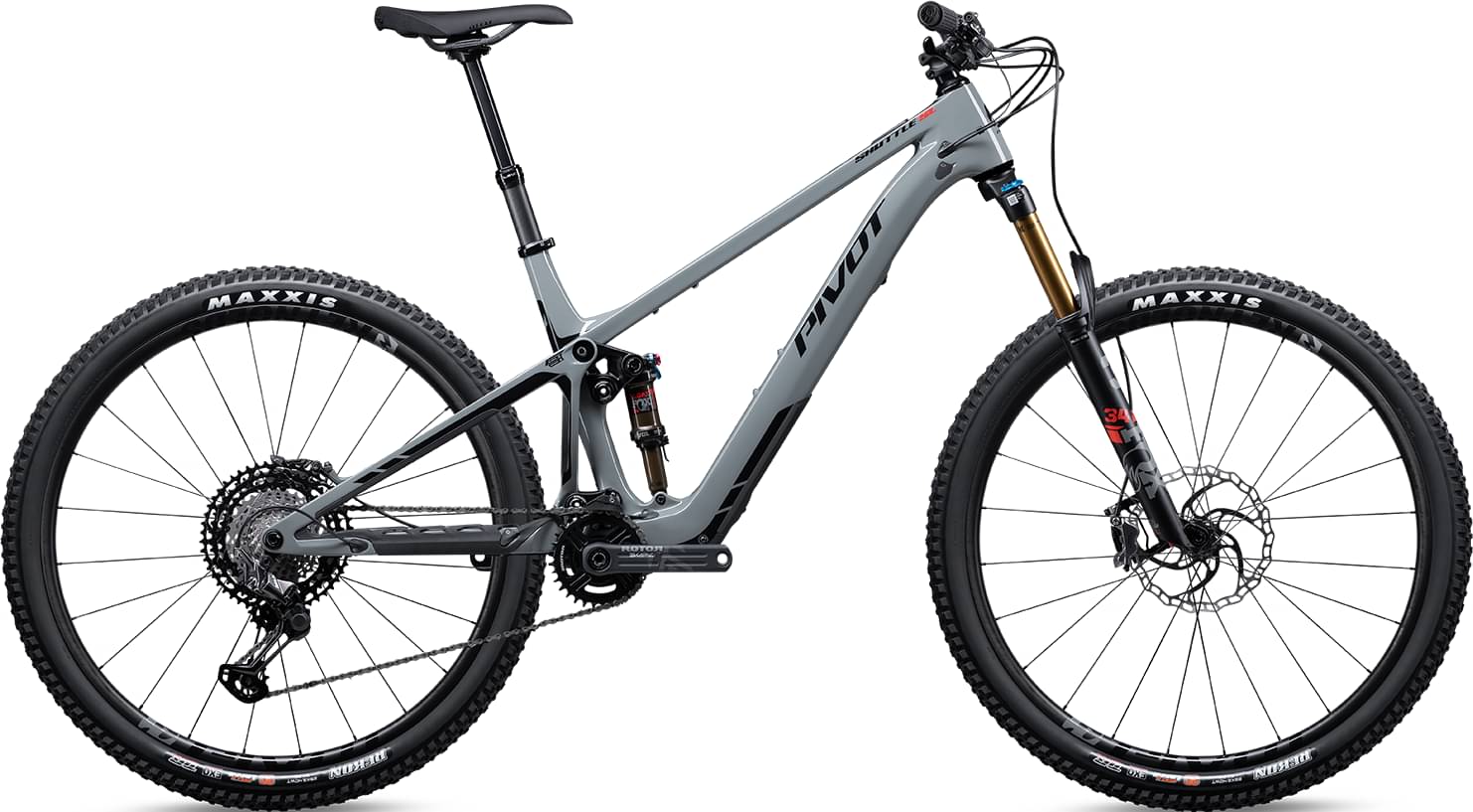

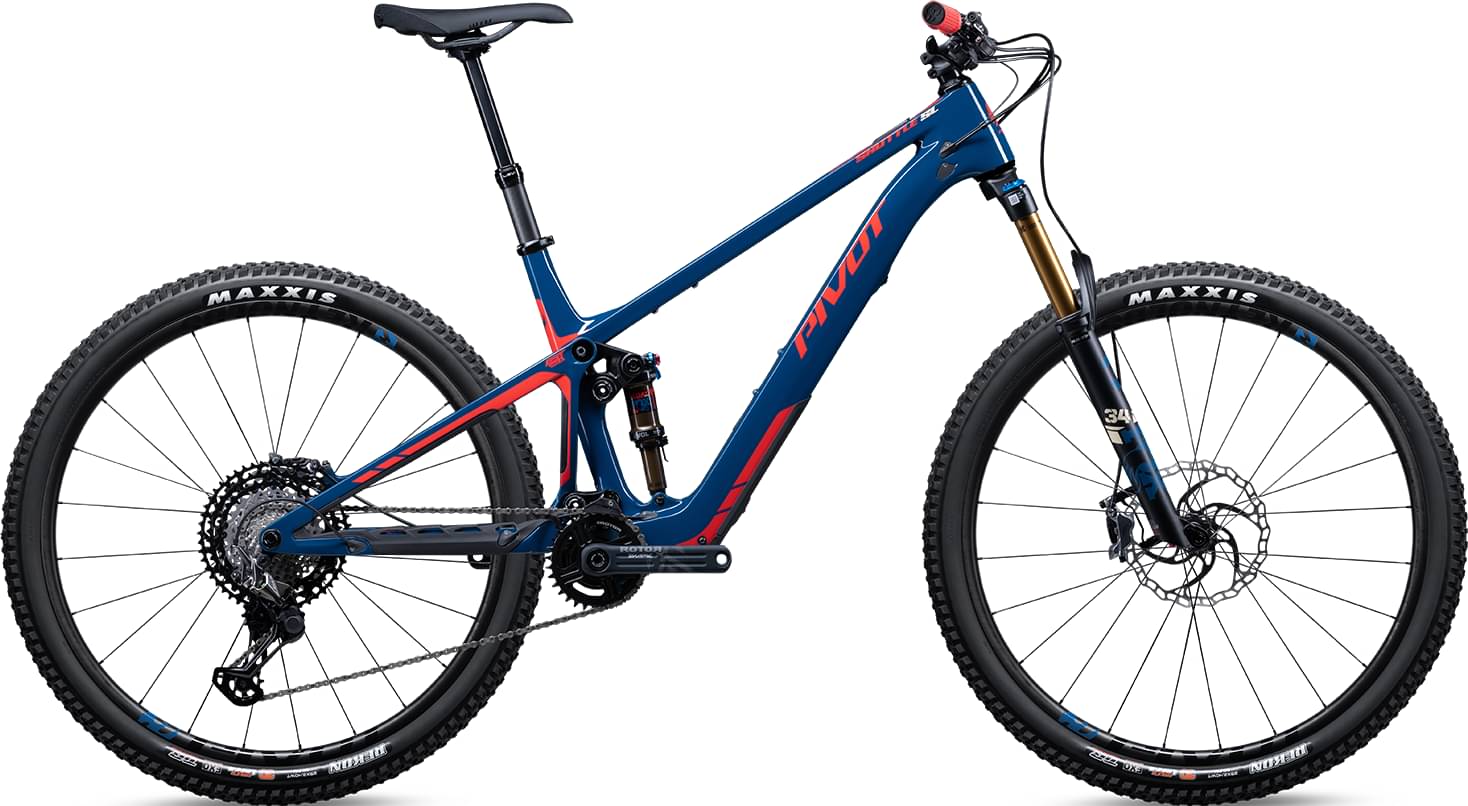

Pivot Shuttle SL World Cup XTR 2022
2022 E-bike
Estimate price |
13,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Motor Fazua mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
162cm - 174cm
SM Low
162cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 189cm
LG Low
179cm - 189cm
XL High
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle SL
Suspension Fork
Fox Factory E-MTB 34 29", 44mm offset, FIT4 - 140mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
ROTOR EKAPIC E-MTB 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29"
15x110 F/12x157 R
Tires
Maxxis Rekon 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Maxxis Rekon 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon -780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB World Cup Volt (Medium Width) - carbon rails
Seatpost
KS LEV Ci 150mm (SM) 175mm (MD-XL)
Motor & Battery
Motor
FAZUA RIDE 60
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.32 mm | 1.34 mm | 1.3 mm | 1.32 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 352 mm | 347 mm | 352 mm | 347 mm | 352 mm | 347 mm | 352 mm | 347 mm |
| Front Center | 756 mm | 755 mm | 793 mm | 792 mm | 808 mm | 807 mm | 836 mm | 835 mm |
| Rake | 45 mm | 43 mm | 45 mm | 43 mm | 45 mm | 43 mm | 45 mm | 44 mm |
| Trail | 121 mm | 127 mm | 121 mm | 127 mm | 121 mm | 127 mm | 122 mm | 126 mm |
| Stack | 609 mm | 612 mm | 624 mm | 628 mm | 628 mm | 632 mm | 640 mm | 644 mm |
| Reach | 441 mm | 437 mm | 471 mm | 467 mm | 484 mm | 480 mm | 506 mm | 502 mm |
| Top Tube Length | 599 mm | 600 mm | 633 mm | 634 mm | 647 mm | 648 mm | 661 mm | 662 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 76.5 ° | 76 ° | 76.5 ° | 76 ° | 77.2 ° | 76.8 ° |
| Seat Tube Length | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.4 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 112 mm | 112 mm | 117 mm | 117 mm | 130 mm | 130 mm |
| Chainstay Length | 432 mm | 434 mm | 432 mm | 434 mm | 434 mm | 436 mm | 438 mm | 440 mm |
| Wheelbase | 1187 mm | 1188 mm | 1224 mm | 1225 mm | 1241 mm | 1242 mm | 1273 mm | 1274 mm |
| Bottom Bracket Drop | 21 mm | 27 mm | 21 mm | 27 mm | 21 mm | 27 mm | 21 mm | 27 mm |
| Standover Height | 676 mm | 667 mm | 679 mm | 670 mm | 684 mm | 676 mm | 689 mm | 680 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 162 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
About this model
Shuttle SL World Cup XTR is a Pivot E Shuttle Sl model. Pivot released 9 e-bikes variations of this model so far. Take a sneak peek at all Pivot E Shuttle Sl e-bikes models from 2022, by clicking here.
Model range prices
Pivot Shuttle SL Ride SLX/XT 2022 is the cheapest e-bike model and costs 8999$. Pivot Shuttle SL World Cup XTR 2022 is the most expensive one and costs 13199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2022, its price was 13199$. If we compare this with the average Trail e-bike cost we notice that the price is 292.24% higher.
Shuttle SL World Cup XTR components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Pivot Shuttle SL World Cup XTR 2022, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Shuttle SL World Cup XTR has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Pivot Shuttle SL World Cup XTR e-bike has 8 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Shuttle SL World Cup XTR. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
