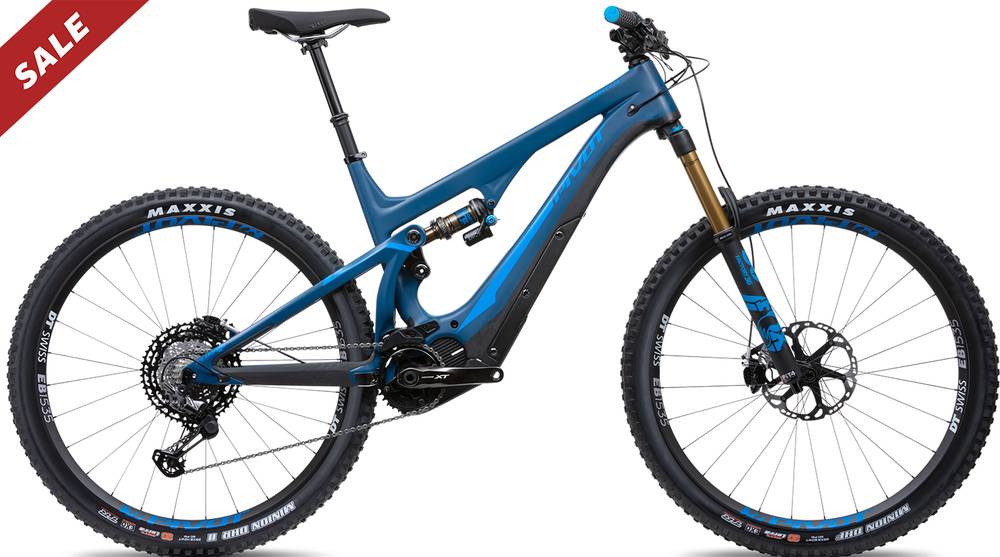

Pivot Shuttle Team XTR 2020
2020 E-bike
Estimate price |
10,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle
Suspension Fork
Fox Factory E-MTB 36 29", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPX2
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Shimano XT M8050 w/ Shimano E-MTB 34t
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
DT Swiss EB 1535, 30mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" TR, EXO+, 3CT Maxxis Minion DHR II 29" x 2.4" TR, EXO+, 3CT
Brakes
Brakes
Shimano XT M8020 4-piston
Disk Rotors
Shimano XT RT81 CenterLock - 203mm Shimano RT-EM810 CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro High Tail Trail (SM), Phoenix WTB Pro Vigo (MD-XL)
Seatpost
Fox Transfer Performance Series 125mm (SM), 150mm (MD-XL)
Motor & Battery
Motor
Shimano Steps DU-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 363 mm | 363 mm | 363 mm | 363 mm |
| Stack | 603 mm | 612 mm | 621 mm | 631 mm |
| Reach | 415 mm | 435 mm | 455 mm | 480 mm |
| Top Tube Length | 596 mm | 615 mm | 637 mm | 663 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 427 mm | 458 mm | 496 mm |
| Head Tube Angle | 65.2 ° | 65.2 ° | 65.2 ° | 65.3 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1178 mm | 1202 mm | 1226 mm | 1256 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 718 mm | 718 mm | 725 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Shuttle Team XTR completes the Pivot E Shuttle model. Pivot launched 14 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Shuttle Race XT 2020 has a starting price of 7899$. Pivot Shuttle Team XTR 2020 on the other hand is the most expensive at 10499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Pivot released this model in 2020, its price was 10499$. Doing a quick comparison, we notice that Shuttle Team XTR price is 119.41% higher than the average cost of an Enduro e-bike.
Overview of components
Fork
The Shuttle Team XTR comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Shuttle Team XTR 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Shuttle Team XTR is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Pivot Shuttle Team XTR e-bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Shuttle Team XTR. Therefore, climbing or descending will be a breeze.
