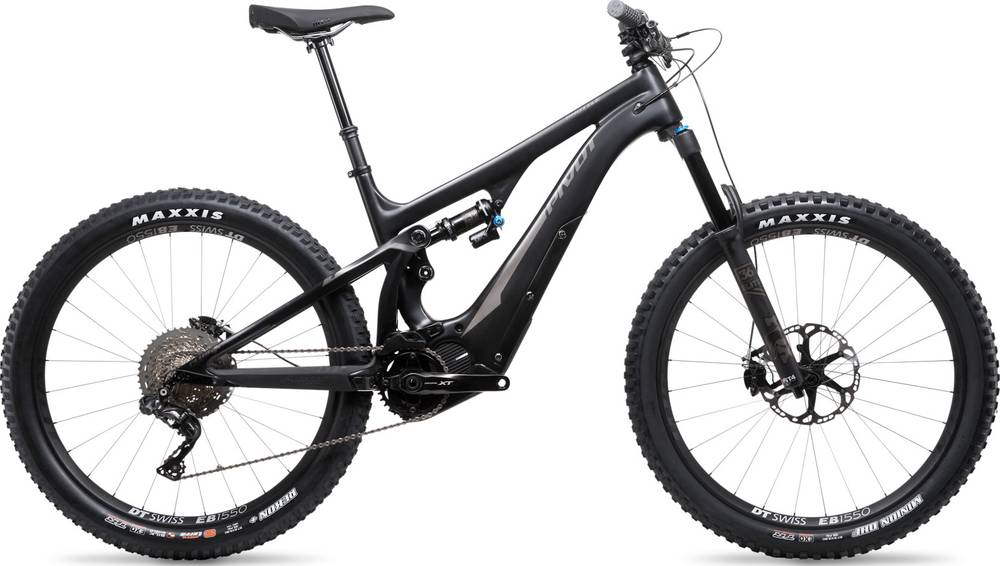

Pivot Shuttle US/CAN 2018
2018 E-bike
Estimate price |
9,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XT Di2, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8010 -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Performance Elite 29"/27.5+, Boost
Rear Shock
FOX Float Performance Elite DPX2
Drivetrain
Rear Derailleur
Shimano XT Di2 GS
Front Derailleur
N/A
Shift Levers
Shimano XT Di2 11-speed (right) / Shimano Steps E8000 (left)
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Shimano FC-E8050 Hollowtech, 170mm length
Chain
11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss/Pivot Custom EB1550 eMTB specific design
Rear Hub
DT Swiss/Pivot Custom EB1550 eMTB specific design
Rims
DT Swiss/Pivot Custom EB1550 eMTB specific design, 40mm width
Spokes
DT Swiss/Pivot Custom EB1550 eMTB specific design
Tires
Front: Maxxis Minion DHF, 27.5+ x 2.8" TR, Rear: Maxxis Rekon 27.5+ x 2.8" TR/Silk Shield
Brakes
Brakes
Shimano XT M8020, 4-piston
Brake Levers
Shimano XT M8020
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, 45mm length
Handlebar
Phoenix Team Carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Hightail Trail Race (S), Phoenix WTB Vigo Pro (M-XL)
Seatpost
FOX Transfer, 125mm drop (S), 150mm drop (M-XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano BT-E8010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Stack | 596.4 mm | 605.6 mm | 614.7 mm | 623.9 mm |
| Reach | 418.6 mm | 438.7 mm | 458.8 mm | 483.7 mm |
| Top Tube Length | 591.6 mm | 614.2 mm | 636.8 mm | 664.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393.7 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 110 mm | 119.9 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1178 mm | 1202 mm | 1226 mm | 1255 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 699 mm | 699 mm | 706 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Shuttle US/CAN is a Pivot E Shuttle model. There are 14 e-bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 9999$. If we compare this with the average Trail e-bike cost we notice that the price is 197.15% higher.
Overview of components
Fork
Pivot Shuttle US/CAN 2018 e-bike is equipped with the Fox Performance Elite Float 36 fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX Float Performance Elite DPX2, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Shuttle US/CAN model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Shuttle US/CAN has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Pivot Shuttle US/CAN e-bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Shuttle US/CAN includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
