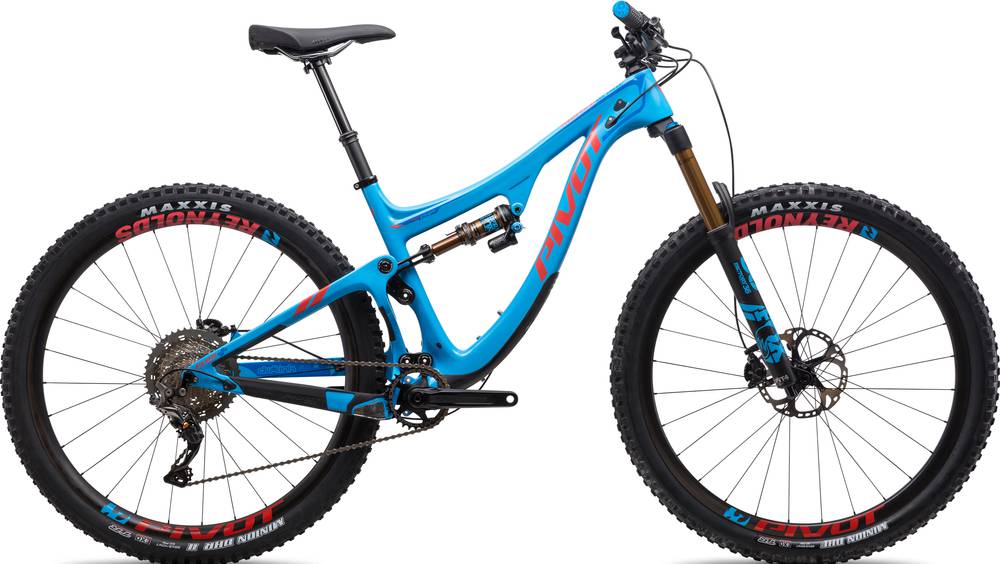

Pivot Switchblade 27.5″ Plus Race XT 2019
2019 Mountain
Estimate price |
5,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade Carbon
Suspension Fork
Fox Performance 36, 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance Float DPS EVOL
Drivetrain
Rear Derailleur
Shimano XT GS 11-Speed
Shift Levers
Shimano SLX M7000 11-Speed
Cassette
Shimano SLX M-7000 11-46t
Crank
Race Face Ride 30t
Chain
SRAM PC-1110 11-Speed
Wheels
Rims
SUNringlé Düroc 40 w/ SUNringlé SRC hub, 40mm - 27.5"+
Tires
Maxxis Rekon 27.5"+ x 2.8" TR, 3C, EXO, MAXXTERRA, SilkShieldMaxxis Rekon 27.5"+ x 2.8" TR, 3C, EXO, MAXXTERRA, SilkShield
Brakes
Brakes
Shimano SLX M7000
Disk Rotors
Shimano SLX 6-bolt - 180mmShimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail - 55mm
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Vigo
Seatpost
KS LEV 100mm (XS), KS LEV 125mm (SM), KS Rage-i 150mm(MD, LG), Fox Transfer 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 602 mm | 607 mm | 617 mm | 622 mm | 632 mm |
| Reach | 392 mm | 412 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 557 mm | 584 mm | 617 mm | 637 mm | 662 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 368 mm | 406 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° |
| Head Tube Length | 85 mm | 90 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1113 mm | 1135 mm | 1169 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 685 mm | 707 mm | 711 mm | 713 mm | 734 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Switchblade 27.5″ Plus Race XT is part of the Pivot Switchblade model. 108 bikes variations carry this model name so far. Take a sneak peek at all Pivot Switchblade bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Pivot Switchblade Aluminum 27.5″ Plus Race XT 2019 has a starting price of 3899$. Pivot Switchblade 27.5″ Plus Team XX1 AXS 2019 on the other hand is the most expensive at 10399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5199$. Comparing this to the average Enduro bike price, we see that the price is 44.46% more expensive.
Switchblade 27.5″ Plus Race XT components
Fork
The Switchblade 27.5″ Plus Race XT comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Switchblade 27.5″ Plus Race XT bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Switchblade 27.5″ Plus Race XT has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Pivot model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
