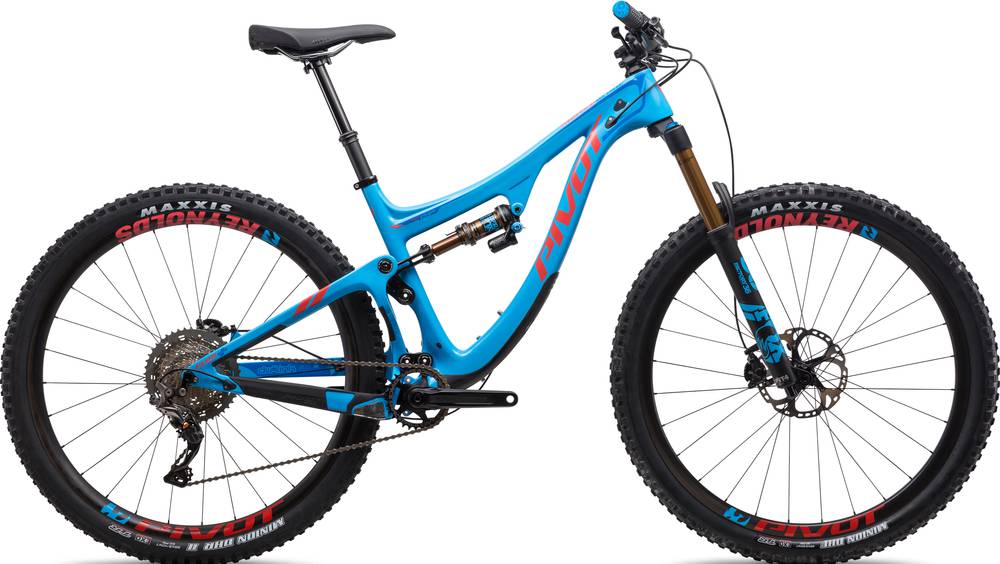

Pivot Switchblade 29″ Team XX1 AXS 2019
2019 Mountain
Estimate price |
10,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade Carbon
Suspension Fork
Fox Factory 36 29", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPX2
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 Eagle AXS
Cassette
SRAM XX1 XG-1299 10-50t
Crank
SRAM XX1 Eagle DUB SL 32t - 175mm
Chain
SRAM XX1 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM Guide Ultimate
Disk Rotors
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail - 55mm
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team Vigo
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 602 mm | 607 mm | 617 mm | 622 mm | 632 mm |
| Reach | 392 mm | 412 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 557 mm | 584 mm | 617 mm | 637 mm | 662 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 368 mm | 406 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° |
| Head Tube Length | 85 mm | 90 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1113 mm | 1135 mm | 1169 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 685 mm | 707 mm | 711 mm | 713 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Switchblade 29″ Team XX1 AXS belongs to the Pivot Switchblade model. Pivot launched 108 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Pivot Switchblade Aluminum 27.5″ Plus Race XT 2019 has a starting price of 3899$. Pivot Switchblade 27.5″ Plus Team XX1 AXS 2019 on the other hand is the most expensive at 10399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 10399$. Comparing this to the average Enduro bike price, we see that the price is 188.94% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Switchblade 29″ Team XX1 AXS are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Switchblade 29″ Team XX1 AXS comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Pivot Switchblade 29″ Team XX1 AXS comes with a dropper post. Therefore, climbing or descending will be a breeze.
