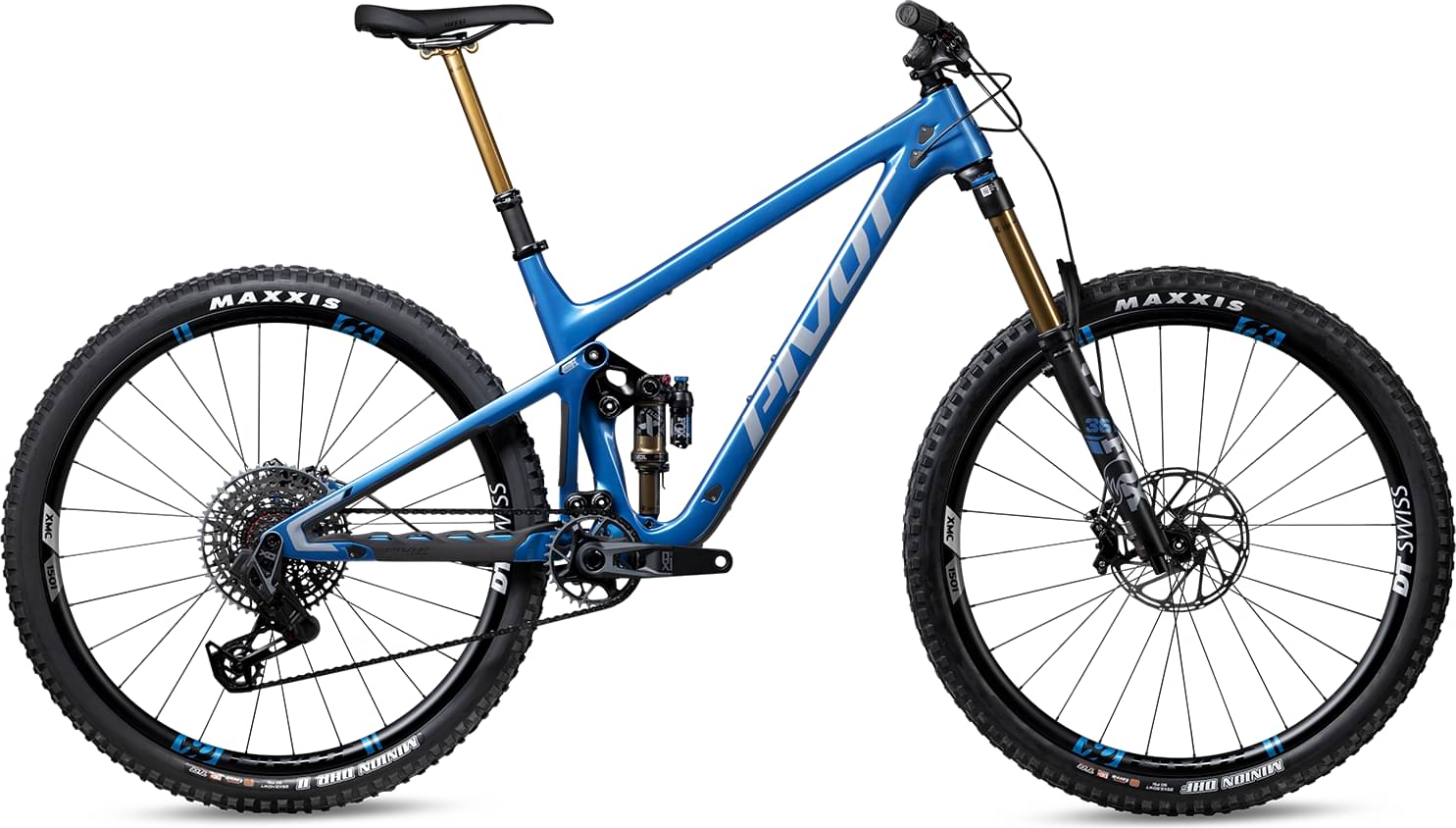

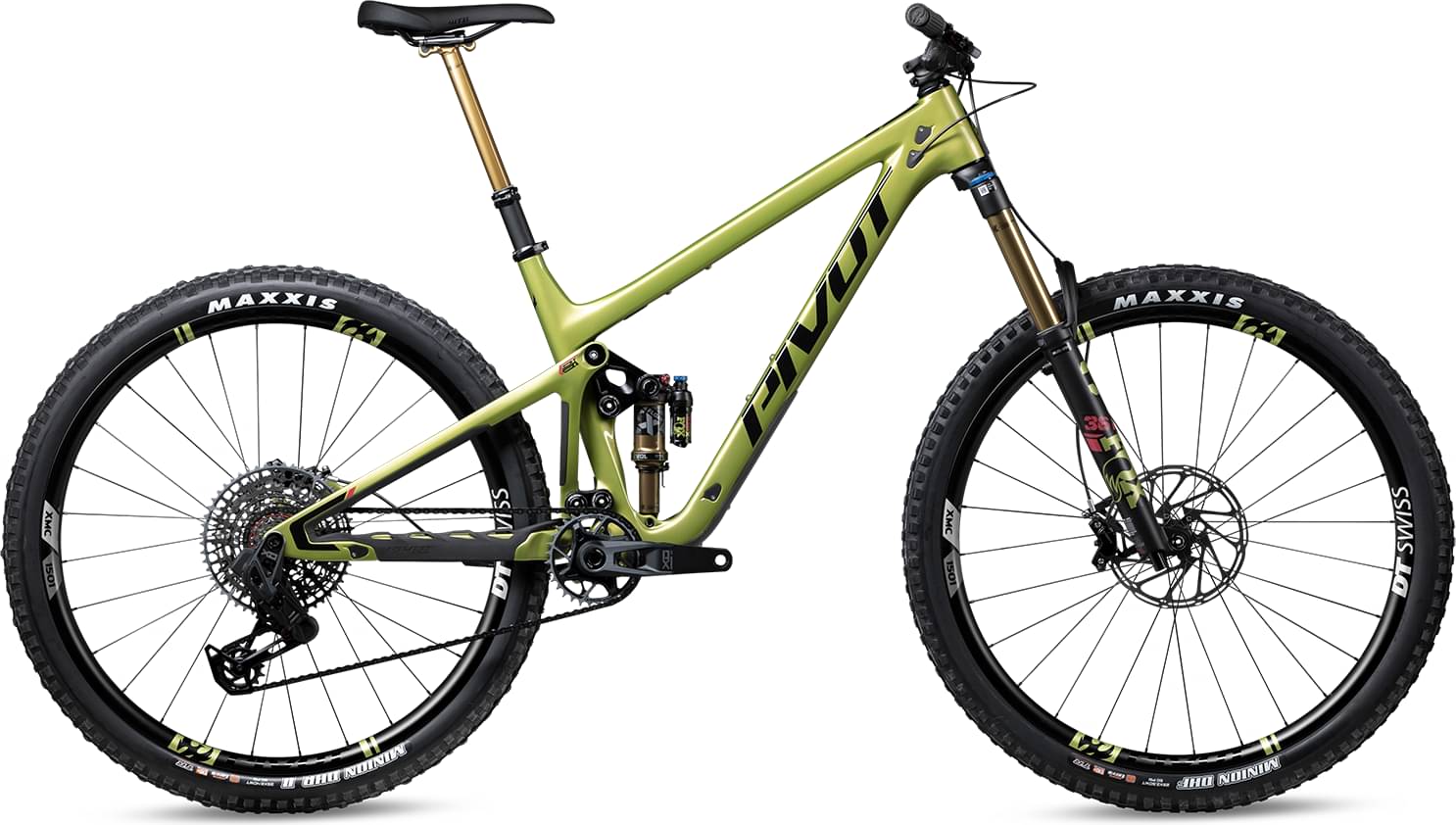

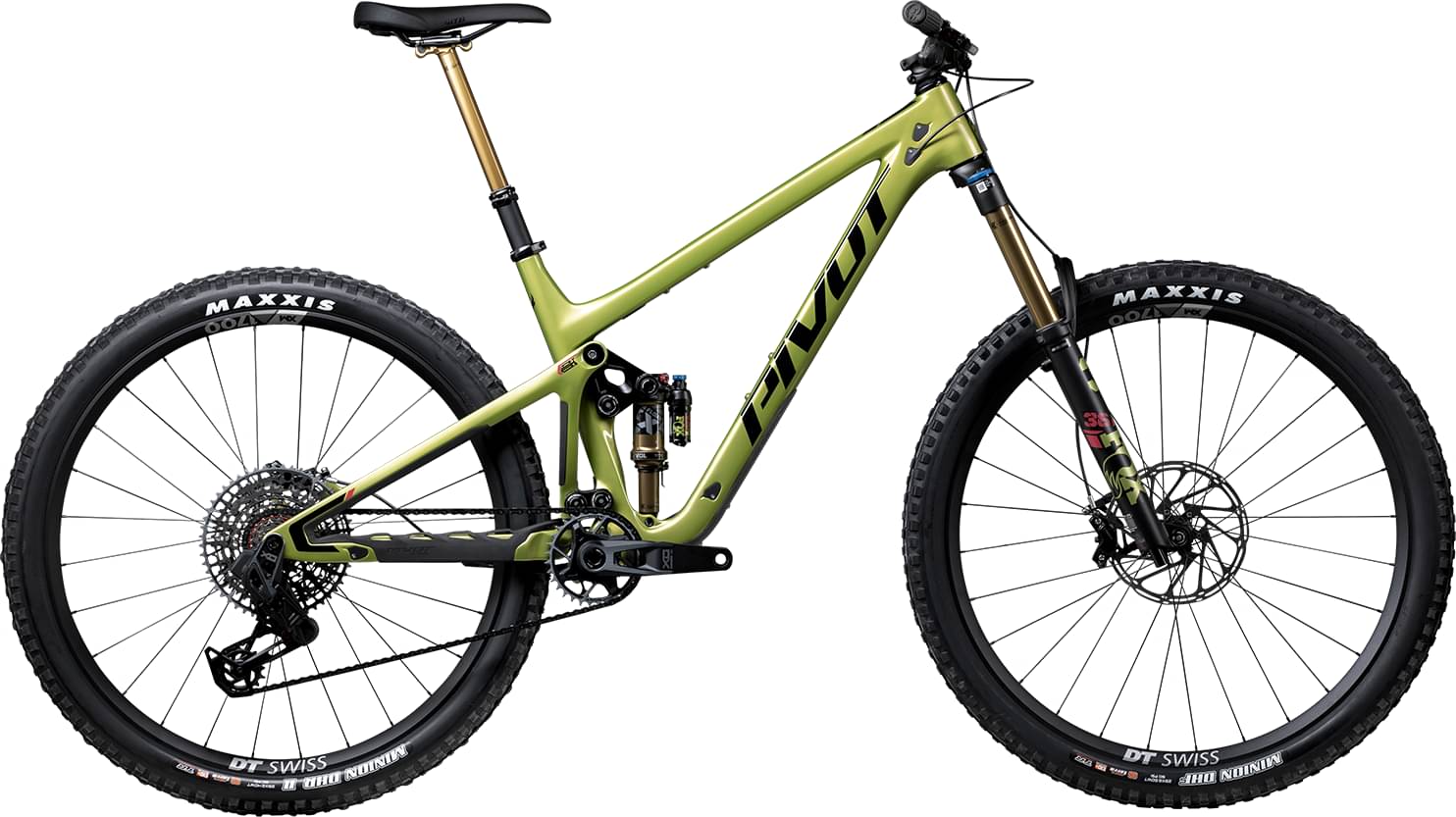

Pivot Switchblade Pro X0 Eagle Transmission 2023
2023 Mountain
Estimate price |
8,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 142mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory FLOATX
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X0 1295 Eagle Transmission 10-52t
Crank
SRAM X0 Eagle DUB 32t
Chain
SRAM X0 Eagle Transmission Flattop 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29"
15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM Code RSC 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), One Up Low Rise Carbon 800mm (XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL)
Seatpost
Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.38 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 604 mm | 608 mm | 619 mm | 624 mm | 635 mm |
| Reach | 404 mm | 424 mm | 449 mm | 464 mm | 484 mm |
| Top Tube Length | 563 mm | 586 mm | 614 mm | 632 mm | 655 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 85 mm | 90 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1141 mm | 1163 mm | 1187 mm | 1210 mm | 1235 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 642 mm | 662 mm | 688 mm | 690 mm | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Switchblade Pro X0 Eagle Transmission belongs to the Pivot Switchblade model. Pivot launched 108 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Pivot Switchblade RIDE LIKE A PRO 2023 is the cheapest bike model and costs 5899$. Pivot Switchblade Team XX1 AXS 2023 is the most expensive one and costs 11799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 8699$. In conclusion, this bike price is 214.95% higher than the price of the average Trail bike.
Switchblade Pro X0 Eagle Transmission components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Factory FLOATX model, with a travel of 142mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Switchblade Pro X0 Eagle Transmission are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Pivot Switchblade Pro X0 Eagle Transmission bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Switchblade Pro X0 Eagle Transmission. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
