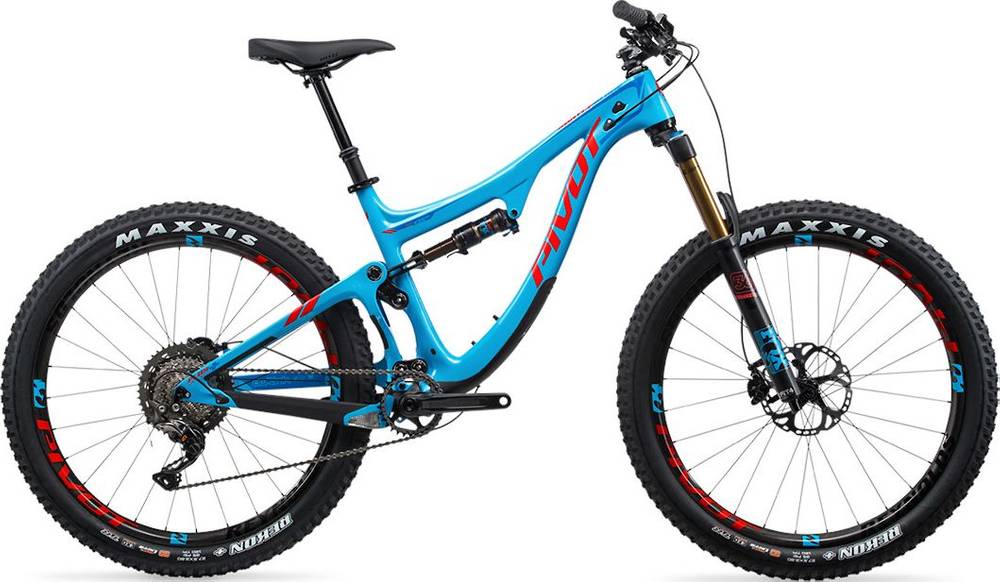

Pivot Switchblade PRO XT/XTR 1x 29 2018
2018 Mountain
Estimate price |
6,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4, Kashima, Boost
Rear Shock
FOX Float Factory DPS EVOL, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rear Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rims
DT Swiss M1700 29, 30mm width
Spokes
DT Swiss
Tires
Front: Maxxis Minion DHF, 2.5” TR 3C EXO MaxxTerra, Rear: Maxxis Minion DHR II, 2.4” TR 3C EXO MaxxTerra
Brakes
Brakes
Shimano XT M8000
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
WTB Hightail (XS-S), WTB Vigo Race (M-XL)
Seatpost
FOX Transfer (LEV Integra for XS-S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm |
| Stack | 602.2 mm | 607.3 mm | 617.2 mm | 622.3 mm | 632.2 mm |
| Reach | 392.2 mm | 412.3 mm | 442.2 mm | 462.3 mm | 487.2 mm |
| Top Tube Length | 557.3 mm | 584 mm | 617 mm | 637.3 mm | 662.7 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° |
| Head Tube Length | 85.1 mm | 89.9 mm | 101.6 mm | 107.9 mm | 119.9 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1113 mm | 1135 mm | 1169 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 685 mm | 707 mm | 711 mm | 713 mm | 733 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Switchblade PRO XT/XTR 1x 29 belongs to the Pivot Switchblade model. Pivot launched 108 bikes of this model so far. You can easily view all of the Pivot Switchblade bikes models from 2018, here.
Model range prices
Pivot Switchblade RACE XT 1x 29 2018 is the most economical model, with a starting price of 5099$. Pivot Switchblade TEAM XTR Di2 2x 27.5+ 2018 on the other hand costs 10199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 6399$. Doing a quick comparison, we notice that Switchblade PRO XT/XTR 1x 29 price is 131.68% more expensive than the average cost of a Trail bike.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Switchblade PRO XT/XTR 1x 29 has a rear shock with a travel of 135mm. The model FOX Float Factory DPS EVOL is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Switchblade PRO XT/XTR 1x 29 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Switchblade PRO XT/XTR 1x 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Switchblade PRO XT/XTR 1x 29 includes a dropper post. Therefore, climbing or descending will be a breeze.
