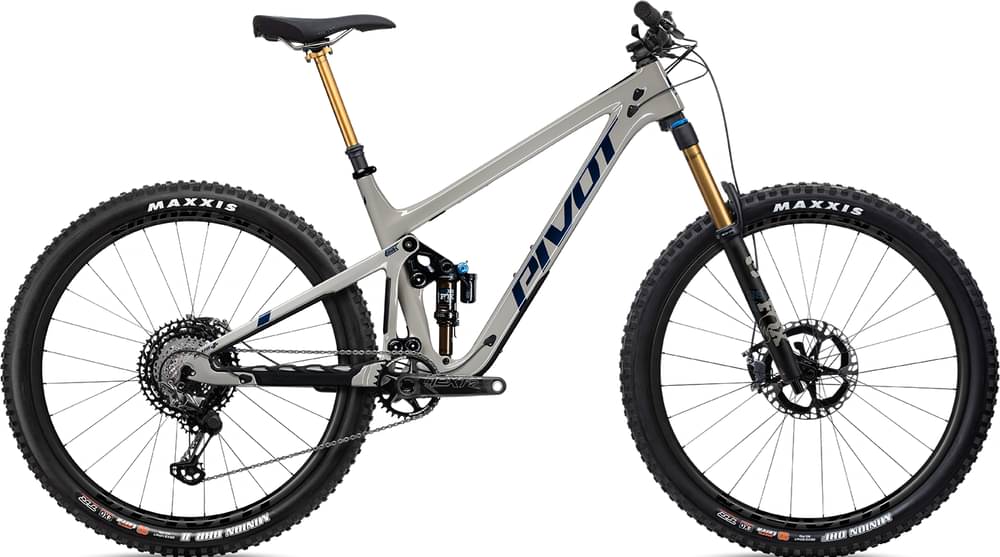

Pivot Switchblade Pro XT/XTR w/ Fox Live Valve w/ Carbon Wheels 2021
2021 Mountain
Estimate price |
10,949$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 142mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 189cm
LG Low
179cm - 189cm
XL High
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Factory Live 36 29", 44mm offset, FIT LIVE - 160mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss XMC1501 w/ DT Swiss 240 hub EXP 36t Star Ratchet 30mm - 29"15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano XT M8120 4-piston
Disk Rotors
Shimano XT CenterLock - 203mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), 800mm (XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Pro Vigo (MD-XL)
Seatpost
Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.41 mm | 1.43 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm |
| Stack | 600 mm | 604 mm | 605 mm | 608 mm | 615 mm | 619 mm | 621 mm | 624 mm | 632 mm | 635 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 454 mm | 449 mm | 469 mm | 464 mm | 489 mm | 484 mm |
| Top Tube Length | 562 mm | 563 mm | 584 mm | 586 mm | 613 mm | 614 mm | 630 mm | 632 mm | 654 mm | 655 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 85 mm | 85 mm | 90 mm | 90 mm | 102 mm | 102 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm |
| Wheelbase | 1140 mm | 1141 mm | 1162 mm | 1163 mm | 1186 mm | 1187 mm | 1209 mm | 1210 mm | 1234 mm | 1235 mm |
| Bottom Bracket Drop | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm |
| Standover Height | 648 mm | 642 mm | 667 mm | 662 mm | 693 mm | 688 mm | 695 mm | 690 mm | 700 | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
About this model
Switchblade Pro XT/XTR w/ Fox Live Valve w/ Carbon Wheels completes the Pivot Switchblade model. Pivot released 108 bikes variations of this model so far. Take a sneak peek at all Pivot Switchblade bikes models from 2021, by clicking here.
Model range prices
Pivot Switchblade Race XT 2021 is the cheapest bike model and costs 5999$. Pivot Switchblade Team XX1 AXS w/ Fox Live Valve 2021 is the most expensive one and costs 13399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Pivot released this model in 2021, its price was 10949$. Comparing this to the average Trail bike price, we see that the price is 296.42% higher.
Switchblade Pro XT/XTR w/ Fox Live Valve w/ Carbon Wheels components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Factory Live Valve rear shock model, which has a travel of 142mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Switchblade Pro XT/XTR w/ Fox Live Valve w/ Carbon Wheels are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Switchblade Pro XT/XTR w/ Fox Live Valve w/ Carbon Wheels comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Pivot Switchblade Pro XT/XTR w/ Fox Live Valve w/ Carbon Wheels bike has 10 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
