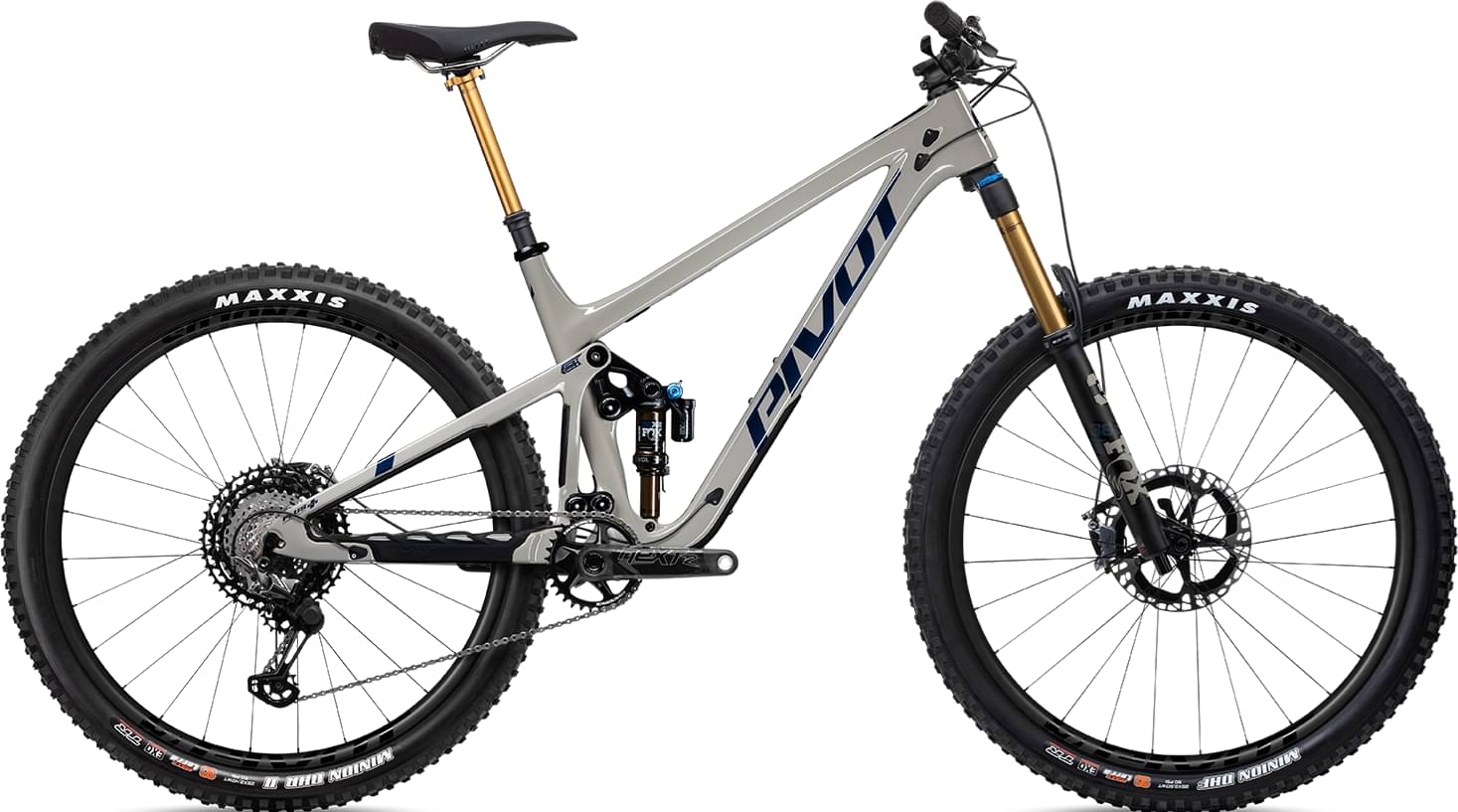

Pivot SWITCHBLADE Race X01 2022
2022 Mountain
Estimate price |
8,028$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 189cm
LG Low
179cm - 189cm
XL High
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Performance 36 29", 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance FLOATX
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM Descendant 7k Eagle DUB 32t
Chain
SRAM GX Eagle 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM Code R 4-piston
Disk Rotors
SRAM Centerline 6-bolt - 200mmSRAM Centerline 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm (XS-LG), 800mm (XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Race High Tail Trail (XS, SM), Phoenix WTB Race Vigo (MD-XL)
Seatpost
Fox Transfer Performance Elite 125mm (XS), 150mm (SM), 175mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.41 mm | 1.43 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm |
| Stack | 600 mm | 604 mm | 605 mm | 608 mm | 615 mm | 619 mm | 621 mm | 624 mm | 632 mm | 635 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 454 mm | 449 mm | 469 mm | 464 mm | 489 mm | 484 mm |
| Top Tube Length | 562 mm | 563 mm | 584 mm | 586 mm | 613 mm | 614 mm | 630 mm | 632 mm | 654 mm | 655 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 85 mm | 85 mm | 90 mm | 90 mm | 102 mm | 102 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm |
| Wheelbase | 1140 mm | 1141 mm | 1162 mm | 1163 mm | 1186 mm | 1187 mm | 1209 mm | 1210 mm | 1234 mm | 1235 mm |
| Bottom Bracket Drop | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm |
| Standover Height | 648 mm | 642 mm | 667 mm | 662 mm | 693 mm | 688 mm | 695 mm | 690 mm | 700 | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
Model Overview
SWITCHBLADE Race X01 completes the Pivot Switchblade model. 108 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Pivot SWITCHBLADE Race XT 2022 is the cheapest bike model and costs 7113$. Pivot SWITCHBLADE Team XX1 AXS w/ Fox Live Valve 2022 is the most expensive one and costs 15236$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 7431$. Comparing this to the average Enduro bike price, we see that the price is 106.47% more expensive.
Overview of components
Fork
The SWITCHBLADE Race X01 comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Pivot SWITCHBLADE Race X01 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SWITCHBLADE Race X01 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 10 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
