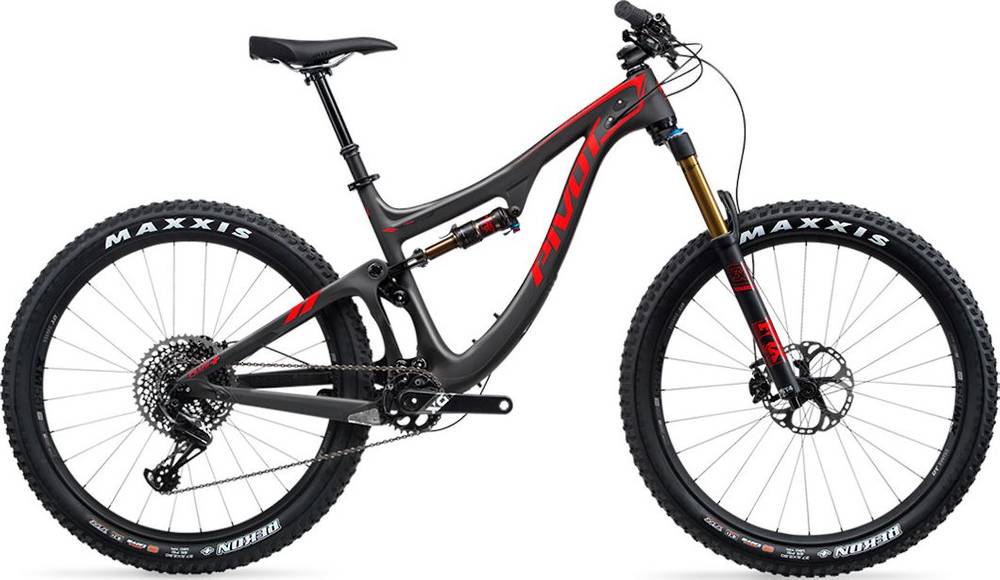

Pivot Switchblade RACE XT 1x 27.5+ 2018
2018 Mountain
Estimate price |
5,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Performance, Boost
Rear Shock
FOX Performance DPS
Drivetrain
Rear Derailleur
Shimano XT, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Sun Ringle Duroc 40 Comp 27.5+, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rear Hub
Sun Ringle Duroc 40 Comp 27.5+, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rims
Sun Ringle Duroc 40 Comp 27.5+
Spokes
Sun Ringle Duroc 40 Comp 27.5+
Tires
Maxxis Rekon, 2.8" TR 3C EXO MaxxTerra
Brakes
Brakes
Shimano SLX M7000
Brake Levers
Shimano SLX M7000
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Handlebar
Phoenix Race, aluminum, 35mm diameter, 750mm width
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
WTB Hightail (XS-S), WTB Vigo Race (M-XL)
Seatpost
FOX Transfer (LEV Integra for XS-S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.44 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 337.1 mm | 337.1 mm | 337.1 mm | 337.1 mm | 337.1 mm |
| Stack | 607.6 mm | 612.4 mm | 623.6 mm | 629.7 mm | 640.9 mm |
| Reach | 382.3 mm | 402.4 mm | 432.3 mm | 452.4 mm | 477.3 mm |
| Top Tube Length | 557.3 mm | 584 mm | 617 mm | 637.3 mm | 662.7 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85.1 mm | 89.9 mm | 101.6 mm | 107.9 mm | 119.9 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1117 mm | 1139 mm | 1174 mm | 1196 mm | 1226 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 683 mm | 704 mm | 710 mm | 711 mm | 734 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Switchblade RACE XT 1x 27.5+ belongs to the Pivot Switchblade model. There are 108 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Pivot Switchblade RACE XT 1x 29 2018 is the most affordable bike of this model and has a price of 5099$. On the other hand, Pivot Switchblade TEAM XTR Di2 2x 27.5+ 2018, is the most expensive and costs 10199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Pivot Switchblade RACE XT 1x 27.5+ price was 5099$. Doing a quick comparison, we notice that Switchblade RACE XT 1x 27.5+ price is 84.61% higher than the average cost of a Trail bike.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Pivot Switchblade RACE XT 1x 27.5+ bike has the FOX Performance DPS model installed, and has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Switchblade RACE XT 1x 27.5+ are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Switchblade RACE XT 1x 27.5+ comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Switchblade RACE XT 1x 27.5+ comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
