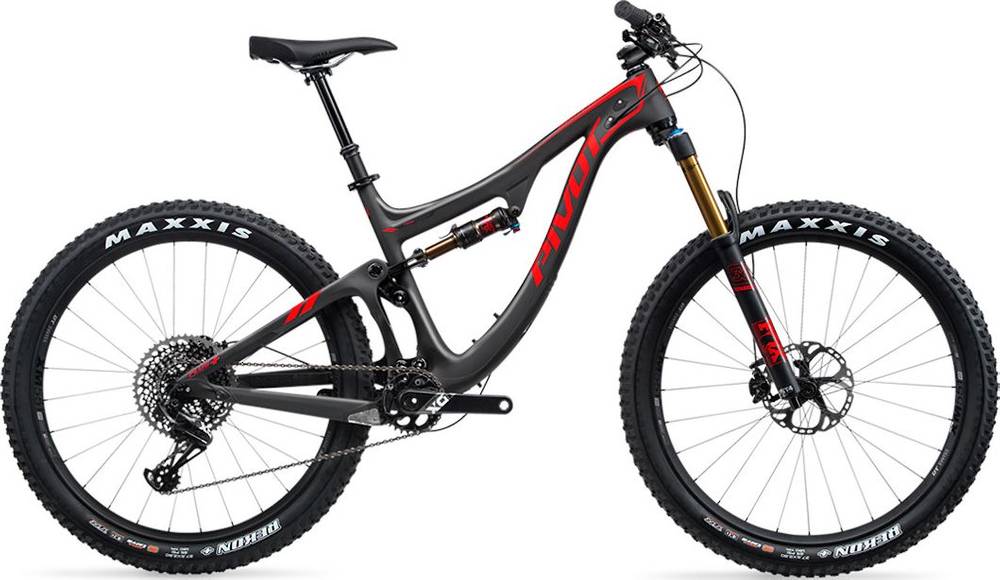

Pivot Switchblade TEAM XTR 1x 29 2018
2018 Mountain
Estimate price |
8,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4, Kashima, Boost
Rear Shock
FOX Float Factory DPS EVOL, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rear Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rims
Reynolds Blacklabel Enduro 29, 28mm inner width
Spokes
Reynolds Blacklabel
Tires
Front: Maxxis Minion DHF, 2.5” TR 3C EXO MaxxTerra, Rear: Maxxis Minion DHR II, 2.4” TR 3C EXO MaxxTerra
Brakes
Brakes
Shimano XTR M9020
Brake Levers
Shimano XTR M9020
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
WTB Hightail (XS-S), WTB Vigo Team (M-XL)
Seatpost
FOX Transfer (LEV Integra for XS-S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm |
| Stack | 602.2 mm | 607.3 mm | 617.2 mm | 622.3 mm | 632.2 mm |
| Reach | 392.2 mm | 412.3 mm | 442.2 mm | 462.3 mm | 487.2 mm |
| Top Tube Length | 557.3 mm | 584 mm | 617 mm | 637.3 mm | 662.7 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° | 67.25 ° |
| Head Tube Length | 85.1 mm | 89.9 mm | 101.6 mm | 107.9 mm | 119.9 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1113 mm | 1135 mm | 1169 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 685 mm | 707 mm | 711 mm | 713 mm | 733 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Switchblade TEAM XTR 1x 29 is a Pivot Switchblade model. Pivot launched 108 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Pivot Switchblade RACE XT 1x 29 2018 is the cheapest bike model and costs 5099$. Pivot Switchblade TEAM XTR Di2 2x 27.5+ 2018 is the most expensive one and costs 10199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8399$. Comparing the average cost of a Trail bike to this one, you will see that Switchblade TEAM XTR 1x 29 price is 204.09% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float Factory DPS EVOL rear shock model, which has a travel of 135mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Switchblade TEAM XTR 1x 29 2018 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Switchblade TEAM XTR 1x 29 comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Switchblade TEAM XTR 1x 29. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
