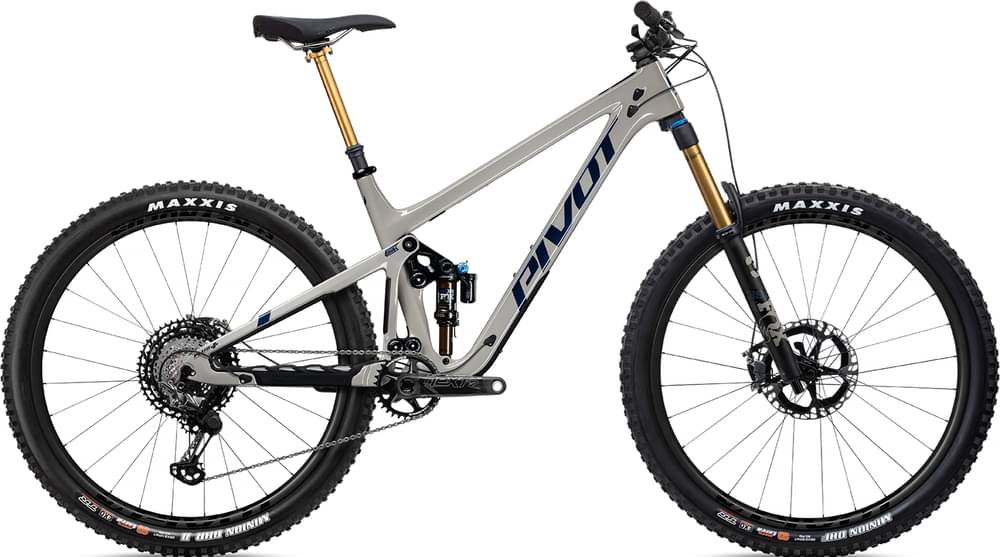

Pivot Switchblade Team XTR 2021
2021 Mountain
Estimate price |
9,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 142mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 189cm
LG Low
179cm - 189cm
XL High
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory Float DPX2
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next R 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
DT Swiss XMC1501 w/ DT Swiss 240 hub EXP 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-Piston
Disk Rotors
Shimano XTR CenterLock - 203mmShimano XTR CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), 800mm (XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (XS, SM), Phoenix WTB Team Vigo (MD-XL)
Seatpost
Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.41 mm | 1.43 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm | 352 mm | 346 mm |
| Stack | 600 mm | 604 mm | 605 mm | 608 mm | 615 mm | 619 mm | 621 mm | 624 mm | 632 mm | 635 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 454 mm | 449 mm | 469 mm | 464 mm | 489 mm | 484 mm |
| Top Tube Length | 562 mm | 563 mm | 584 mm | 586 mm | 613 mm | 614 mm | 630 mm | 632 mm | 654 mm | 655 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 85 mm | 85 mm | 90 mm | 90 mm | 102 mm | 102 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm | 424 mm | 425 mm |
| Wheelbase | 1140 mm | 1141 mm | 1162 mm | 1163 mm | 1186 mm | 1187 mm | 1209 mm | 1210 mm | 1234 mm | 1235 mm |
| Bottom Bracket Drop | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm | 22 mm | 28 mm |
| Standover Height | 648 mm | 642 mm | 667 mm | 662 mm | 693 mm | 688 mm | 695 mm | 690 mm | 700 | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
About this model
Switchblade Team XTR is a Pivot Switchblade model. Pivot launched 108 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Switchblade Race XT 2021 has a starting price of 5999$. Pivot Switchblade Team XX1 AXS w/ Fox Live Valve 2021 on the other hand is the most expensive at 13399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2021, its price was 9799$. Doing a quick comparison, we notice that Switchblade Team XTR price is 254.78% higher than the average cost of a Trail bike.
Switchblade Team XTR components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Factory Float DPX2 rear shock model, which has a travel of 142mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Switchblade Team XTR 2021 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Switchblade Team XTR. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
