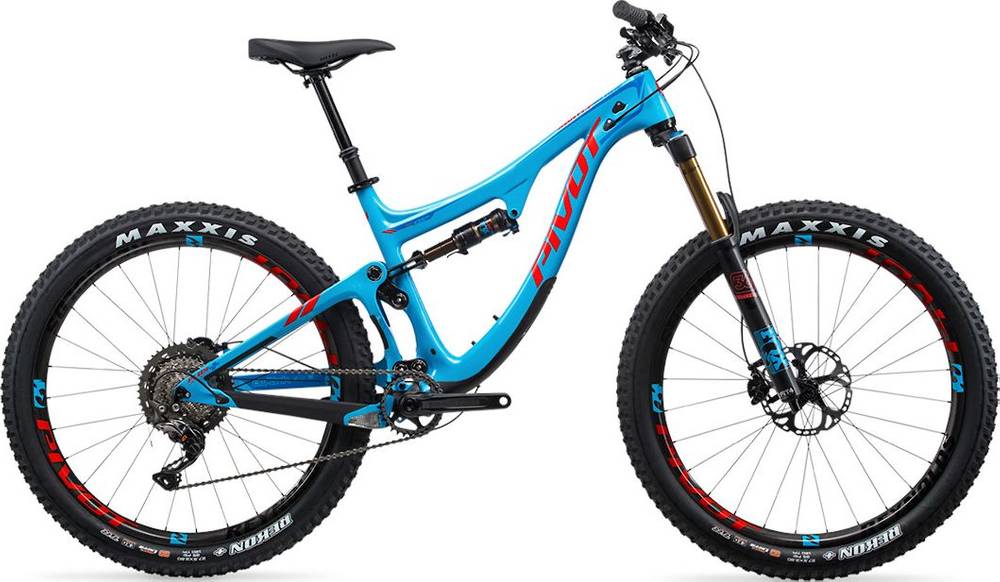

Pivot Switchblade TEAM XTR 2x 27.5+ 2018
2018 Mountain
Estimate price |
8,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4, Kashima, Boost
Rear Shock
FOX Float Factory DPS EVOL, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
Shimano XTR, side swing
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XTR M9000, 11-40 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rear Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rims
Reynolds Blacklabel 27.5+, 40mm inner width
Spokes
Reynolds Blacklabel
Tires
Maxxis Rekon, 2.8" TR 3C EXO MaxxTerra
Brakes
Brakes
Shimano XTR M9020
Brake Levers
Shimano XTR M9020
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing
Seat
Saddle
WTB Hightail (XS-S), WTB Vigo Team (M-XL)
Seatpost
FOX Transfer (LEV Integra for XS-S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.44 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 337.1 mm | 337.1 mm | 337.1 mm | 337.1 mm | 337.1 mm |
| Stack | 607.6 mm | 612.4 mm | 623.6 mm | 629.7 mm | 640.9 mm |
| Reach | 382.3 mm | 402.4 mm | 432.3 mm | 452.4 mm | 477.3 mm |
| Top Tube Length | 557.3 mm | 584 mm | 617 mm | 637.3 mm | 662.7 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85.1 mm | 89.9 mm | 101.6 mm | 107.9 mm | 119.9 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1117 mm | 1139 mm | 1174 mm | 1196 mm | 1226 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 683 mm | 704 mm | 710 mm | 711 mm | 734 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Switchblade TEAM XTR 2x 27.5+ is a Pivot Switchblade model. Pivot released 108 bikes variations of this model so far. You can easily view all of the Pivot Switchblade bikes models from 2018, here.
Model range prices
The most economical model, the Pivot Switchblade RACE XT 1x 29 2018 has a starting price of 5099$. Pivot Switchblade TEAM XTR Di2 2x 27.5+ 2018 on the other hand is the most expensive at 10199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Pivot Switchblade TEAM XTR 2x 27.5+ price was 8899$. Comparing the average cost of a Trail bike to this one, you will see that Switchblade TEAM XTR 2x 27.5+ price is 222.19% more expensive.
Switchblade TEAM XTR 2x 27.5+ components
Fork
The Switchblade TEAM XTR 2x 27.5+ comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Switchblade TEAM XTR 2x 27.5+ has a rear shock with a travel of 135mm. The model FOX Float Factory DPS EVOL is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Switchblade TEAM XTR 2x 27.5+ bike is equipped with the 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Switchblade TEAM XTR 2x 27.5+ has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Switchblade TEAM XTR 2x 27.5+ comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
