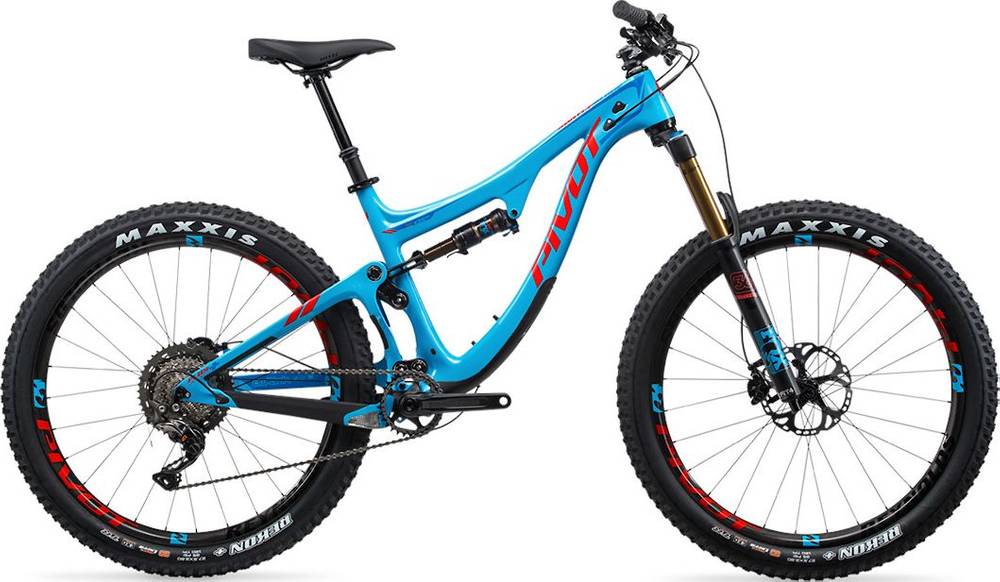

Pivot Switchblade TEAM XTR Di2 1x 27.5+ 2018
2018 Mountain
Estimate price |
9,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XTR Di2, Race Face -
Suspension Full -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4, Kashima, Boost
Rear Shock
FOX Float Factory DPS EVOL, Kashima
Drivetrain
Rear Derailleur
Shimano XTR Di2, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XTR Di2, 11-speed
Cassette
Shimano XTR M8000, 11-46 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rear Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Rims
Reynolds Blacklabel 27.5+, 40mm inner width
Spokes
Reynolds Blacklabel
Tires
Maxxis Rekon, 2.8" TR 3C EXO MaxxTerra
Brakes
Brakes
Shimano XTR M9020
Brake Levers
Shimano XTR M9020
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
WTB Hightail (XS-S), WTB Vigo Team (M-XL)
Seatpost
FOX Transfer (LEV Integra for XS-S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.44 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 337.1 mm | 337.1 mm | 337.1 mm | 337.1 mm | 337.1 mm |
| Stack | 607.6 mm | 612.4 mm | 623.6 mm | 629.7 mm | 640.9 mm |
| Reach | 382.3 mm | 402.4 mm | 432.3 mm | 452.4 mm | 477.3 mm |
| Top Tube Length | 557.3 mm | 584 mm | 617 mm | 637.3 mm | 662.7 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85.1 mm | 89.9 mm | 101.6 mm | 107.9 mm | 119.9 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1117 mm | 1139 mm | 1174 mm | 1196 mm | 1226 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 683 mm | 704 mm | 710 mm | 711 mm | 734 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Switchblade TEAM XTR Di2 1x 27.5+ is part of the Pivot Switchblade model. 108 bikes variations carry this model name so far. Take a sneak peek at all Pivot Switchblade bikes models from 2018, by clicking here.
Model range prices
Pivot Switchblade RACE XT 1x 29 2018 is the most economical model, with a starting price of 5099$. Pivot Switchblade TEAM XTR Di2 2x 27.5+ 2018 on the other hand costs 10199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Pivot Switchblade TEAM XTR Di2 1x 27.5+ price was 9399$. Comparing the average cost of a Trail bike to this one, you will see that Switchblade TEAM XTR Di2 1x 27.5+ price is 240.3% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Pivot Switchblade TEAM XTR Di2 1x 27.5+ bike has the FOX Float Factory DPS EVOL model installed, and has a travel of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Switchblade TEAM XTR Di2 1x 27.5+ model has 27.5″ carbon wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Switchblade TEAM XTR Di2 1x 27.5+ comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Switchblade TEAM XTR Di2 1x 27.5+ comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Pivot model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
