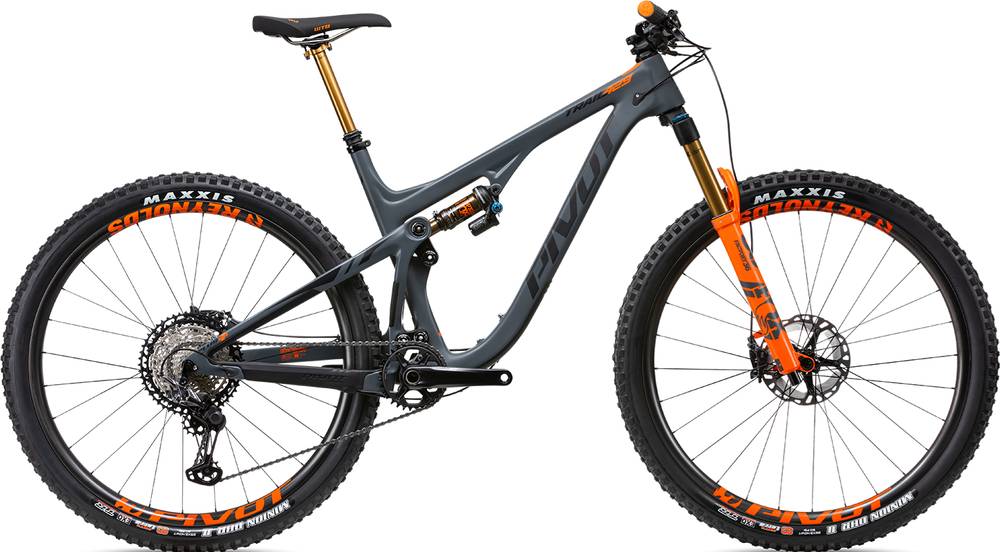

Pivot Trail 429 29″ Pro X01 2020
2020 Mountain
Estimate price |
6,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 34 29", 51mm offset, FIT4 - 130mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-50t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29"
Tires
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Rekon 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM G2 RSC 4-piston
Disk Rotors
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Vigo
Seatpost
KS Rage-i 125mm (XS), Fox Transfer Performance Series 125mm (SM), 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 576 mm | 583 mm | 594 mm | 599 mm | 610 mm |
| Reach | 384 mm | 402 mm | 432 mm | 453 mm | 473 mm |
| Top Tube Length | 544 mm | 575 mm | 608 mm | 631 mm | 653 mm |
| Seat Tube Angle | 75.4 ° | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 359 mm | 397 mm | 428 mm | 460 mm | 497 mm |
| Head Tube Angle | 67 ° | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 84 mm | 89 mm | 102 mm | 109 mm | 119 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1103 mm | 1123 mm | 1156 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 681 mm | 694 mm | 697 mm | 699 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Trail 429 29″ Pro X01 belongs to the Pivot Trail model. Pivot launched 85 bikes of this model so far. Take a sneak peek at all Pivot Trail bikes models from 2020, by clicking here.
Model range prices
Pivot Trail 429 29″ Race XT 2020 is the most economical model, with a starting price of 5099$. Pivot Trail 429 29″ Team XX1 AXS 2020 on the other hand costs 9799$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 6599$. In conclusion, this bike price is 138.92% more expensive than the price of the average Trail bike.
Overview of components
Fork
Pivot Trail 429 29″ Pro X01 2020 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Trail 429 29″ Pro X01 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Pivot Trail 429 29″ Pro X01 bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Pivot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
