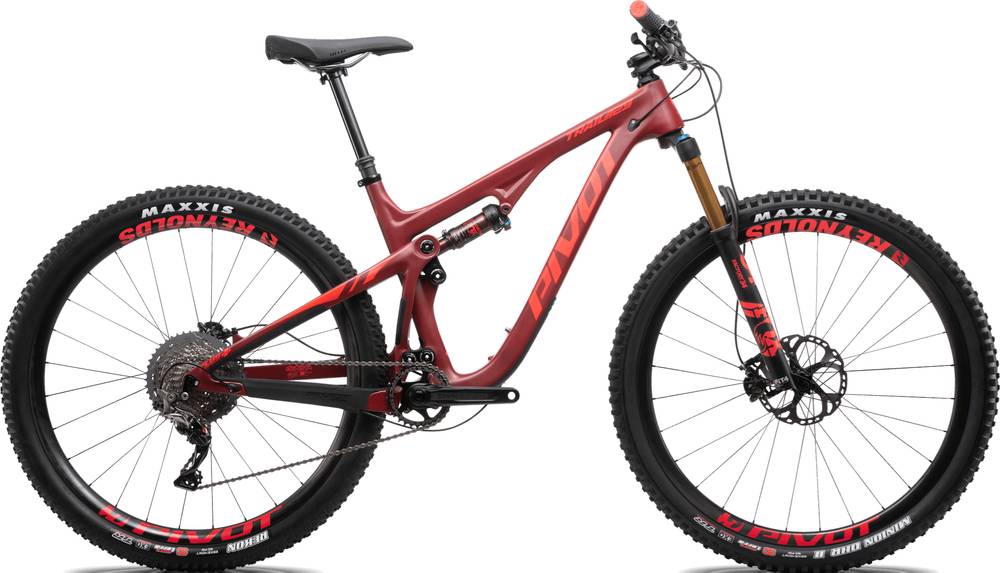

Pivot Trail 429 29″ Pro XT/XTR 12 Speed 2019
2019 Mountain
Estimate price |
6,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 34 29", 51mm offset, FIT4- 130mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
Shimano XTR GS 12-Speed
Shift Levers
Shimano XT M8100 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Aeffect 32t
Chain
Shimano M8100 12-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub, 30mm - 29"
Tires
Maxxis DHRII 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRAMaxxis Rekon 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XT M8120 4-Piston
Disk Rotors
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail - 55mm
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Vigo
Seatpost
KS LEV 125mm (XS), Fox Transfer 125mm (SM), Fox Transfer 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 576 mm | 583 mm | 594 mm | 599 mm | 610 mm |
| Reach | 384 mm | 402 mm | 432 mm | 453 mm | 473 mm |
| Top Tube Length | 544 mm | 575 mm | 608 mm | 631 mm | 653 mm |
| Seat Tube Angle | 75.4 ° | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 359 mm | 397 mm | 428 mm | 460 mm | 497 mm |
| Head Tube Angle | 67 ° | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 84 mm | 89 mm | 102 mm | 109 mm | 119 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1103 mm | 1123 mm | 1156 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 681 mm | 694 mm | 697 mm | 699 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Trail 429 29″ Pro XT/XTR 12 Speed is a Pivot Trail model. Pivot released 85 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pivot Trail 429 27.5″ Plus Race XT 2019 is the cheapest bike model and costs 4899$. Pivot Trail 429 27.5″ Plus Team XX1 AXS 2019 is the most expensive one and costs 9799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 6099$. If we compare this with the average Trail bike cost we notice that the price is 120.82% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Trail 429 29″ Pro XT/XTR 12 Speed model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Trail 429 29″ Pro XT/XTR 12 Speed comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
