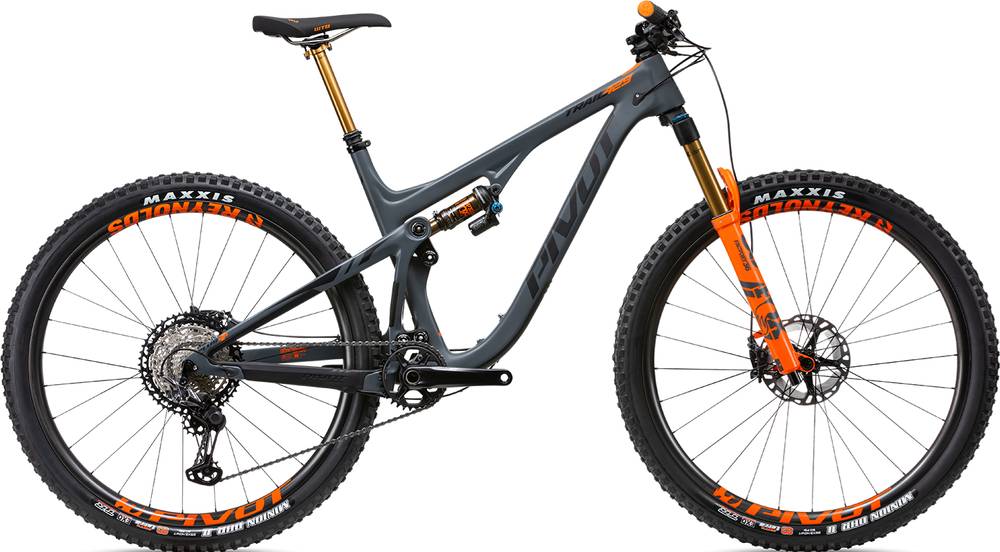

Pivot Trail 429 29″ Race X01 2020
2020 Mountain
Estimate price |
5,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Performance 34 29", 51mm offset, GRIP - 130mm
Rear Shock
Fox Performance Float DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM XG-1275 10-50t
Crank
SRAM Descendant 7k Eagle DUB 32t
Chain
SRAM GX Eagle 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29"
Tires
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Rekon 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM Guide RE 4-piston
Disk Rotors
SRAM Centerline 6-bolt - 180mmSRAM Centerline 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum
Grips
Phoenix Factory Lock-On
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Vigo
Seatpost
KS Rage-i 125mm (XS), Fox Transfer Performance Series 125mm (SM), 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 576 mm | 583 mm | 594 mm | 599 mm | 610 mm |
| Reach | 384 mm | 402 mm | 432 mm | 453 mm | 473 mm |
| Top Tube Length | 544 mm | 575 mm | 608 mm | 631 mm | 653 mm |
| Seat Tube Angle | 75.4 ° | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 359 mm | 397 mm | 428 mm | 460 mm | 497 mm |
| Head Tube Angle | 67 ° | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 84 mm | 89 mm | 102 mm | 109 mm | 119 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1103 mm | 1123 mm | 1156 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 681 mm | 694 mm | 697 mm | 699 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Trail 429 29″ Race X01 is a Pivot Trail model. Pivot released 85 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Trail 429 29″ Race XT 2020 has a starting price of 5099$. Pivot Trail 429 29″ Team XX1 AXS 2020 on the other hand is the most expensive at 9799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2020, its price was 5399$. If we compare this with the average Trail bike cost we notice that the price is 95.47% higher.
Trail 429 29″ Race X01 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Trail 429 29″ Race X01 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Trail 429 29″ Race X01 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Trail 429 29″ Race X01 comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
