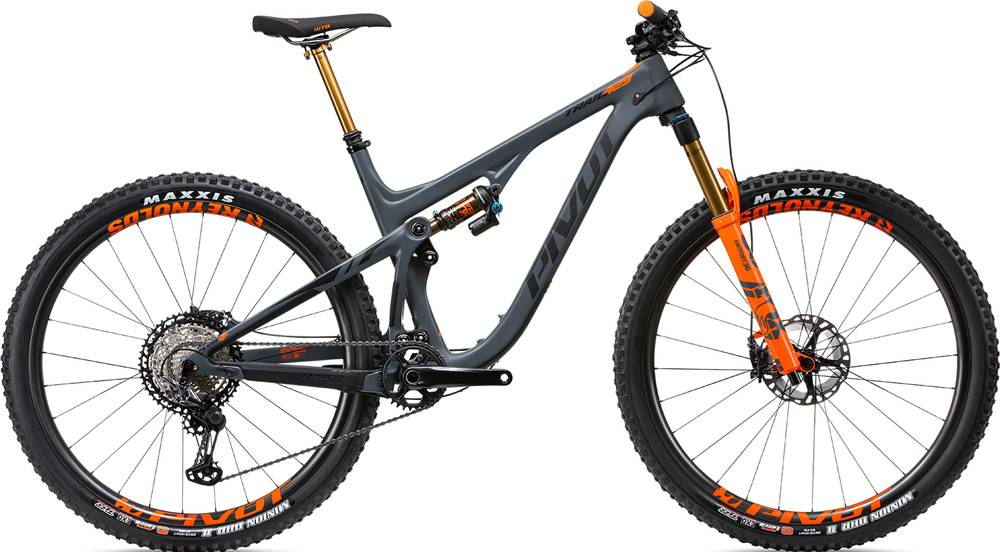

Pivot Trail 429 Limited Edition Enduro Build – Pro XT/XTR 2020
2020 Mountain
Estimate price |
7,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP2 - 140mm
Rear Shock
Fox Factory Float DPX2
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XT M8100 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Shimano XT 8130 32t
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29"
Tires
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XT M8120 4-Piston
Disk Rotors
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Volt Special Edition
Seatpost
Fox Transfer Factory Series 125mm (XS, SM), 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 576 mm | 583 mm | 594 mm | 599 mm | 610 mm |
| Reach | 384 mm | 402 mm | 432 mm | 453 mm | 473 mm |
| Top Tube Length | 544 mm | 575 mm | 608 mm | 631 mm | 653 mm |
| Seat Tube Angle | 75.4 ° | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 359 mm | 397 mm | 428 mm | 460 mm | 497 mm |
| Head Tube Angle | 67 ° | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 84 mm | 89 mm | 102 mm | 109 mm | 119 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1103 mm | 1123 mm | 1156 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 681 mm | 694 mm | 697 mm | 699 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Trail 429 Limited Edition Enduro Build – Pro XT/XTR is a Pivot Trail model. Pivot released 85 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Pivot Trail 429 29″ Race XT 2020 is the cheapest bike model and costs 5099$. Pivot Trail 429 29″ Team XX1 AXS 2020 is the most expensive one and costs 9799$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2020, its price was 7599$. Comparing the average cost of a Trail bike to this one, you will see that Trail 429 Limited Edition Enduro Build – Pro XT/XTR price is 175.13% more expensive.
Overview of components
Fork
Pivot Trail 429 Limited Edition Enduro Build – Pro XT/XTR 2020 bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Pivot Trail 429 Limited Edition Enduro Build – Pro XT/XTR 2020, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trail 429 Limited Edition Enduro Build – Pro XT/XTR comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
