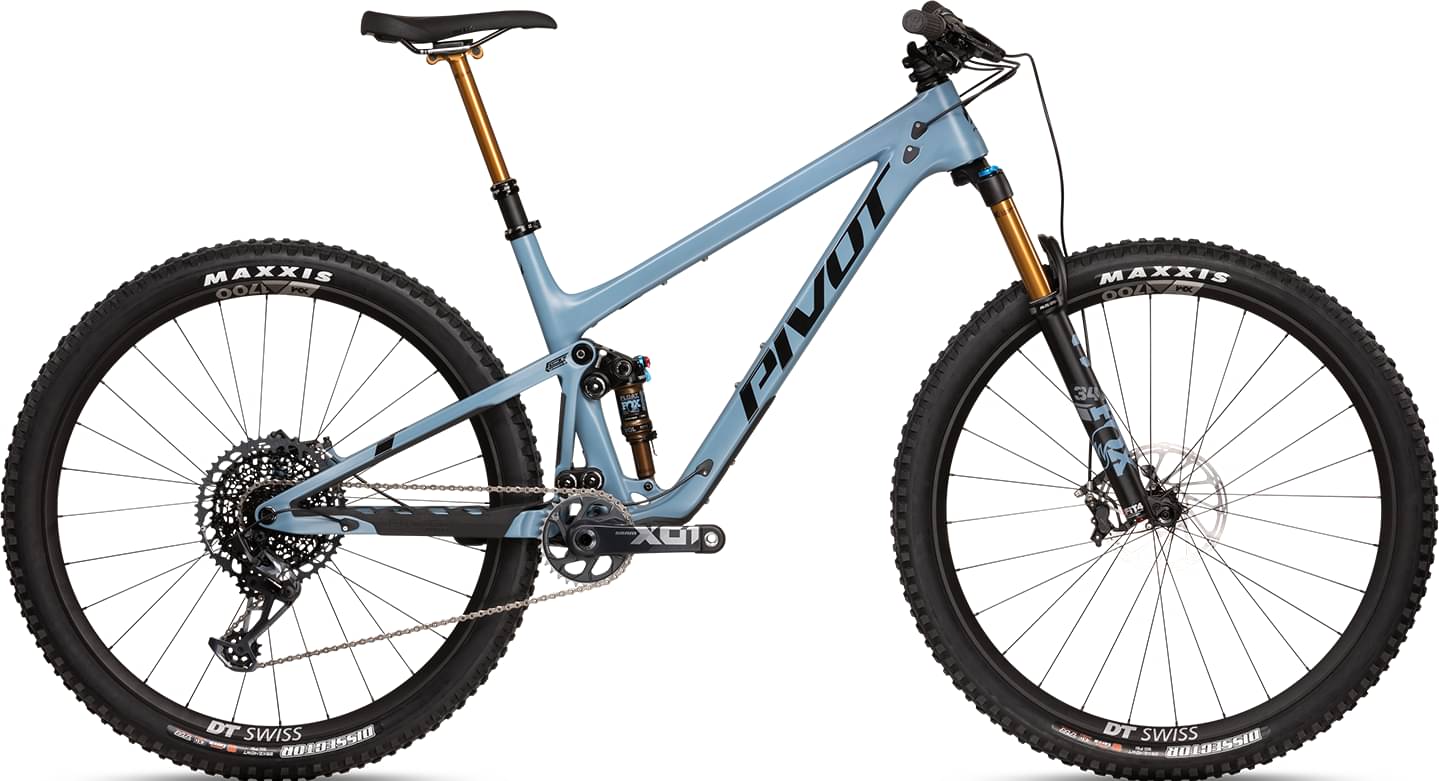

Pivot Trail 429 Pro X01 2022
2022 Mountain
Estimate price |
10,321$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Low
147cm - 164cm
SM Low
161cm - 174cm
MD Low
171cm - 182cm
LG Low
179cm - 189cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 34 29", FIT4 - 130mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29"
15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM G2 RSC 4-piston
Disk Rotors
SRAM Centerline CenterLock - 180mm
SRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD) 175mm (LG) 200mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 699 mm | 723 mm | 758 mm | 775 mm | 800 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 116 mm | 116 mm | 116 mm | 116 mm | 116 mm |
| Stack | 578 mm | 587 mm | 598 mm | 603 mm | 615 mm |
| Reach | 404 mm | 424 mm | 454 mm | 469 mm | 489 mm |
| Top Tube Length | 566 mm | 589 mm | 622 mm | 638 mm | 661 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85 mm | 95 mm | 107 mm | 112 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1122 mm | 1146 mm | 1181 mm | 1198 mm | 1223 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 630 mm | 662 mm | 664 mm | 676 mm | 690 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Trail 429 Pro X01 is a Pivot Trail model. Pivot launched 85 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Pivot TRAIL 429 Race XT 2022 is the most economical model, with a starting price of 5999$. Pivot TRAIL 429 Team XX1 AXS Live 2022 on the other hand costs 13299$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2022, its price was 9555$. Doing a quick comparison, we notice that Trail 429 Pro X01 price is 245.94% higher than the average cost of a Trail bike.
Overview of components
Fork
The Trail 429 Pro X01 comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Trail 429 Pro X01 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Trail 429 Pro X01 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Pivot Trail 429 Pro X01 bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
