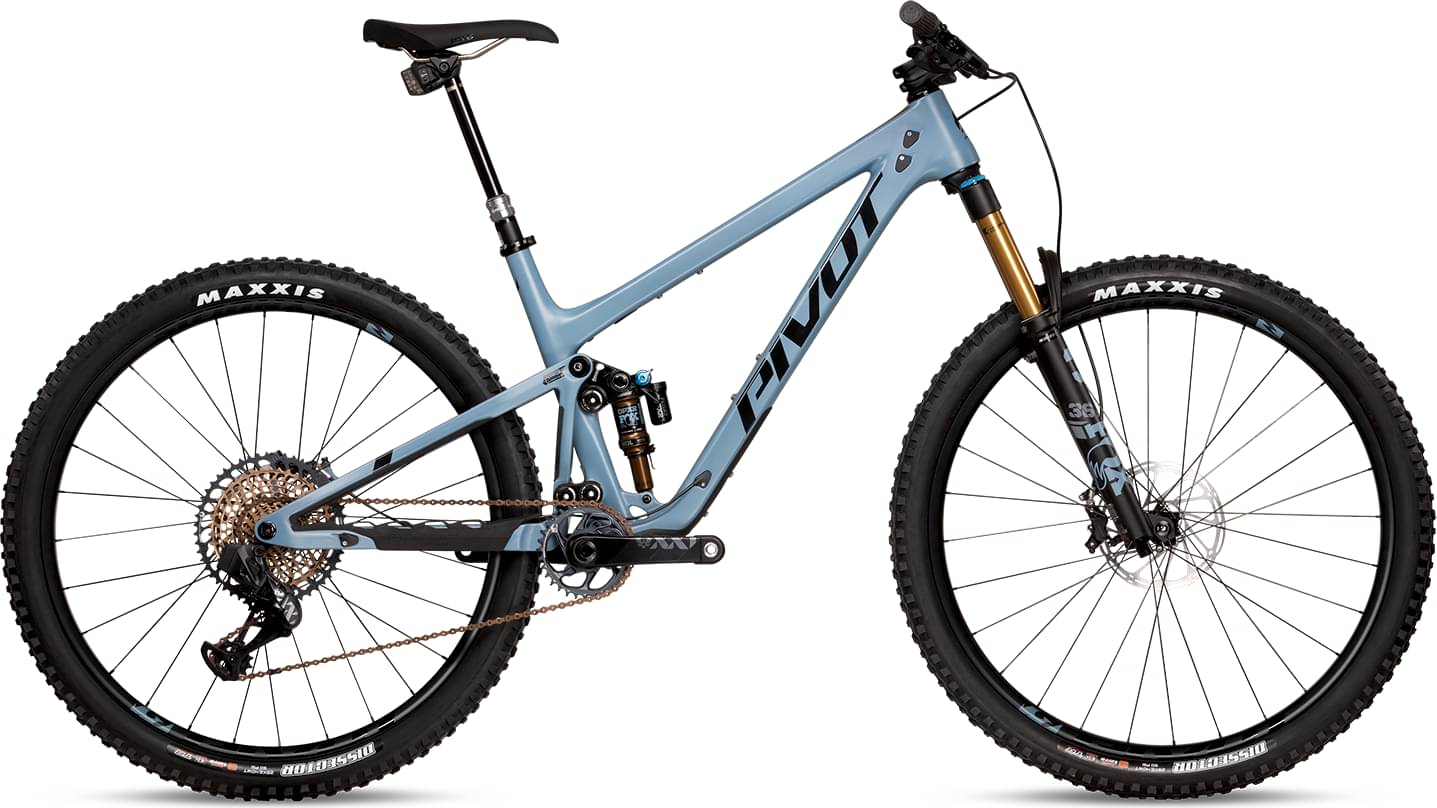

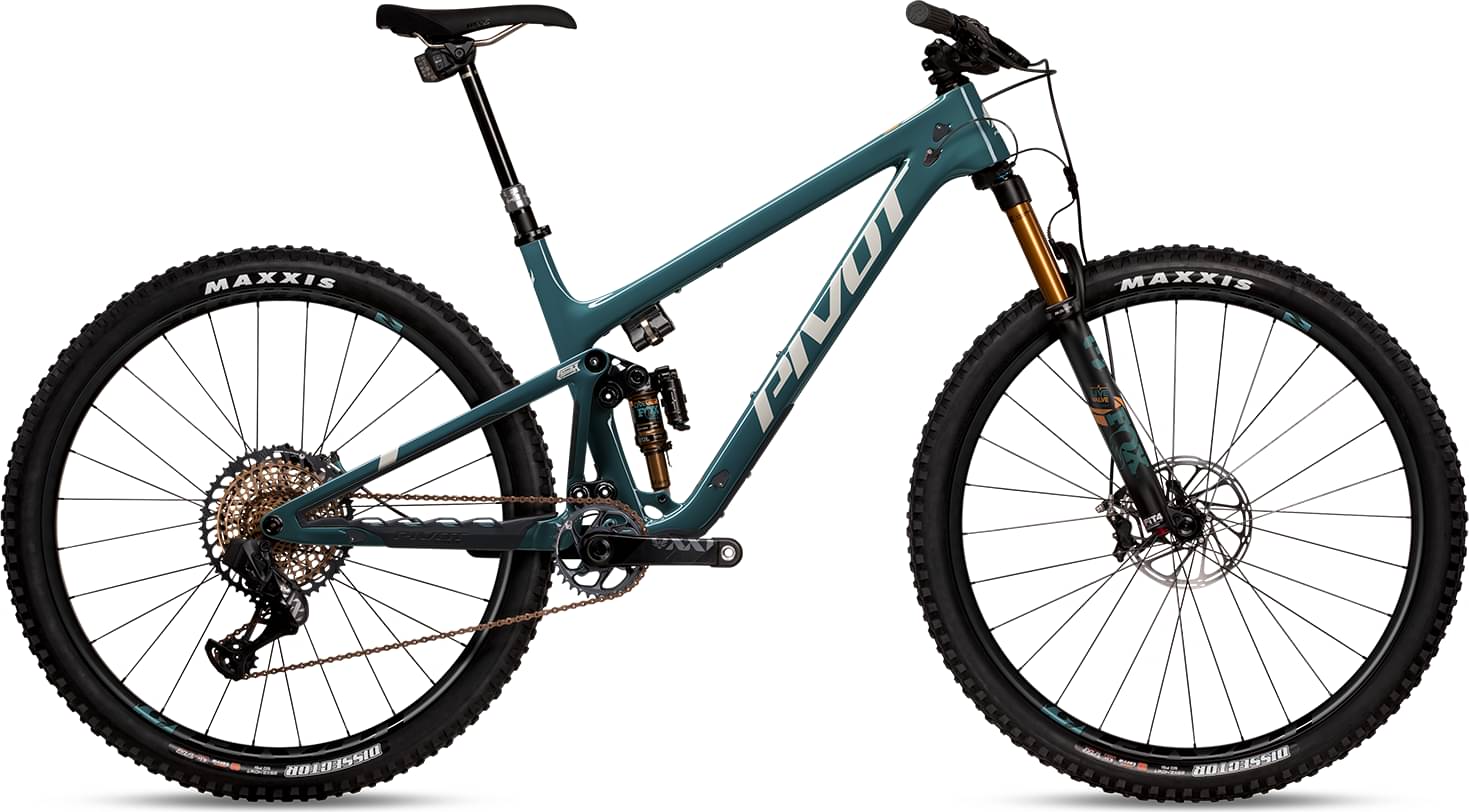

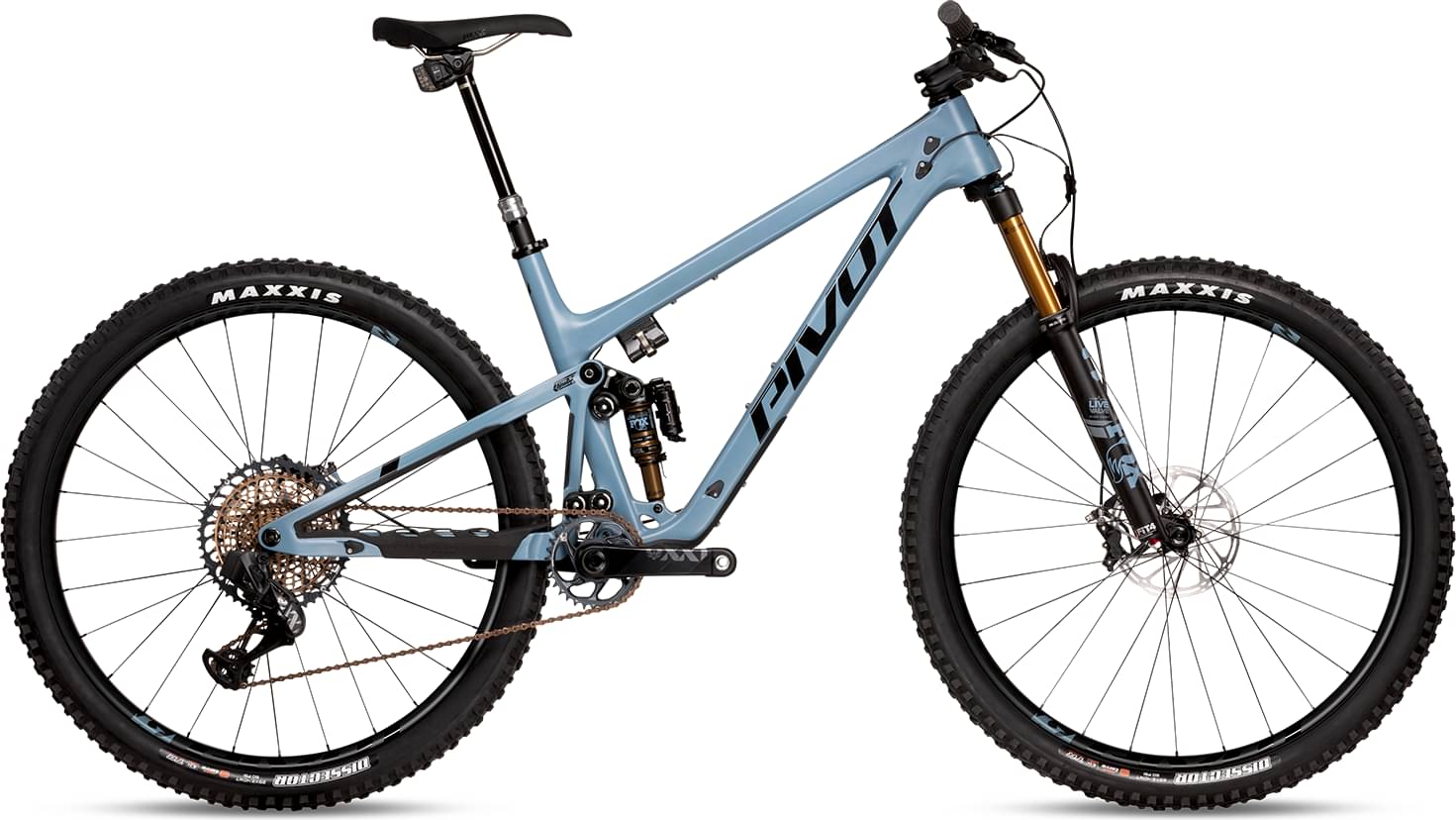

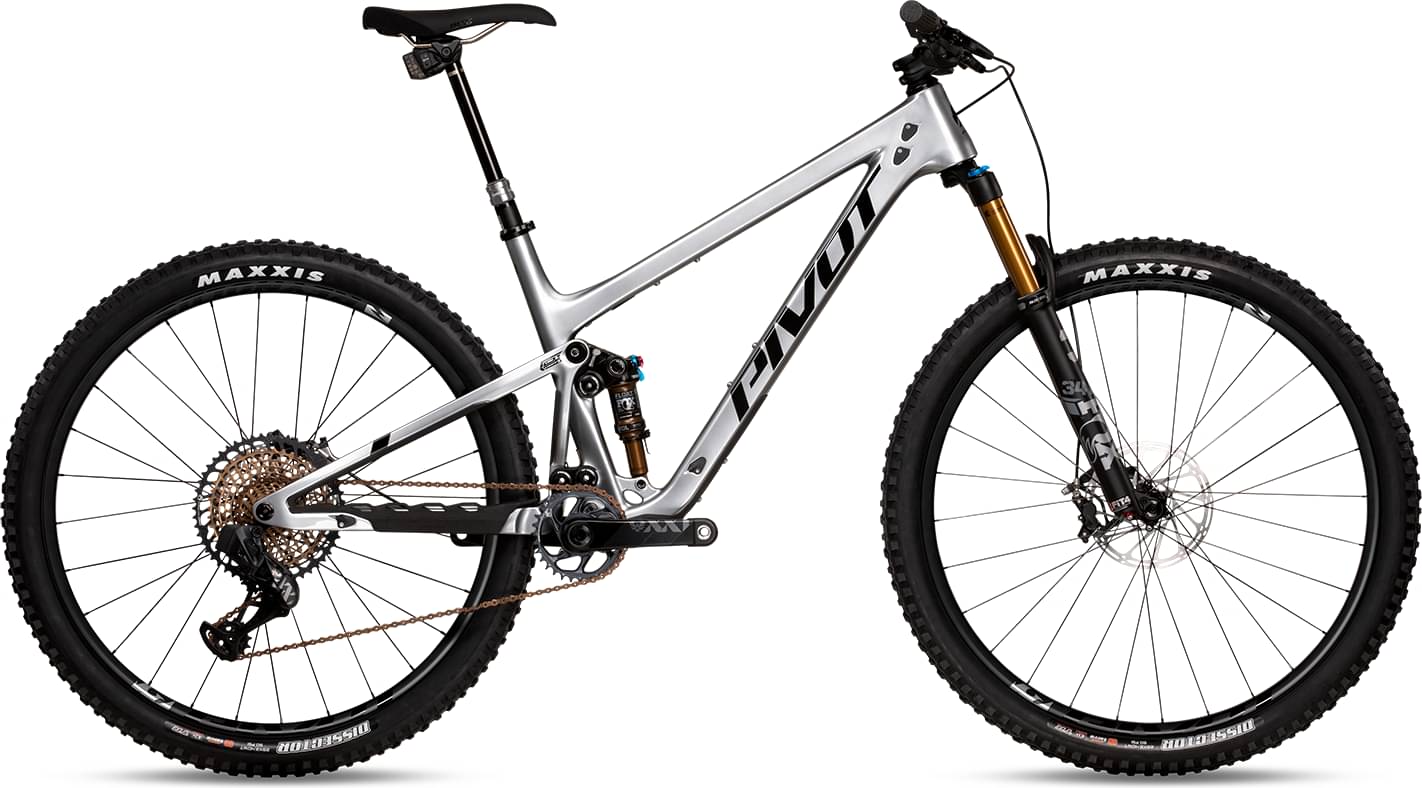

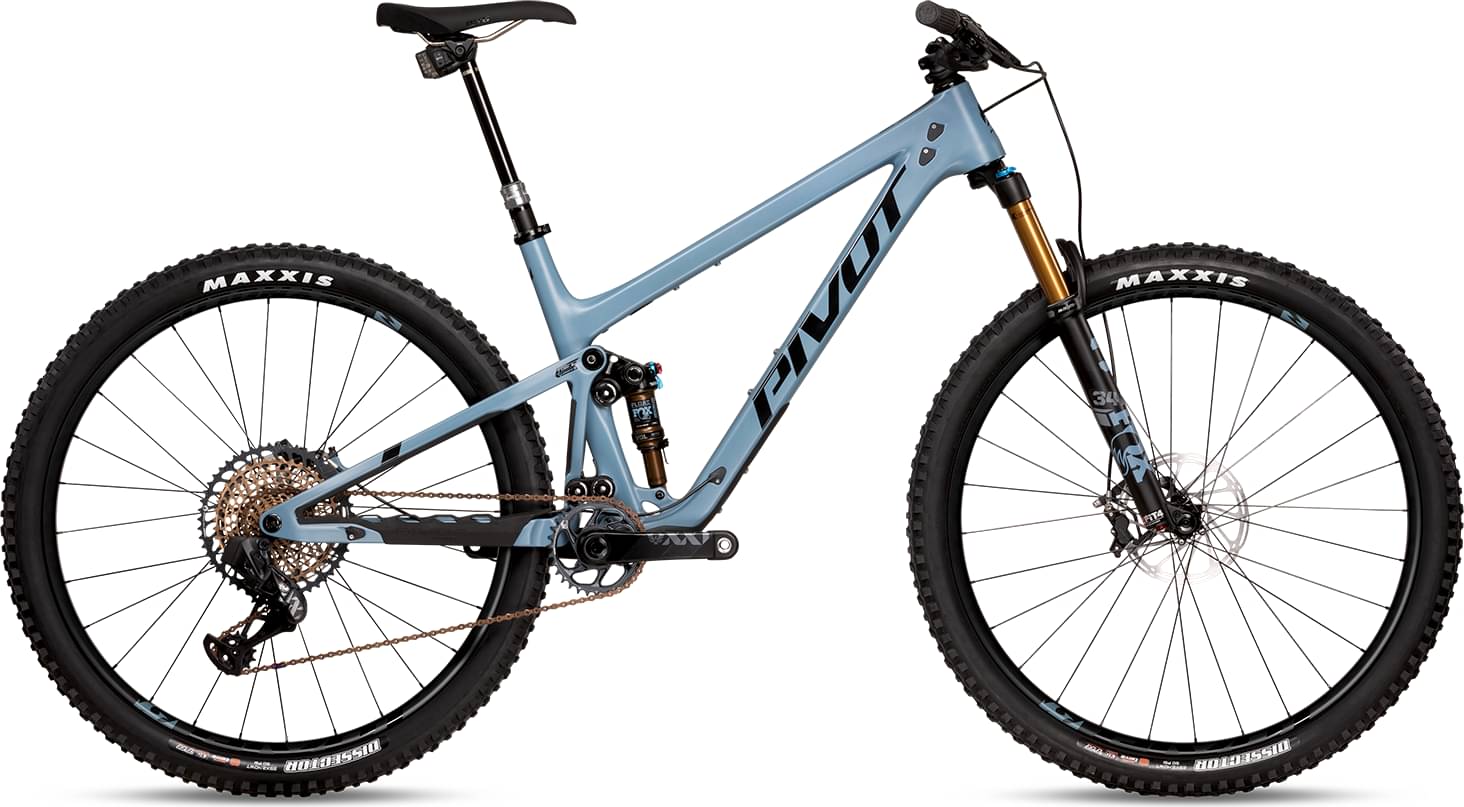

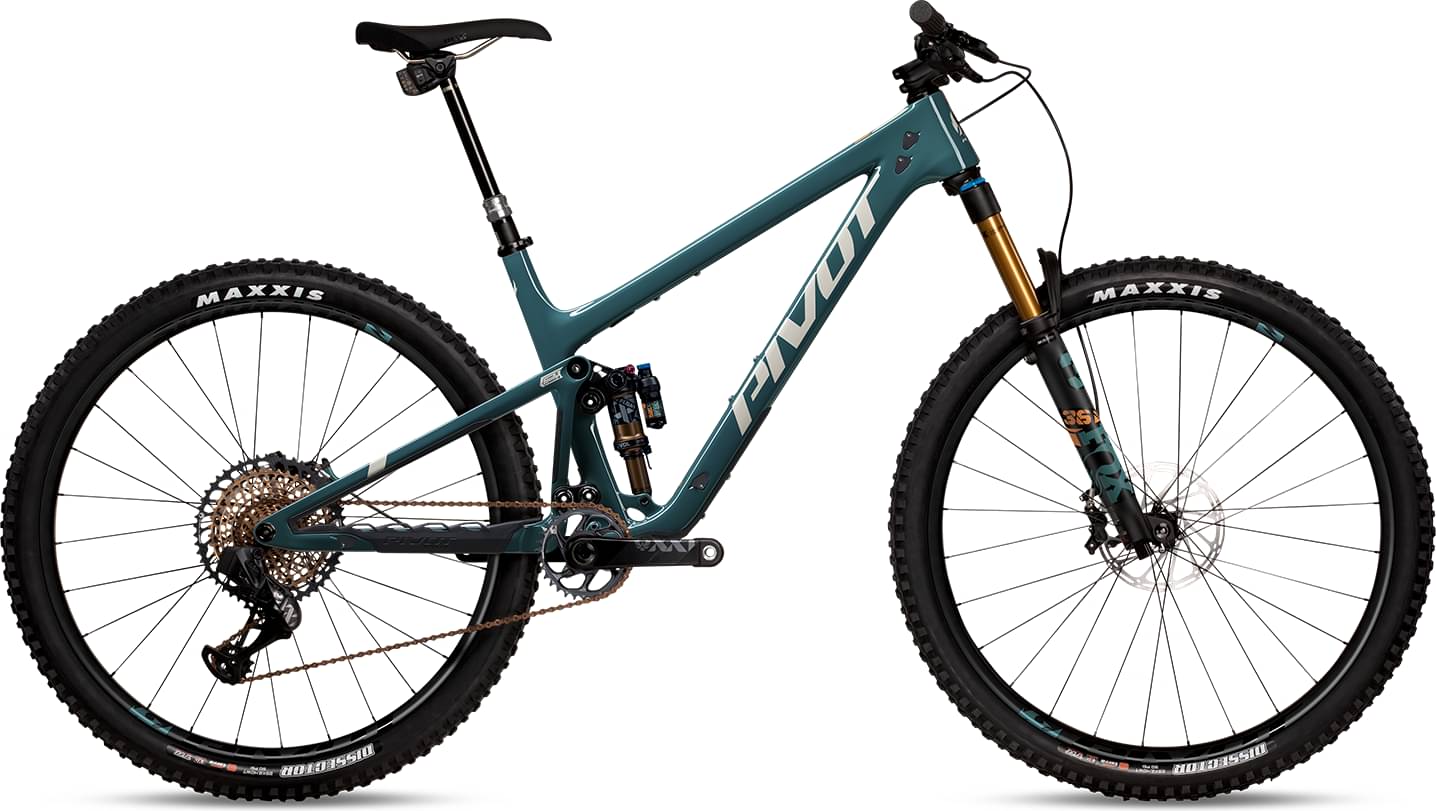

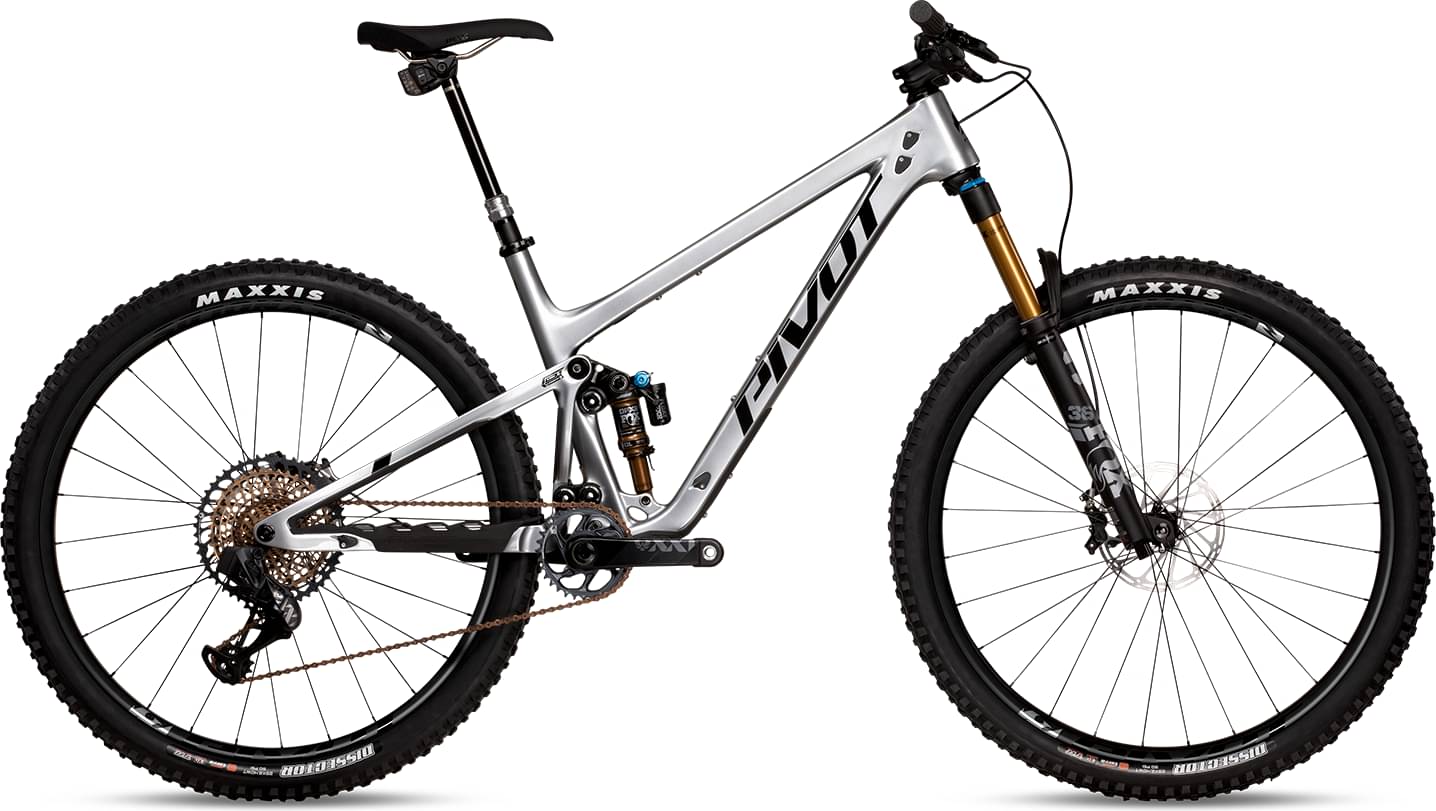

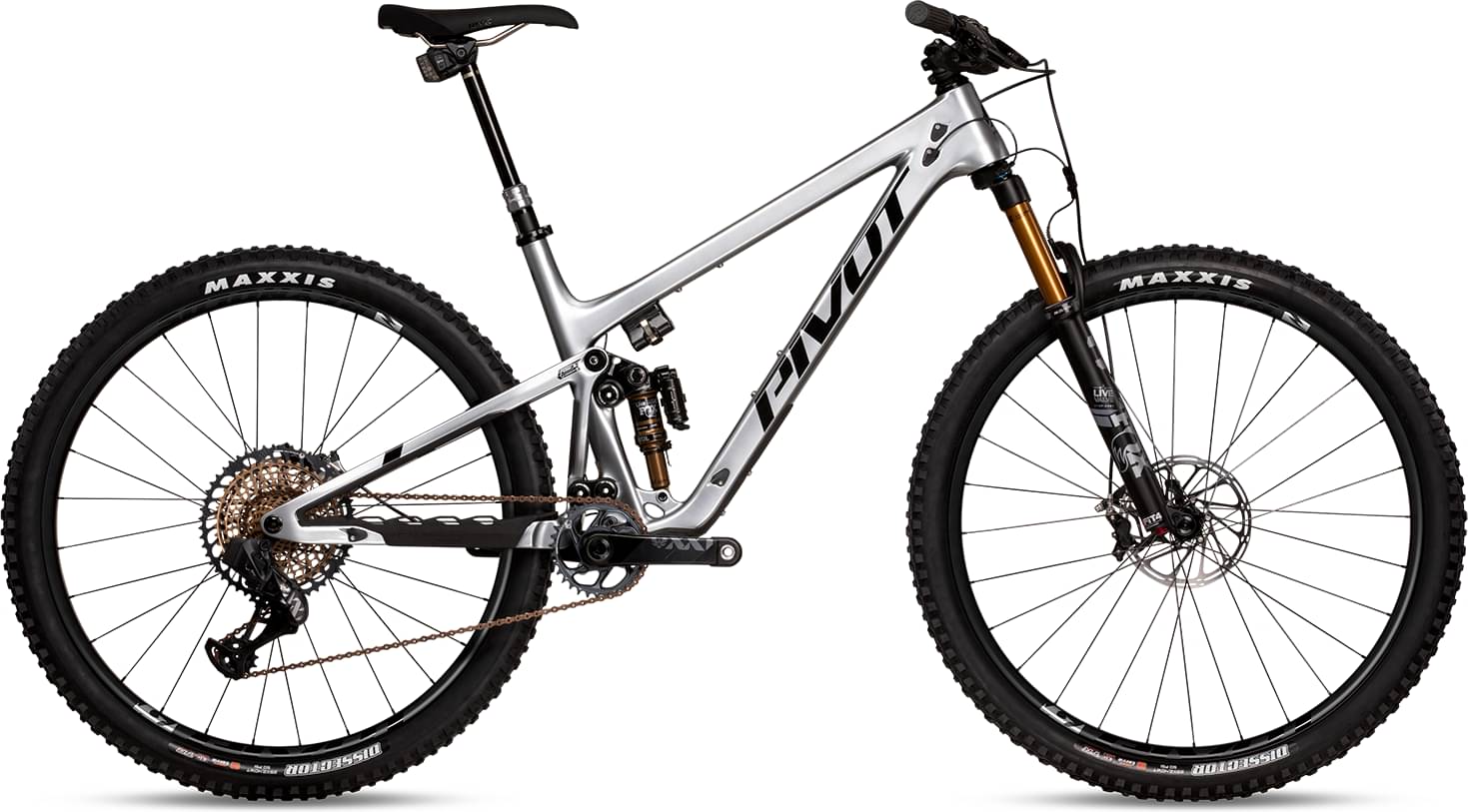

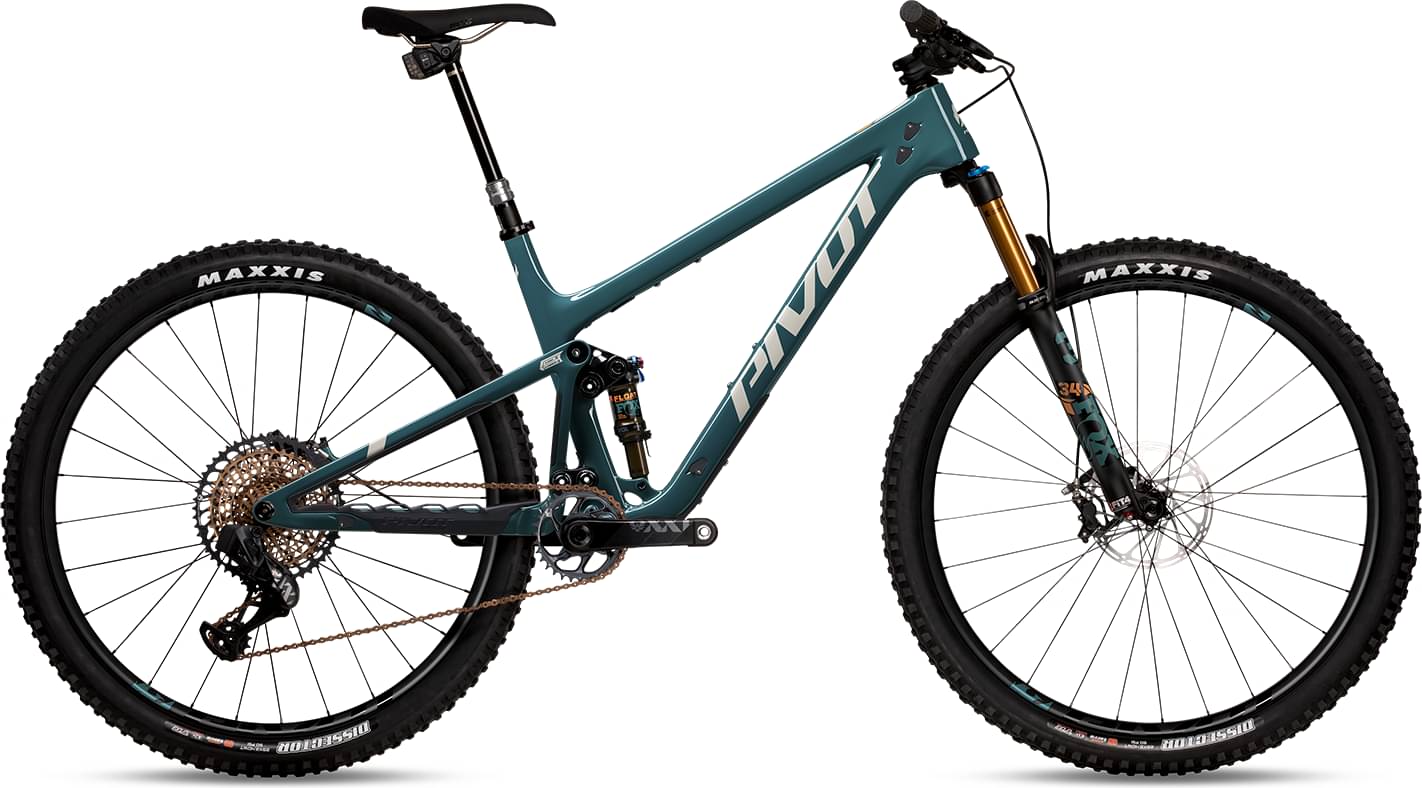

Pivot Trail 429 Team XX1 AXS 2023
2023 Mountain
Estimate price |
11,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Low
147cm - 164cm
SM Low
161cm - 174cm
MD Low
171cm - 182cm
LG Low
179cm - 189cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory Live 34 29", FIT LIVE - 130mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 w/ Industry Nine Hydra hub 30mm F 28mm R - 29"
15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM G2 Ultimate 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-LG) 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 699 mm | 723 mm | 758 mm | 775 mm | 800 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 116 mm | 116 mm | 116 mm | 116 mm | 116 mm |
| Stack | 578 mm | 587 mm | 598 mm | 603 mm | 615 mm |
| Reach | 404 mm | 424 mm | 454 mm | 469 mm | 489 mm |
| Top Tube Length | 566 mm | 589 mm | 622 mm | 638 mm | 661 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85 mm | 95 mm | 107 mm | 112 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1122 mm | 1146 mm | 1181 mm | 1198 mm | 1223 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 630 mm | 662 mm | 664 mm | 676 mm | 690 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Trail 429 Team XX1 AXS completes the Pivot Trail model. There are 85 bikes that carry this model name. Take a sneak peek at all Pivot Trail bikes models from 2023, by clicking here.
Model range prices
Pivot Trail 429 RIDE LIKE A PRO 2023 is the most affordable bike of this model and has a price of 5599$. On the other hand, Pivot Trail 429 Team XX1 AXS 2023, is the most expensive and costs 11599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Pivot Trail 429 Team XX1 AXS price was 11599$. Comparing the average cost of a Trail bike to this one, you will see that Trail 429 Team XX1 AXS price is 319.95% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Factory Live Valve rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Trail 429 Team XX1 AXS bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trail 429 Team XX1 AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trail 429 Team XX1 AXS comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Trail 429 Team XX1 AXS comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
