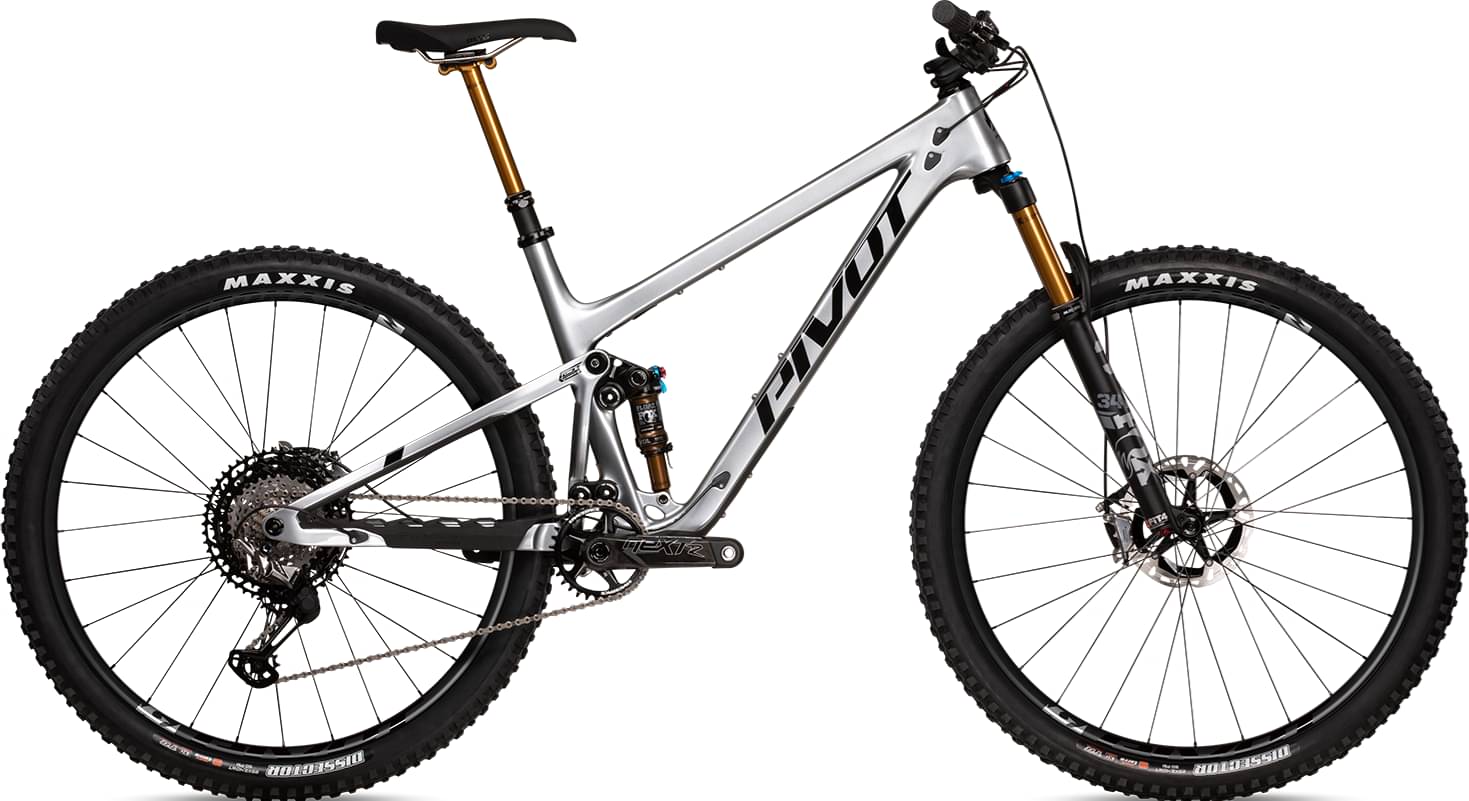

Pivot TRAIL 429 Team XX1 AXS Enduro 2022
2022 Mountain
Estimate price |
11,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Low
147cm - 164cm
XS Low
147cm - 164cm
SM Low
161cm - 174cm
SM Low
161cm - 174cm
MD Low
171cm - 182cm
MD Low
171cm - 182cm
LG Low
179cm - 189cm
LG Low
179cm - 189cm
XL Low
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 36 29", GRIP2 - 140mm
Rear Shock
Fox Factory FLOATX
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM G2 Ultimate 4-piston
Disk Rotors
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-LG) 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | XS Low | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.38 mm | 1.41 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm |
| Front Center | 699 mm | 699 mm | 723 mm | 723 mm | 758 mm | 758 mm | 775 mm | 775 mm | 800 mm | 800 mm |
| Rake | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm |
| Trail | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm |
| Stack | 578 mm | 582 mm | 587 mm | 591 mm | 598 mm | 602 mm | 603 mm | 607 mm | 615 mm | 619 mm |
| Reach | 404 mm | 399 mm | 424 mm | 419 mm | 454 mm | 449 mm | 469 mm | 464 mm | 489 mm | 484 mm |
| Top Tube Length | 566 mm | 567 mm | 589 mm | 590 mm | 622 mm | 623 mm | 638 mm | 639 mm | 661 mm | 663 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 85 mm | 85 mm | 95 mm | 95 mm | 107 mm | 107 mm | 112 mm | 112 mm | 125 mm | 125 mm |
| Chainstay Length | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm |
| Wheelbase | 1122 mm | 1123 mm | 1146 mm | 1147 mm | 1181 mm | 1182 mm | 1198 mm | 1199 mm | 1223 mm | 1224 mm |
| Bottom Bracket Drop | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 630 mm | 625 mm | 662 mm | 656 mm | 664 mm | 658 mm | 676 mm | 671 mm | 690 mm | 684 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
About this model
TRAIL 429 Team XX1 AXS Enduro is part of the Pivot Trail model. 85 bikes variations carry this model name so far. Take a sneak peek at all Pivot Trail bikes models from 2022, by clicking here.
Model range prices
Pivot TRAIL 429 Race XT 2022 is the cheapest bike model and costs 5999$. Pivot TRAIL 429 Team XX1 AXS Live 2022 is the most expensive one and costs 13299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 11399$. Comparing the average cost of a Trail bike to this one, you will see that TRAIL 429 Team XX1 AXS Enduro price is 312.71% more expensive.
TRAIL 429 Team XX1 AXS Enduro components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot TRAIL 429 Team XX1 AXS Enduro bike has the Fox Factory FLOATX model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the TRAIL 429 Team XX1 AXS Enduro bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TRAIL 429 Team XX1 AXS Enduro comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 10 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot TRAIL 429 Team XX1 AXS Enduro includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
