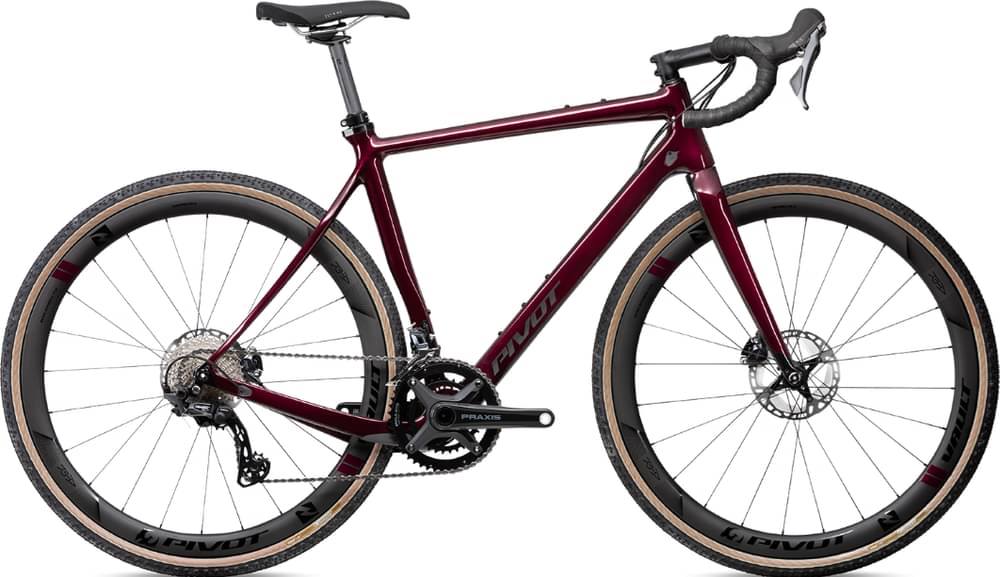

Pivot Vault Pro GRX w/ Carbon Wheels 2021
2021 Road
Estimate price |
6,549$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Vault
Suspension Fork
Pivot Vault Carbon
Drivetrain
Rear Derailleur
Shimano GRX 810 11-Speed
Front Derailleur
Shimano Ultegra Double FD-8000 Braze On
Shift Levers
Shimano GRX 810 11-Speed
Cassette
Shimano Ultegra HG-800 11-34t
Crank
Praxis Zayante Carbon-S 48/32t
Chain
Shimano CN-HG600 11-Speed
Wheels
Rims
Reynolds ATRx 23mm Carbon - 700C 12x100 F/12x142 R
Tires
Maxxis Rambler 700c x 40mm TR Skinwall EXOMaxxis Rambler 700c x 40mm TR Skinwall EXO
Brakes
Brakes
Shimano GRX 810 2-piston
Disk Rotors
Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Cockpit
Stem
Phoenix Team 31.8mm
Handlebar
Easton EA70 AX Aluminum - 40cm (XS), 42cm (SM), 44cm (MD), 46cm (LG, XL)
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Pro Volt
Seatpost
Phoenix Pro ISO Flex Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 590 mm | 592 mm | 610 mm | 618 mm | 628 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 70 mm | 66 mm | 66 mm | 66 mm |
| Stack | 527 mm | 556 mm | 581 mm | 596 mm | 619 mm |
| Reach | 381 mm | 388 mm | 402 mm | 405 mm | 407 mm |
| Top Tube Length | 522 mm | 545 mm | 572 mm | 585 mm | 597 mm |
| Seat Tube Angle | 74.8 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 458 mm | 528 mm | 548 mm | 568 mm | 588 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1007 mm | 1009 mm | 1027 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 773 mm | 794 mm | 812 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Vault Pro GRX w/ Carbon Wheels is a Pivot Vault model. 27 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Vault Pro GRX 2021 has a starting price of 5699$. Pivot Vault Team Force/X01 Wide Range w/ Carbon Wheels 2021 on the other hand is the most expensive at 7499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6549$. In conclusion, this bike price is 166% more expensive than the price of the average Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Vault Pro GRX w/ Carbon Wheels 2021 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Vault Pro GRX w/ Carbon Wheels is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
