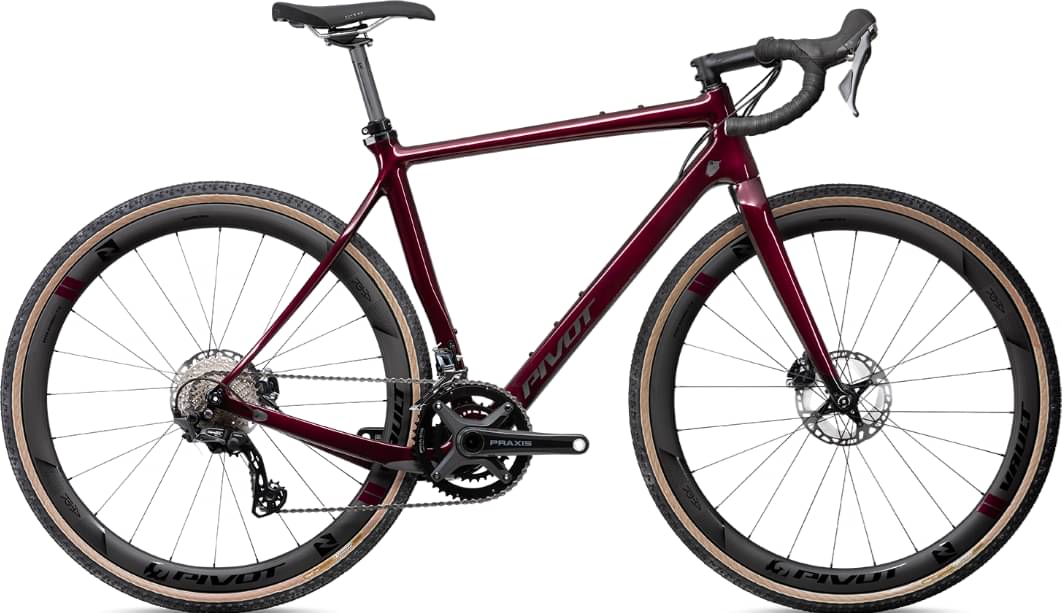

Pivot VAULT Pro GRX w/ Carbon Wheels 2022
2022 Road
Estimate price |
7,569$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Vault
Suspension Fork
Pivot Vault Carbon
Drivetrain
Rear Derailleur
Shimano GRX 810 11-Speed
Front Derailleur
Shimano Ultegra Double FD-8000 Braze On
Shift Levers
Shimano GRX 810 11-Speed
Cassette
Shimano Ultegra HG-800 11-34t
Crank
Praxis Zayante Carbon-S 48/32t
Chain
Shimano CN-HG600 11-Speed
Wheels
Rims
Reynolds ATRx 23mm Carbon - 700C 12x100 F/12x142 R
Tires
Maxxis Rambler 700c x 40mm TR Tan Wall EXOMaxxis Rambler 700c x 40mm TR Tan Wall EXO
Brakes
Brakes
Shimano GRX 810 2-piston
Disk Rotors
Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Cockpit
Stem
Phoenix Team 31.8mm
Handlebar
Easton EA70 AX Aluminum - 40cm (XS), 42cm (SM), 44cm (MD), 46cm (LG, XL)
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Pro Volt
Seatpost
Phoenix Pro ISO Flex Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 590 mm | 592 mm | 610 mm | 618 mm | 628 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 70 mm | 66 mm | 66 mm | 66 mm |
| Stack | 527 mm | 556 mm | 581 mm | 596 mm | 619 mm |
| Reach | 381 mm | 388 mm | 402 mm | 405 mm | 407 mm |
| Top Tube Length | 522 mm | 545 mm | 572 mm | 585 mm | 597 mm |
| Seat Tube Angle | 74.8 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 458 mm | 528 mm | 548 mm | 568 mm | 588 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1007 mm | 1009 mm | 1027 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 773 mm | 794 mm | 812 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
VAULT Pro GRX w/ Carbon Wheels belongs to the Pivot Vault model. 27 bikes variations carry this model name so far. Take a sneak peek at all Pivot Vault bikes models from 2022, by clicking here.
Model range prices
Pivot VAULT Pro GRX 2022 is the most affordable bike of this model and has a price of 6051$. On the other hand, Pivot VAULT Team Force/X01 Wide Range w/ Carbon Wheels 2022, is the most expensive and costs 8971$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 7007$. Doing a quick comparison, we notice that VAULT Pro GRX w/ Carbon Wheels price is 184.61% more expensive than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Pivot VAULT Pro GRX w/ Carbon Wheels 2022, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The VAULT Pro GRX w/ Carbon Wheels comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Pivot VAULT Pro GRX w/ Carbon Wheels bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
