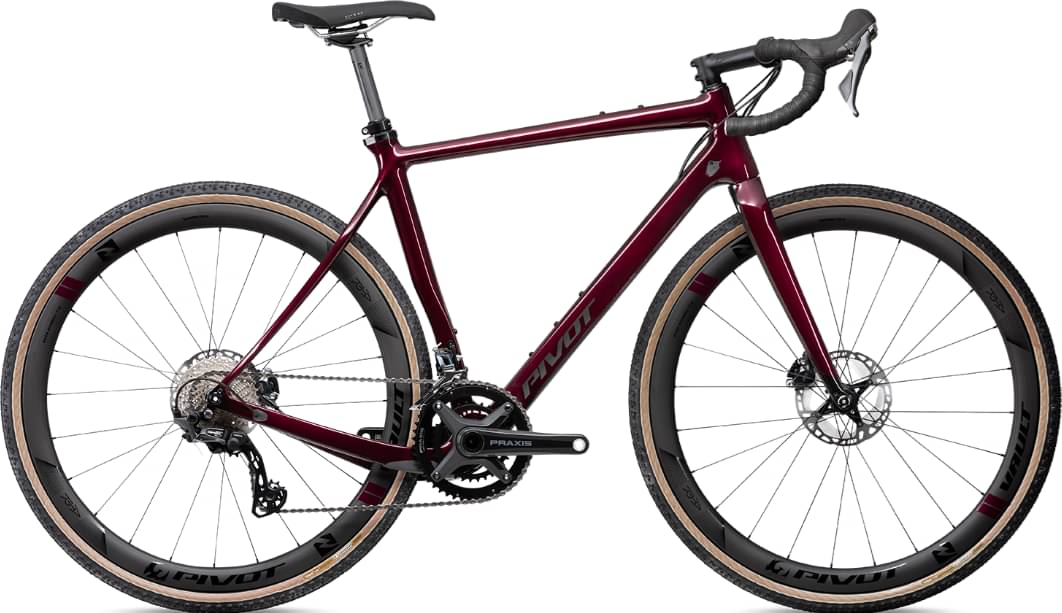

Pivot VAULT Team Force w/ Carbon Wheels 2022
2022 Road
Estimate price |
9,232$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap, Force 1 -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Vault
Suspension Fork
Pivot Vault Carbon
Drivetrain
Rear Derailleur
SRAM Force AXS e-Tap 12-Speed
Shift Levers
SRAM Force AXS eTap 12-Speed
Cassette
SRAM XG-1270 10-36t
Crank
SRAM Force 1 DUB 38t
Chain
SRAM Force Flattop 12-Speed
Wheels
Rims
Reynolds ATRx 23mm Carbon - 700C 12x100 F/12x142 R
Tires
Maxxis Rambler 700c x 40mm TR Tan Wall EXOMaxxis Rambler 700c x 40mm TR Tan Wall EXO
Brakes
Brakes
SRAM Force e-Tap AXS 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team 31.8mm
Handlebar
Easton EC70 AX Carbon - 40cm (XS), 42cm (SM), 44cm (MD), 46cm (LG, XL)
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt
Seatpost
Phoenix Pro ISO Flex Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 590 mm | 592 mm | 610 mm | 618 mm | 628 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 70 mm | 66 mm | 66 mm | 66 mm |
| Stack | 527 mm | 556 mm | 581 mm | 596 mm | 619 mm |
| Reach | 381 mm | 388 mm | 402 mm | 405 mm | 407 mm |
| Top Tube Length | 522 mm | 545 mm | 572 mm | 585 mm | 597 mm |
| Seat Tube Angle | 74.8 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 458 mm | 528 mm | 548 mm | 568 mm | 588 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1007 mm | 1009 mm | 1027 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 773 mm | 794 mm | 812 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
VAULT Team Force w/ Carbon Wheels is a Pivot Vault model. Pivot launched 27 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Pivot VAULT Pro GRX 2022 has a starting price of 6051$. Pivot VAULT Team Force/X01 Wide Range w/ Carbon Wheels 2022 on the other hand is the most expensive at 8971$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Pivot VAULT Team Force w/ Carbon Wheels price was 8546$. Comparing this to the average Gravel bike price, we see that the price is 247.12% higher.
Overview of components
Fork material
VAULT Team Force w/ Carbon Wheels has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on VAULT Team Force w/ Carbon Wheels are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Pivot VAULT Team Force w/ Carbon Wheels bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
