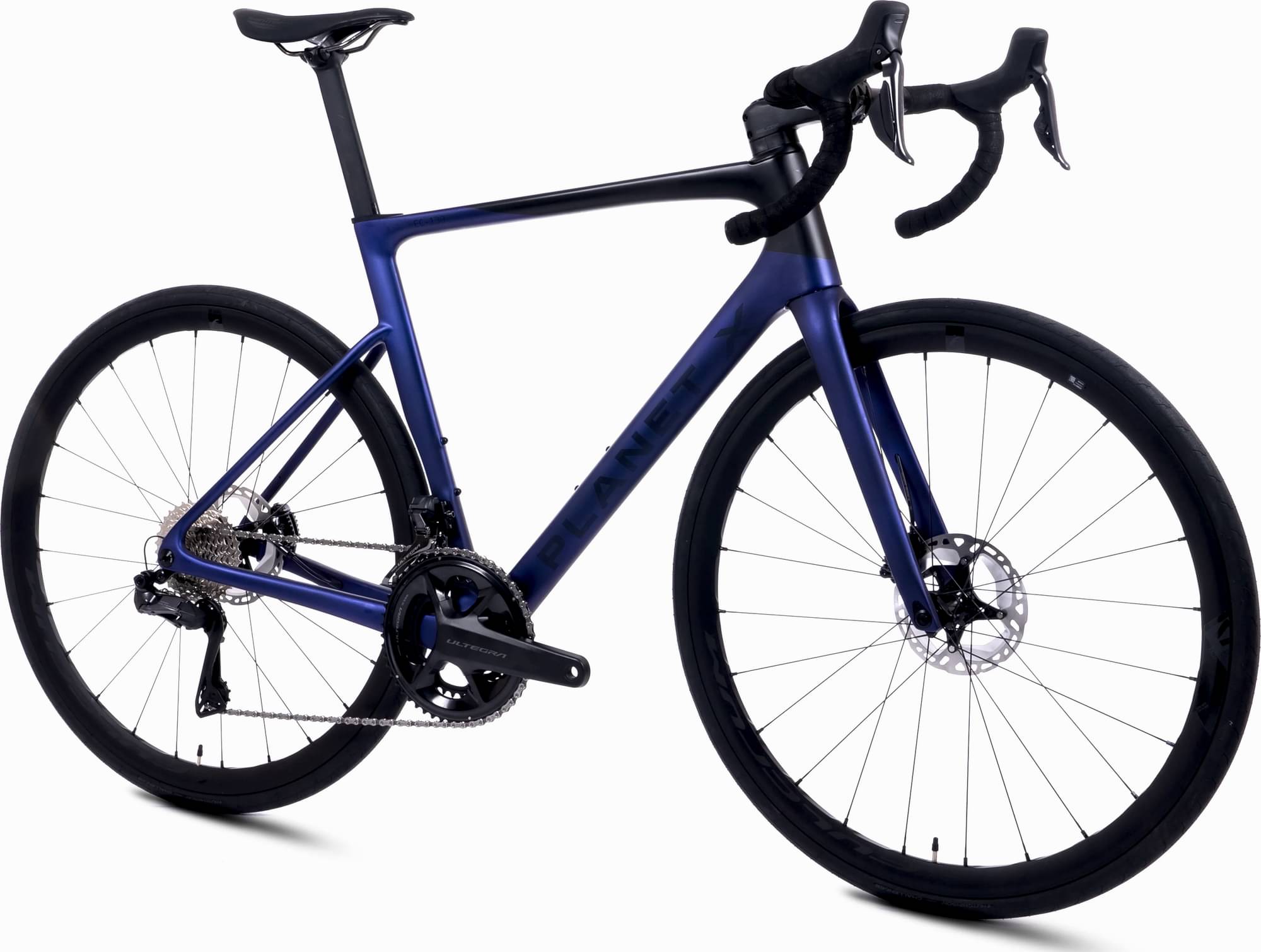

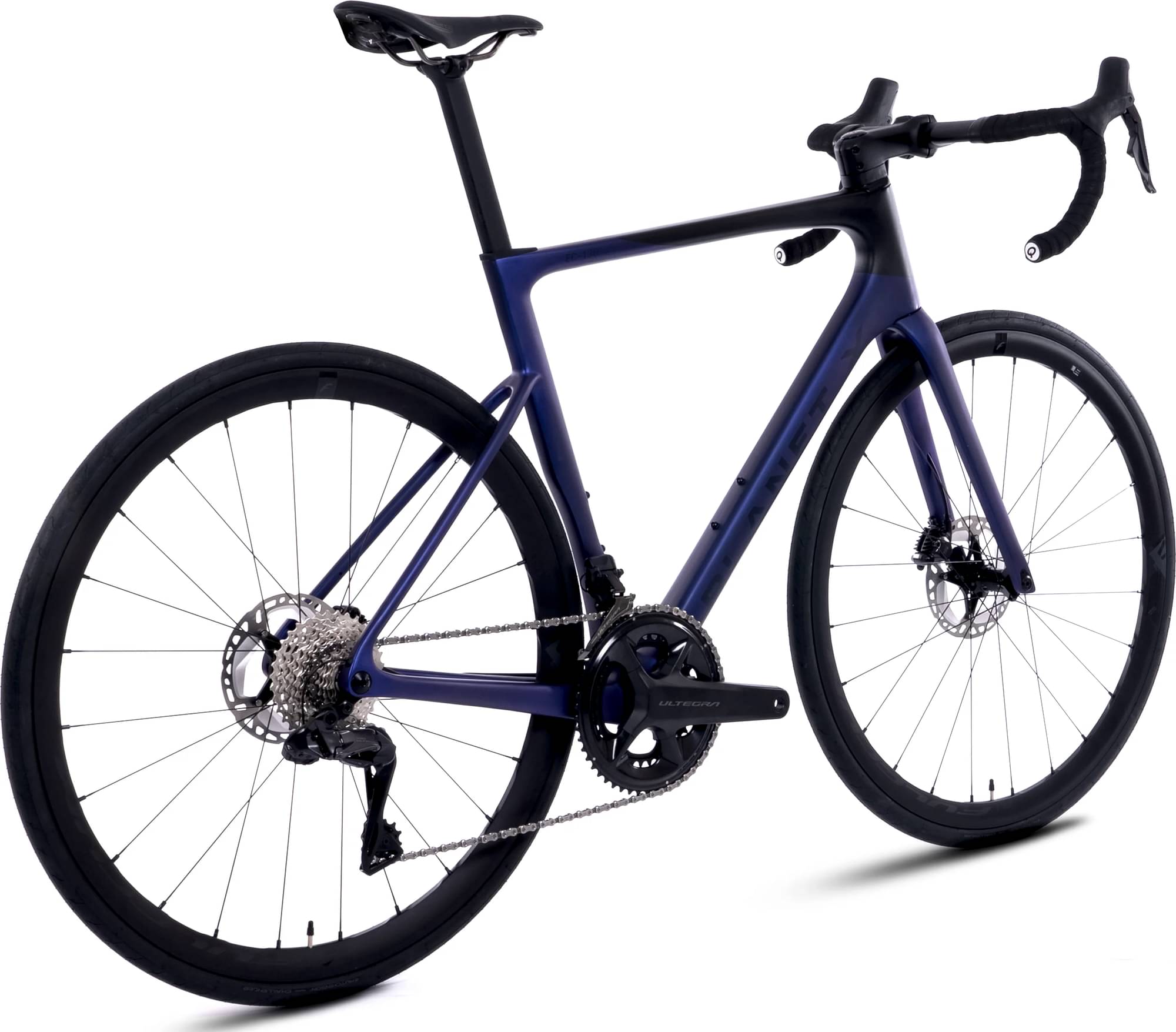

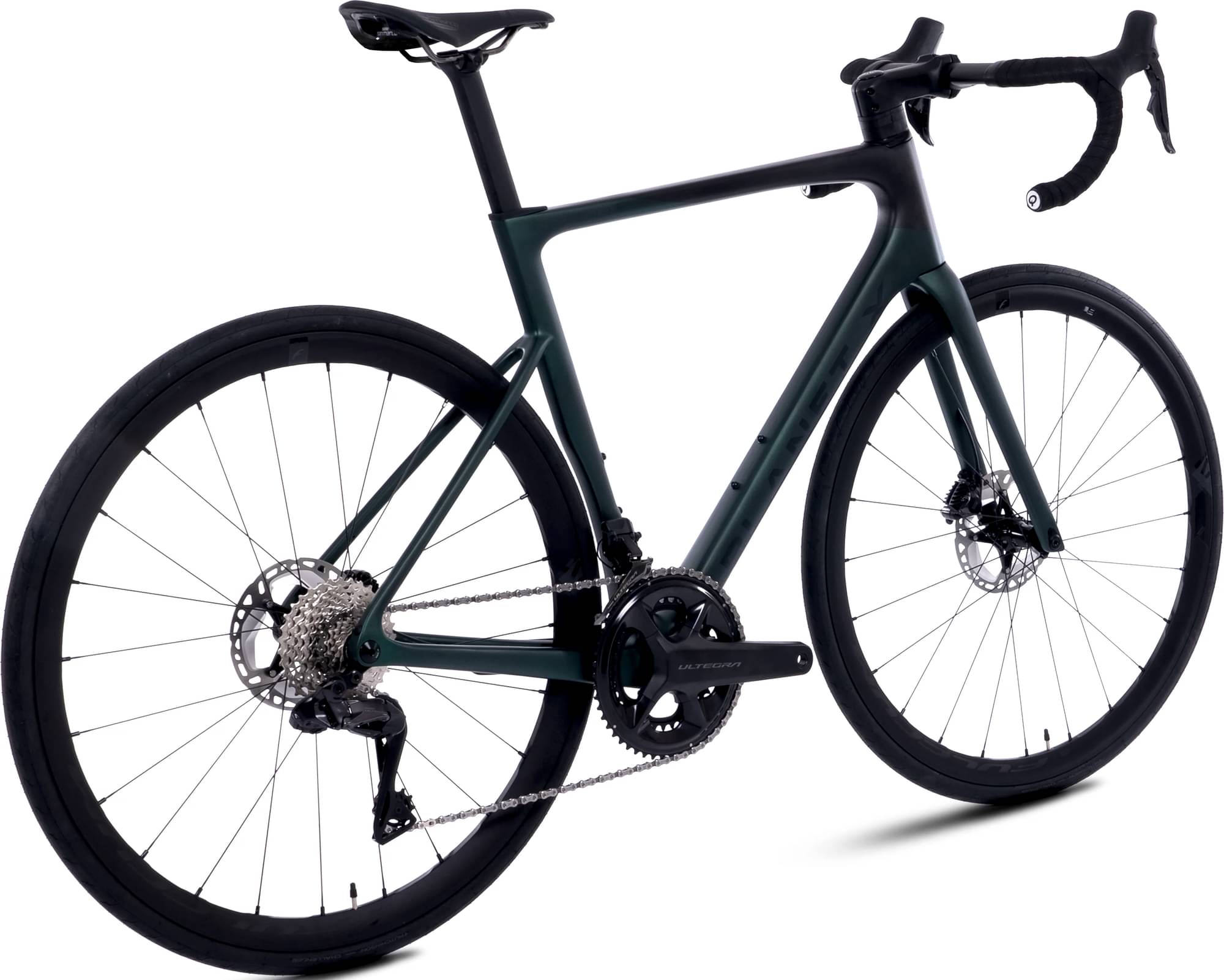

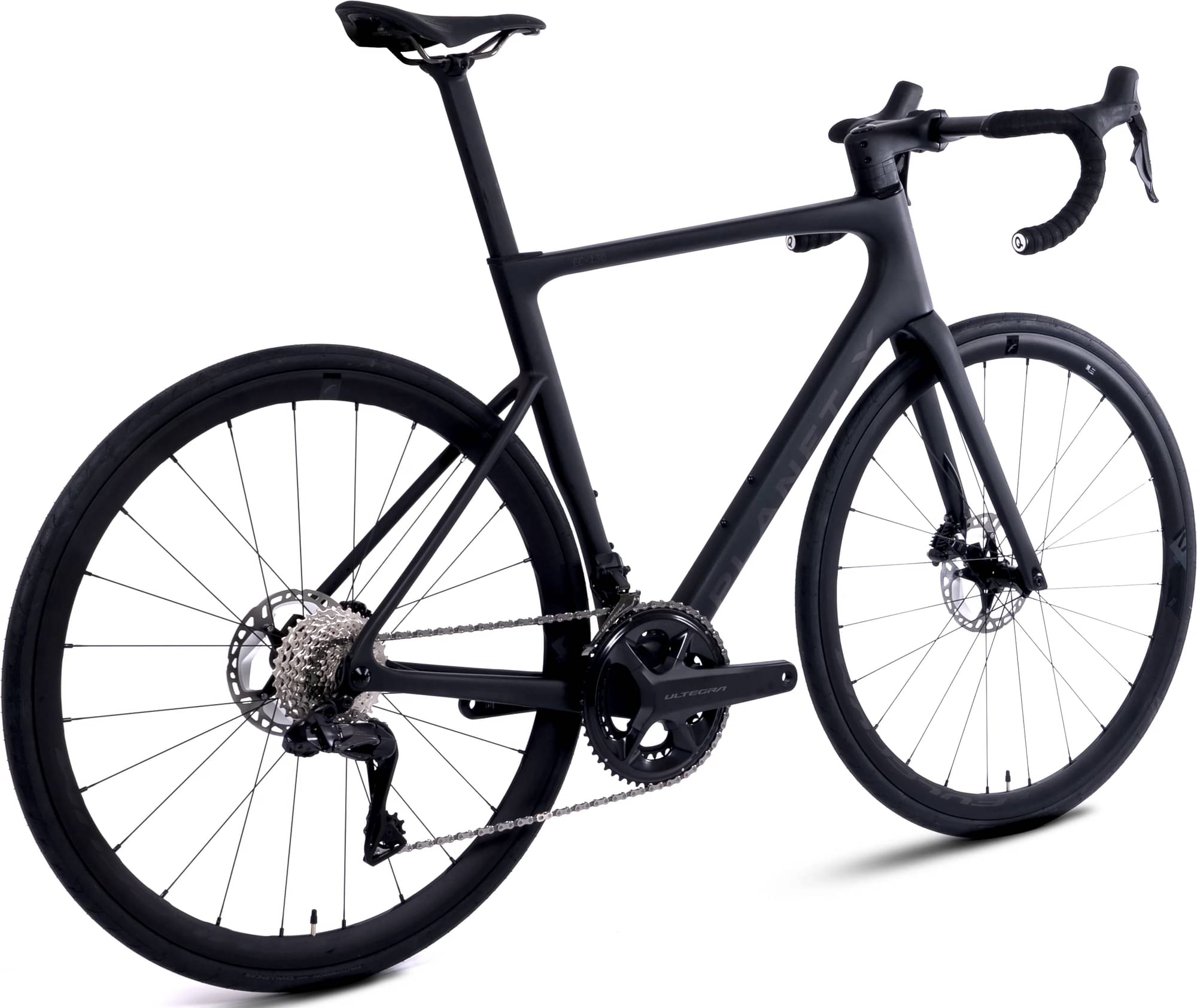

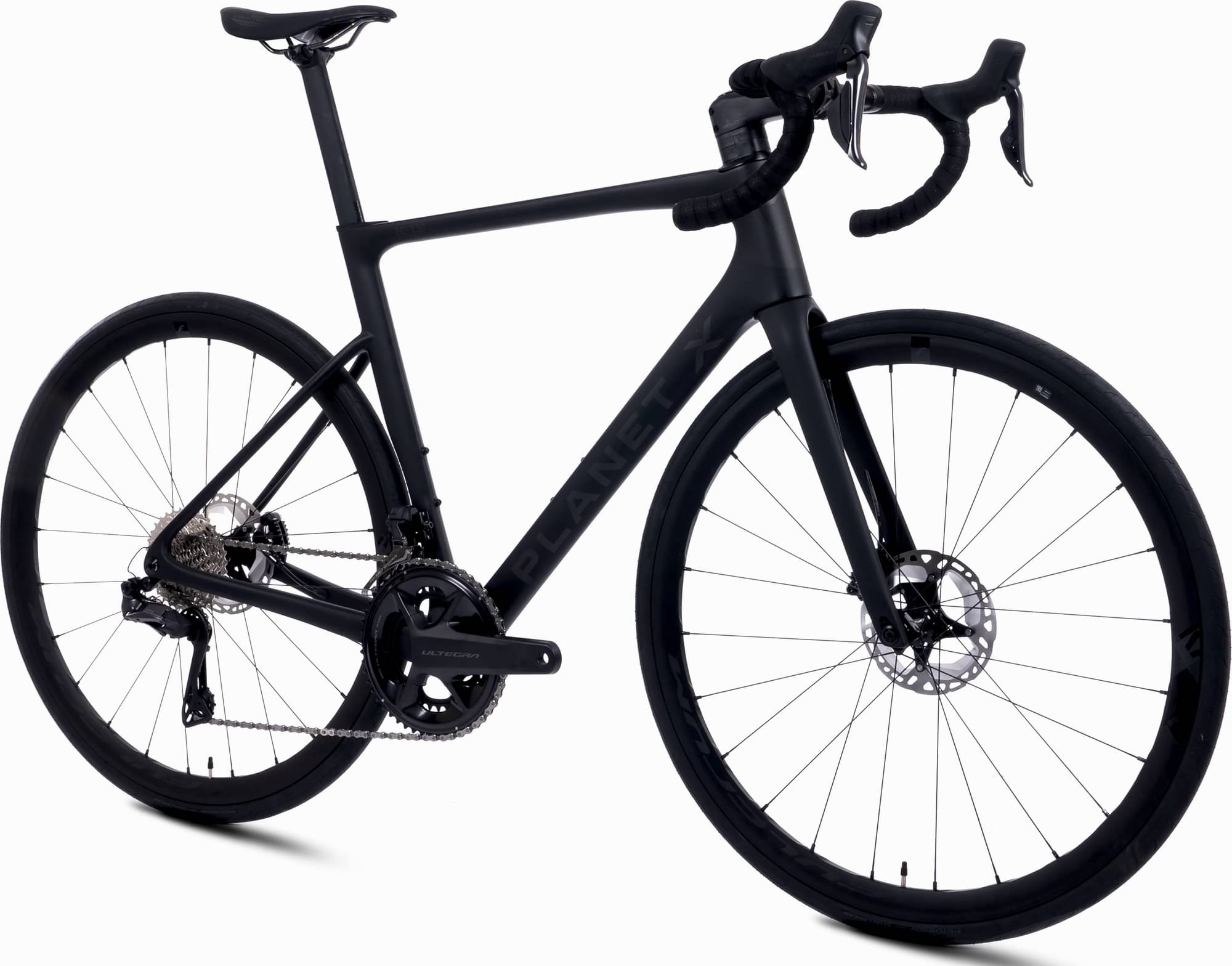

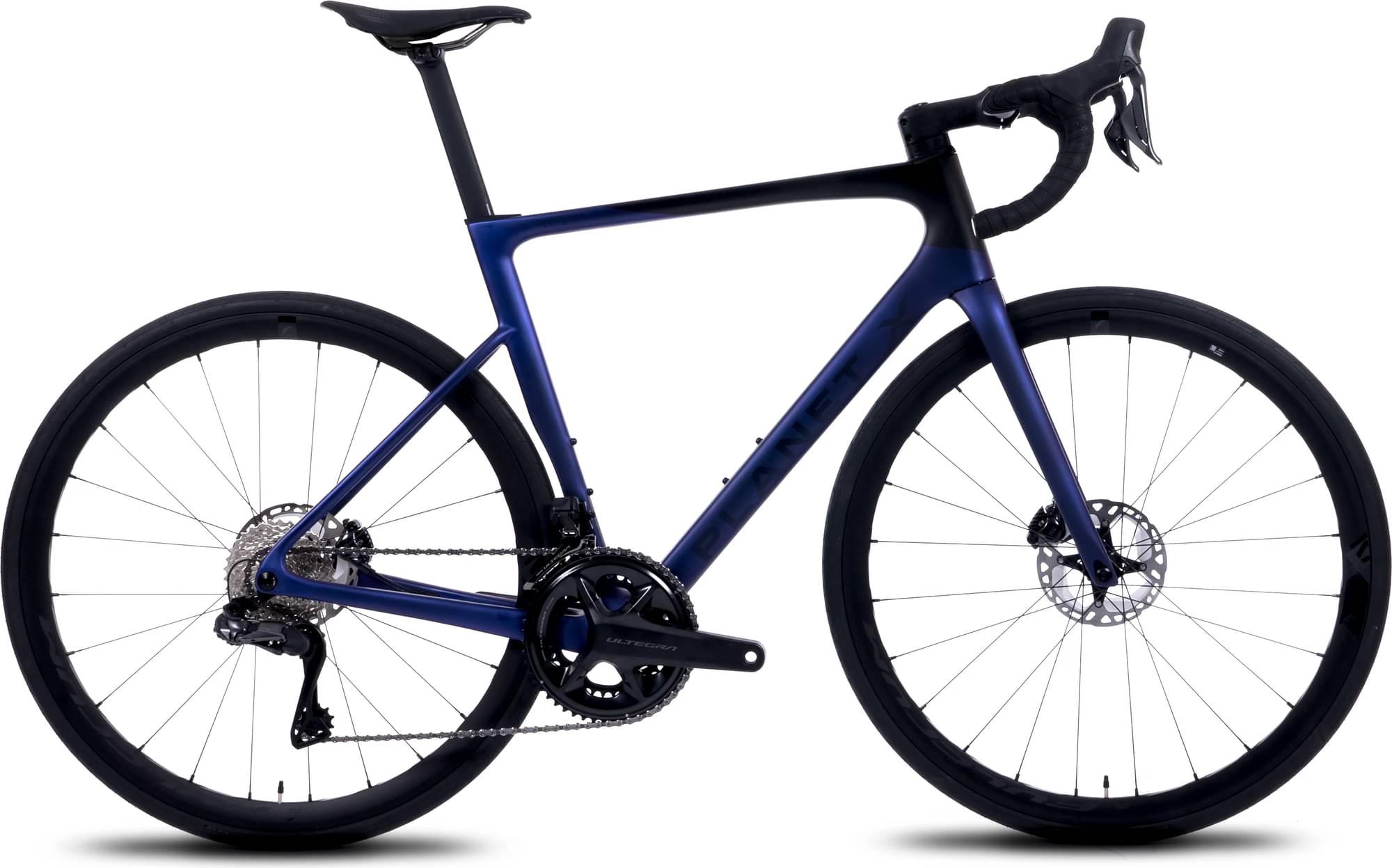

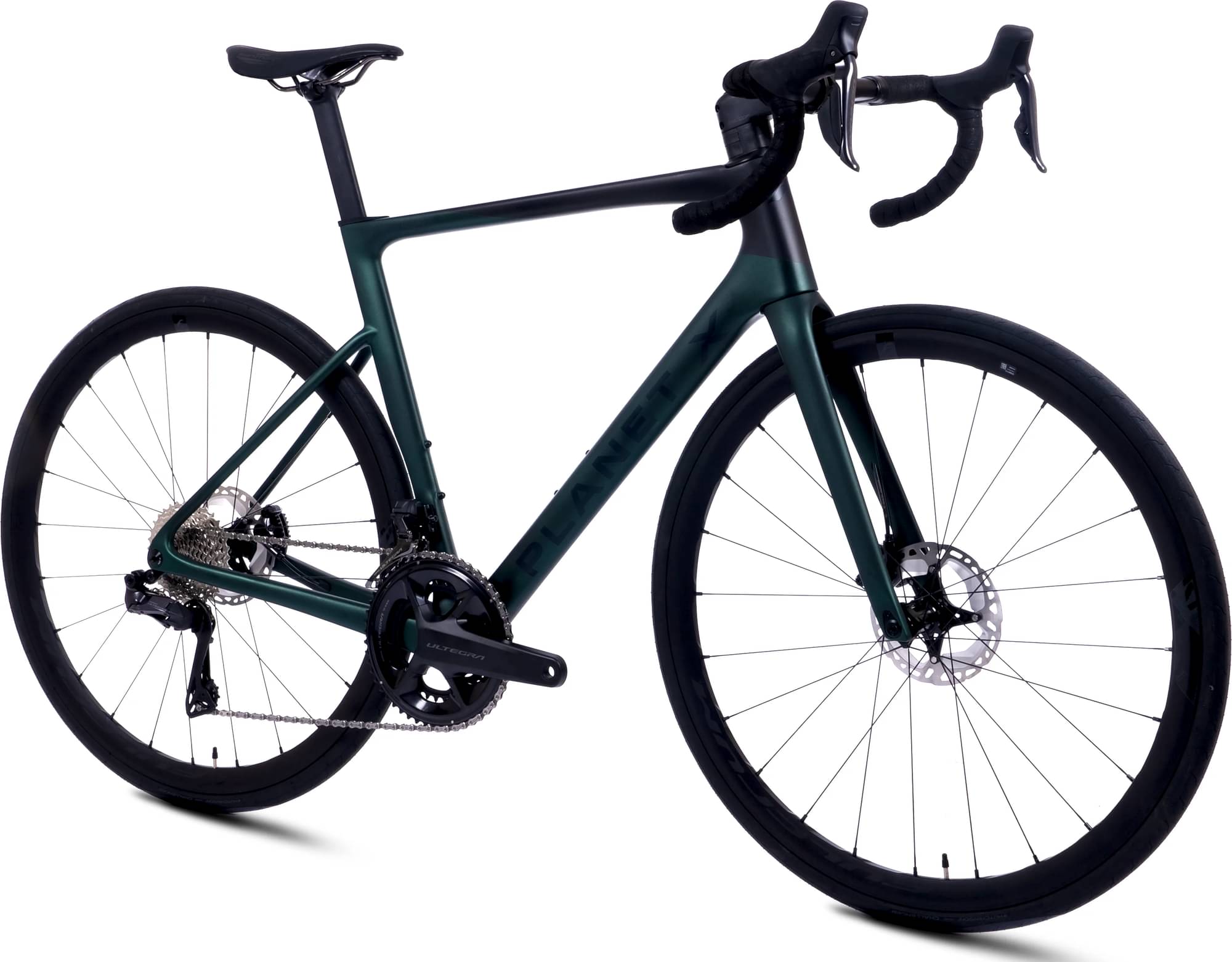

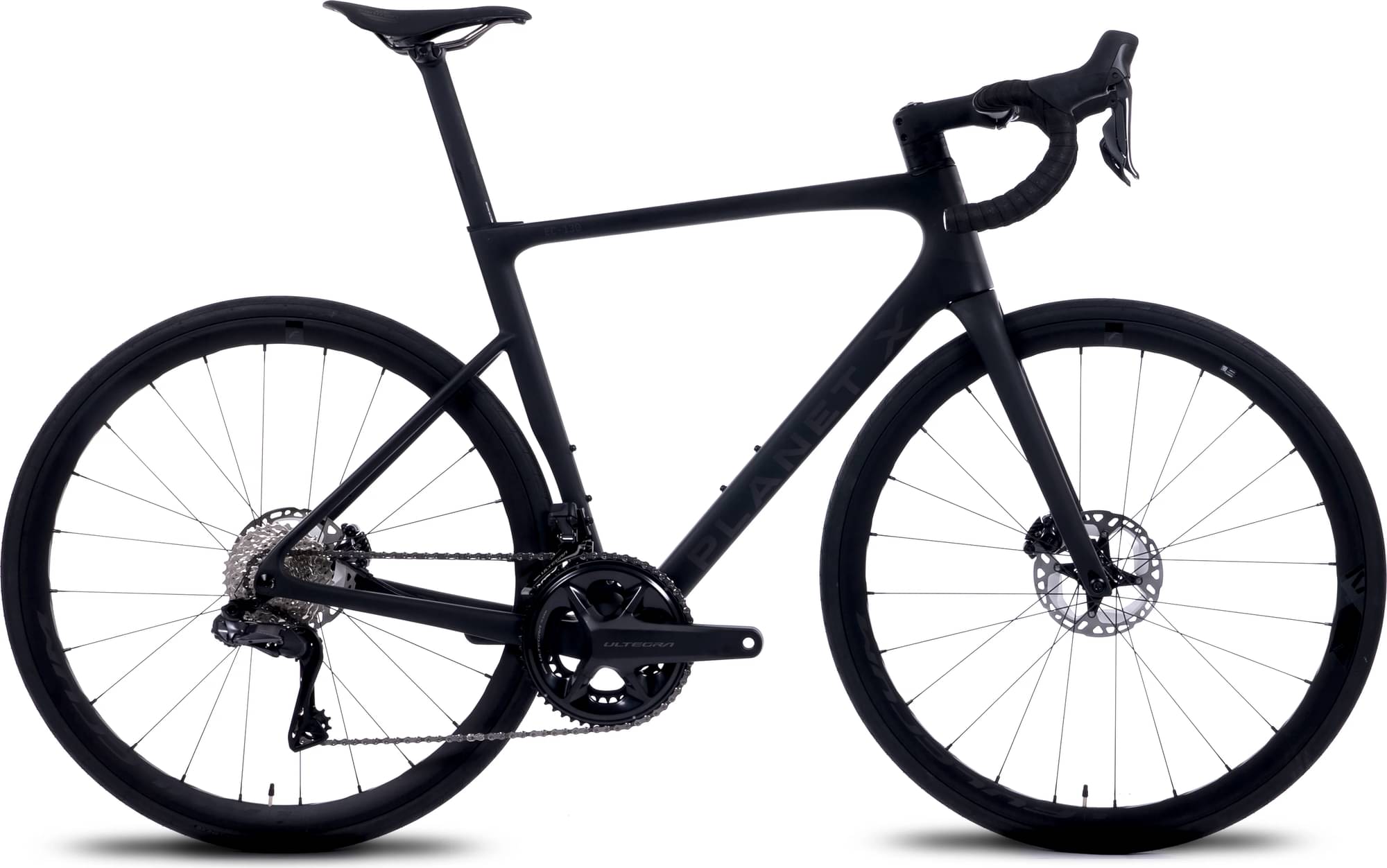

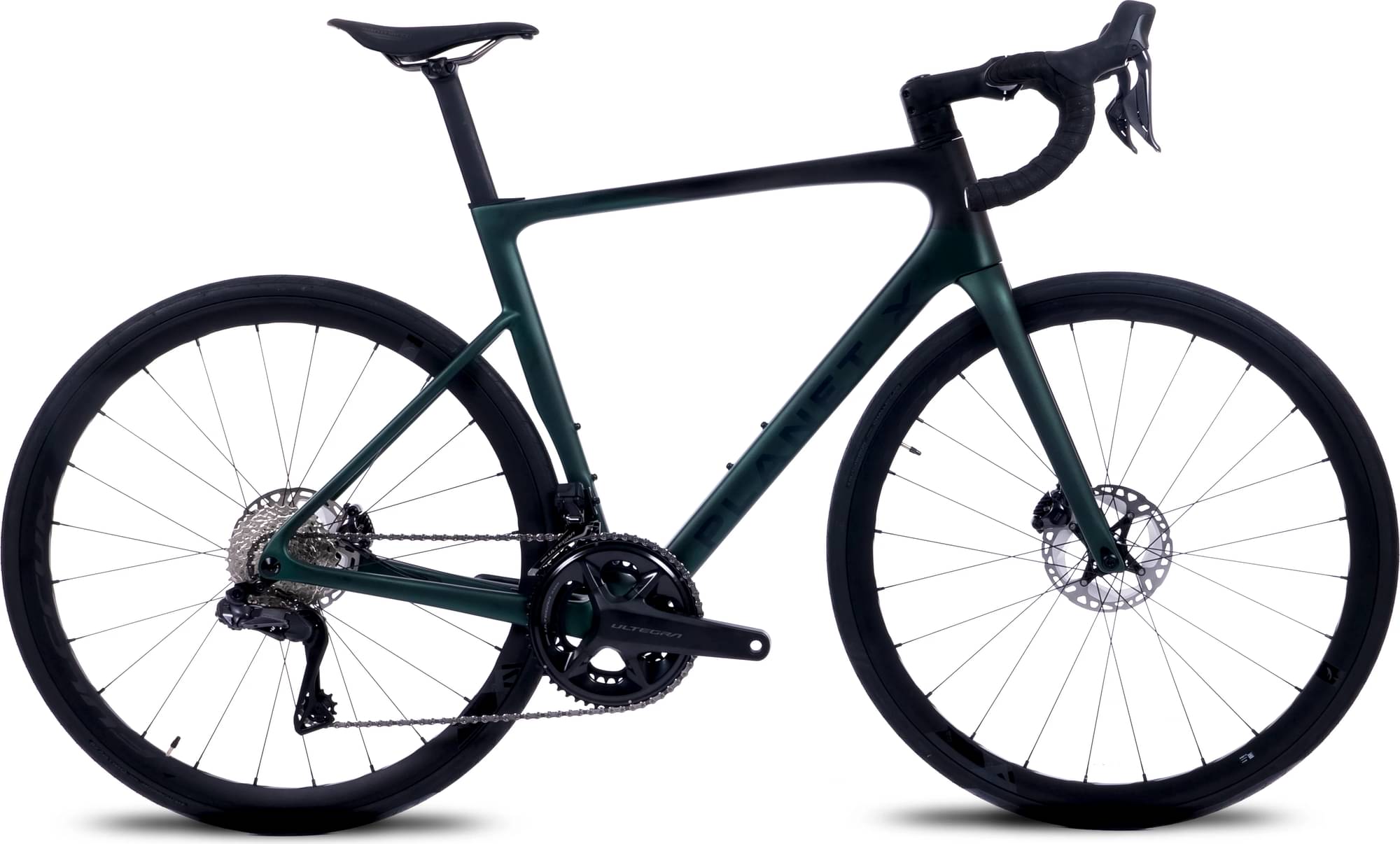

planetx Planet X EC-130 Shimano Ultegra Di2 2023
2023 Road
Estimate price |
5,218$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 RD-R8150 GS 12-Speed Rear Mech
Front Derailleur
Shimano Ultegra Di2 FD-R8150 Braze On Front Mech
Cassette
Shimano CS-R8100 12-Speed 11-34 Cassette
Crank
Shimano Ultegra FC-R8100 Chainset / 172.5mm / 52/36T
Bottom Bracket
Shimano SM-BBR60 BSA Bottom Bracket
Chain
Shimano CN-M8100-12 Speed Chain 120L
Wheels
Rims
Fulcrum Racing 400 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 X 142mm / Shimano 11 Speed
Tires
Hutchinson Challenger 700c Folding Tyre / 25mm / Black
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
Prologo Plain Touch Bar Tape / Black
Seat
Saddle
San Marco Shortfit Open-Fit Start-Up Superwide Saddle / Xsilite Rail
Seatpost
Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XSM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 579 mm | 582 mm | 591 mm | 599 mm | 615 mm |
| Rake | 42 mm | 44 mm | 43 mm | 33 mm | 43 mm |
| Trail | 71 mm | 66 mm | 64 mm | 71 mm | 61 mm |
| Stack | 505 mm | 516 mm | 537 mm | 557 mm | 577 mm |
| Reach | 370 mm | 372 mm | 378 mm | 387 mm | 396 mm |
| Top Tube Length | 507 mm | 523 mm | 535 mm | 554 mm | 569 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 966 mm | 969 mm | 976 mm | 977 mm | 1002 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
EC-130 Shimano Ultegra Di2 is a Planetx Ec 130 model. Planet X released 5 bikes variations of this model so far. You can easily view all of the Planetx Ec 130 bikes models from 2023, here.
Model range prices
The most economical model, the Planet X EC-130 SRAM Rival AXS 2023 has a starting price of 3283$. Planet X EC-130 Shimano Dura-Ace Di2 2023 on the other hand is the most expensive at 6689$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Planet X released this model in 2023, its price was 4743$. In conclusion, this bike price is 12.63% more expensive than the price of the average Aero bike.
EC-130 Shimano Ultegra Di2 components
Fork material
EC-130 Shimano Ultegra Di2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Planet X EC-130 Shimano Ultegra Di2 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The EC-130 Shimano Ultegra Di2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
