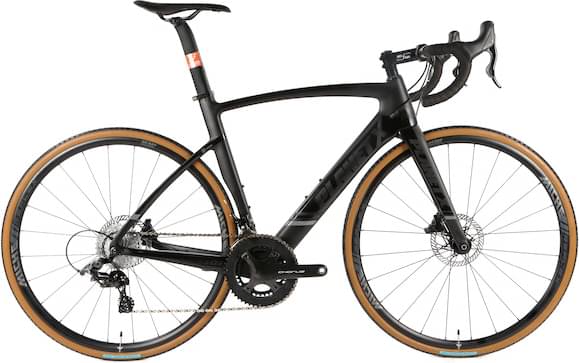

planetx Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon 2022
2022 Road
Estimate price |
3,657$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Chorus -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A road bike that rides as fast as it looks with razor sharp handling to match. 1250g Toray T800 carbon aero frame and 450g fork. QR dropouts, Full internal cable routing. 25.5mm tyres? Yes. Racks or guards? No.
Drivetrain
Rear Derailleur
Campagnolo Chorus 12 Rear Derailleur
Front Derailleur
Campagnolo Chorus 12 Braze-On Front Derailleur
Cassette
Campagnolo Chorus 12 Sprocket / 11-32
Crank
Campagnolo Chorus 12 Crankset / 172.5mm / 52/36
Bottom Bracket
Campagnolo Ultra Torque Record Bottom Bracket Cups / OC12-REG
Chain
Campagnolo Chorus 12x Chain 114L
Wheels
Rims
Miche Race DX Wide Profile Disc Wheel Set
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V2 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 575 mm | 580 mm | 600 mm | 614 mm |
| Rake | 57 mm | 46 mm | 46 mm | 45 mm | 48 mm |
| Trail | 49 mm | 61 mm | 55 mm | 56 mm | 53 mm |
| Stack | 507 mm | 523 mm | 541 mm | 567 mm | 587 mm |
| Reach | 365 mm | 376 mm | 380 mm | 393 mm | 398 mm |
| Top Tube Length | 507 mm | 527 mm | 542 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 530 mm | 540 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 976 mm | 977 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
EC-130E Rivet Rider Disc Campagnolo Chorus Carbon is a Planetx Ec 130e model. Planet X released 32 bikes variations of this model so far. Take a sneak peek at all Planetx Ec 130e bikes models from 2022, by clicking here.
Model range prices
Planet X EC-130E Rivet Rider SRAM Rival 22 Carbon 2022 is the most affordable bike of this model and has a price of 1702$. On the other hand, Planet X EC-130E Rivet Rider Disc Campagnolo Chorus 2022, is the most expensive and costs 3526$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 3283$. In conclusion, this bike price is 28.27% lower than the price of the average Aero bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
EC-130E Rivet Rider Disc Campagnolo Chorus Carbon components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on EC-130E Rivet Rider Disc Campagnolo Chorus Carbon are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
