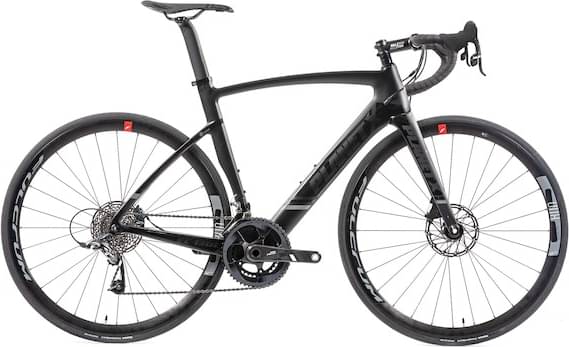

planetx Planet X EC-130E Rivet Rider Disc SRAM Force 22 Carbon 2022
2022 Road
Estimate price |
2,166$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A road bike that rides as fast as it looks with razor sharp handling to match. 1250g Toray T800 carbon aero frame and 450g fork. QR dropouts, Full internal cable routing. 25.5mm tyres? Yes. Racks or guards? No.
Drivetrain
Rear Derailleur
SRAM Force 11 Rear Mech / Medium Cage
Front Derailleur
SRAM Force 11 Front Mech / Braze On
Cassette
SRAM PG1130 Cassette / 11-32T
Crank
SRAM Force 11 GXP Chainset (No BB) / 172.5mm / 50-34T
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Racing 800 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 x 142mm / Shimano 11 Speed
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
Rever Havit Flat Mount Dual-Movement Disc Caliper / Front
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V2 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 575 mm | 580 mm | 600 mm | 614 mm |
| Rake | 57 mm | 46 mm | 46 mm | 45 mm | 48 mm |
| Trail | 49 mm | 61 mm | 55 mm | 56 mm | 53 mm |
| Stack | 507 mm | 523 mm | 541 mm | 567 mm | 587 mm |
| Reach | 365 mm | 376 mm | 380 mm | 393 mm | 398 mm |
| Top Tube Length | 507 mm | 527 mm | 542 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 530 mm | 540 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 976 mm | 977 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
EC-130E Rivet Rider Disc SRAM Force 22 Carbon completes the Planetx Ec 130e model. Planet X launched 32 bikes of this model so far. Take a sneak peek at all Planetx Ec 130e bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Planet X EC-130E Rivet Rider SRAM Rival 22 Carbon 2022 has a starting price of 1702$. Planet X EC-130E Rivet Rider Disc Campagnolo Chorus 2022 on the other hand is the most expensive at 3526$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 1945$. Comparing this to the average Aero bike price, we see that the price is 116.5% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
EC-130E Rivet Rider Disc SRAM Force 22 Carbon components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on EC-130E Rivet Rider Disc SRAM Force 22 Carbon are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The EC-130E Rivet Rider Disc SRAM Force 22 Carbon comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
