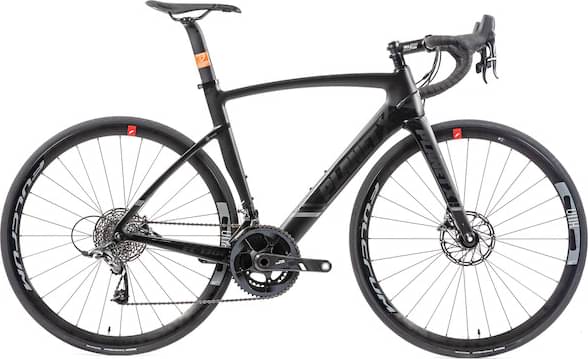

planetx Planet X EC-130E Rivet Rider Disc SRAM Force 22 HRD 2022
2022 Road
Estimate price |
2,573$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A road bike that rides as fast as it looks with razor sharp handling to match. 1250g Toray T800 carbon aero frame and 450g fork. QR dropouts, Full internal cable routing. 25.5mm tyres? Yes. Racks or guards? No.
Drivetrain
Rear Derailleur
SRAM Force 11 Rear Mech / Medium Cage
Front Derailleur
SRAM Force 11 Front Mech / Braze On
Cassette
SRAM PG1130 Cassette / 11-32T
Crank
SRAM Force 11 GXP Chainset (No BB) / 172.5mm / 50-34T
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Racing 800 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 x 142mm / Shimano 11 Speed
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta V2 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V2 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 575 mm | 580 mm | 600 mm | 614 mm |
| Rake | 57 mm | 46 mm | 46 mm | 45 mm | 48 mm |
| Trail | 49 mm | 61 mm | 55 mm | 56 mm | 53 mm |
| Stack | 507 mm | 523 mm | 541 mm | 567 mm | 587 mm |
| Reach | 365 mm | 376 mm | 380 mm | 393 mm | 398 mm |
| Top Tube Length | 507 mm | 527 mm | 542 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 530 mm | 540 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 976 mm | 977 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
EC-130E Rivet Rider Disc SRAM Force 22 HRD belongs to the Planetx Ec 130e model. Planet X released 32 bikes variations of this model so far. Take a sneak peek at all Planetx Ec 130e bikes models from 2022, by clicking here.
Model range prices
Planet X EC-130E Rivet Rider SRAM Rival 22 Carbon 2022 is the most affordable bike of this model and has a price of 1702$. On the other hand, Planet X EC-130E Rivet Rider Disc Campagnolo Chorus 2022, is the most expensive and costs 3526$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 2310$. In conclusion, this bike price is 82.29% smaller than the price of the average Aero bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
EC-130E Rivet Rider Disc SRAM Force 22 HRD has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the EC-130E Rivet Rider Disc SRAM Force 22 HRD model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
