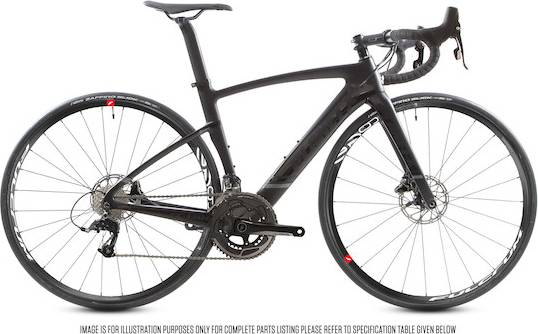

Planet X EC-130E Rivet Rider Disc SRAM Rival 22 2020
2020 Road
Estimate price |
2,140$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A road bike that rides as fast as it looks with razor sharp handling to match. 1250g Toray T800 carbon aero frame and 450g fork. QR dropouts, Full internal cable routing. 28mm tyres? Yes. Racks or guards? No.
Drivetrain
Rear Derailleur
SRAM Rival 11 Rear Mech / Medium Cage
Front Derailleur
SRAM Rival 11 Front Mech / Braze On
Cassette
SRAM PG1130 Cassette / 11-32T
Crank
SRAM Rival 11 Chainset (No BB) / 172.5mm / 50-34T
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Racing 800 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 x 142mm / Shimano 11 Speed
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Controltech RAS-99 Alloy Stem / Black / 100mm
Handlebar
Controltech RA-540DB-6 Alloy Road Bar / Black / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 575 mm | 580 mm | 600 mm | 614 mm |
| Rake | 57 mm | 46 mm | 46 mm | 45 mm | 48 mm |
| Trail | 49 mm | 61 mm | 55 mm | 56 mm | 53 mm |
| Stack | 507 mm | 523 mm | 541 mm | 567 mm | 587 mm |
| Reach | 365 mm | 376 mm | 380 mm | 393 mm | 398 mm |
| Top Tube Length | 507 mm | 527 mm | 542 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 530 mm | 540 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 976 mm | 977 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
EC-130E Rivet Rider Disc SRAM Rival 22 belongs to the Planetx Ec 130e model. Planet X released 32 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Planet X EC-130E Rivet Rider SRAM Rival 22 2020 is the most affordable bike of this model and has a price of 1702$. On the other hand, Planet X EC-130E Disc Shimano Ultegra 2020, is the most expensive and costs 2675$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Planet X released this model in 2020, its price was 1945$. If we compare this with the average Aero bike cost we notice that the price is 116.5% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the EC-130E Rivet Rider Disc SRAM Rival 22 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The EC-130E Rivet Rider Disc SRAM Rival 22 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
