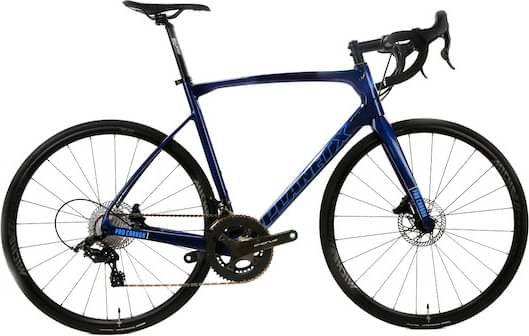

planetx Planet X Pro Carbon Disc Campagnolo Chorus 2022
2022 Road
Estimate price |
3,478$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Chorus -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Pro Carbon Evo frameset - 1100g Toray carbon frame and 440g fork. 12mm through axles, flat mount discs. Full internal cable and hose routing. 30mm tyres? Yes. Racks or guards? No.
Drivetrain
Rear Derailleur
Campagnolo Chorus 12 Rear Derailleur
Front Derailleur
Campagnolo Chorus 12 Braze-On Front Derailleur
Cassette
Campagnolo Chorus 12 Sprocket / 11-32
Crank
Campagnolo Chorus 12 Crankset / 172.5mm / 52/36
Bottom Bracket
Campagnolo Ultra Torque Record Bottom Bracket Cups / OC12-REG
Chain
Campagnolo Chorus 12x Chain 114L
Wheels
Rims
Miche Race DX Wide Profile Disc Wheel Set
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V2 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Shortfit Open-fit Start Up Wide Saddle / Cromo Rail
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 470mm XSM | SM | MD | 560mm LRG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.45 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 580 mm | 582 mm | 595 mm | 606 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 51 mm | 48 mm | 55 mm | 64 mm | 66 mm |
| Stack | 513 mm | 529 mm | 556 mm | 573 mm | 594 mm |
| Reach | 384 mm | 386 mm | 383 mm | 392 mm | 403 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 151 mm | 170 mm | 190 mm |
| Chainstay Length | 407 mm | 407 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 988 mm | 982 mm | 989 mm | 996 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Pro Carbon Disc Campagnolo Chorus is a Planetx Pro Carbon model. 24 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Planet X Pro Carbon Disc SRAM Force 22 2022 has a starting price of 1825$. Planet X Pro Carbon SRAM Force AXS 2022 on the other hand is the most expensive at 3648$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Road bikes average price
According to our math, the average price for a trustworthy General Road bike is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3161$. Comparing this to the average General Road bike price, we see that the price is 65.07% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Planet X Pro Carbon Disc Campagnolo Chorus 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Planet X Pro Carbon Disc Campagnolo Chorus is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
