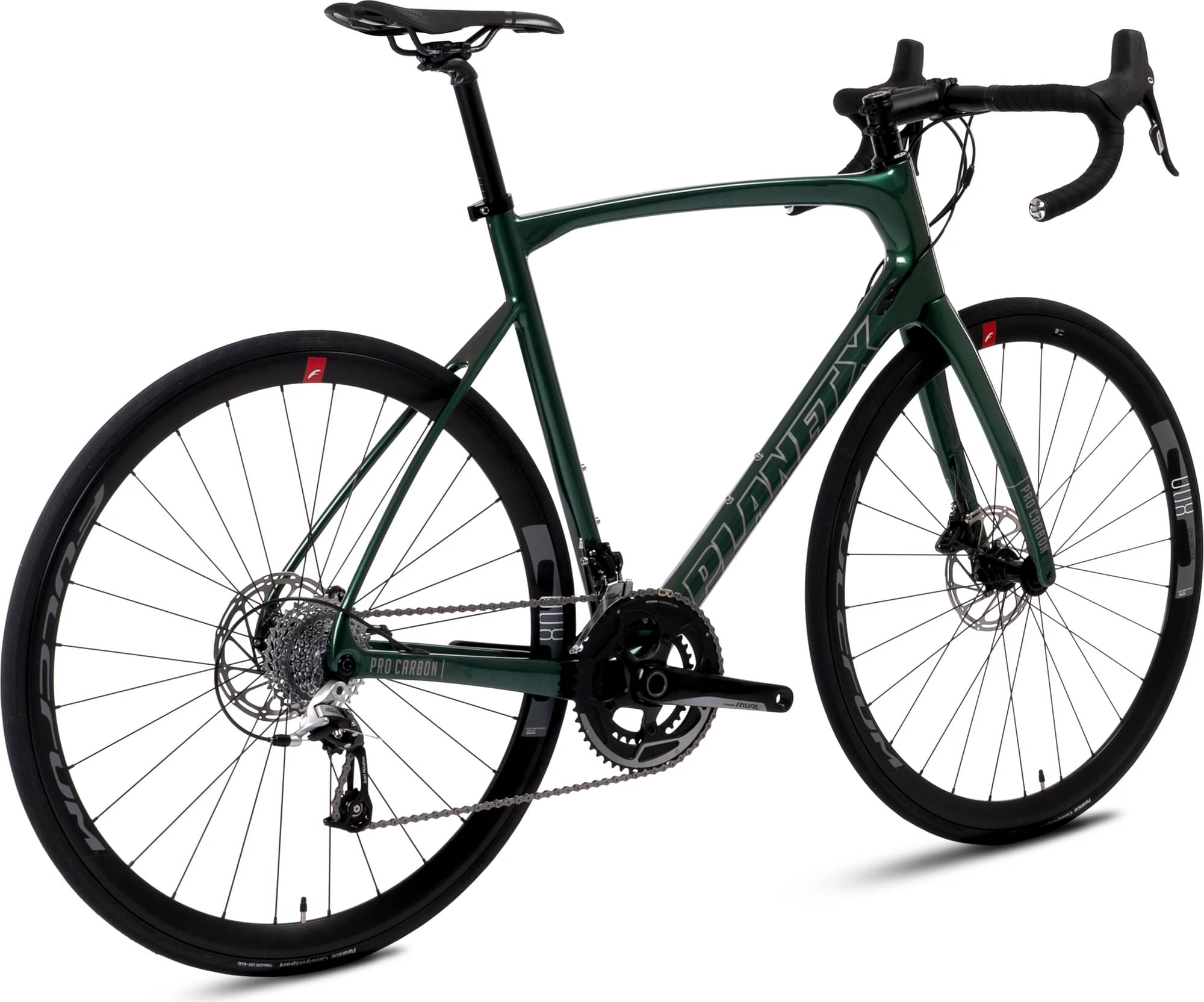

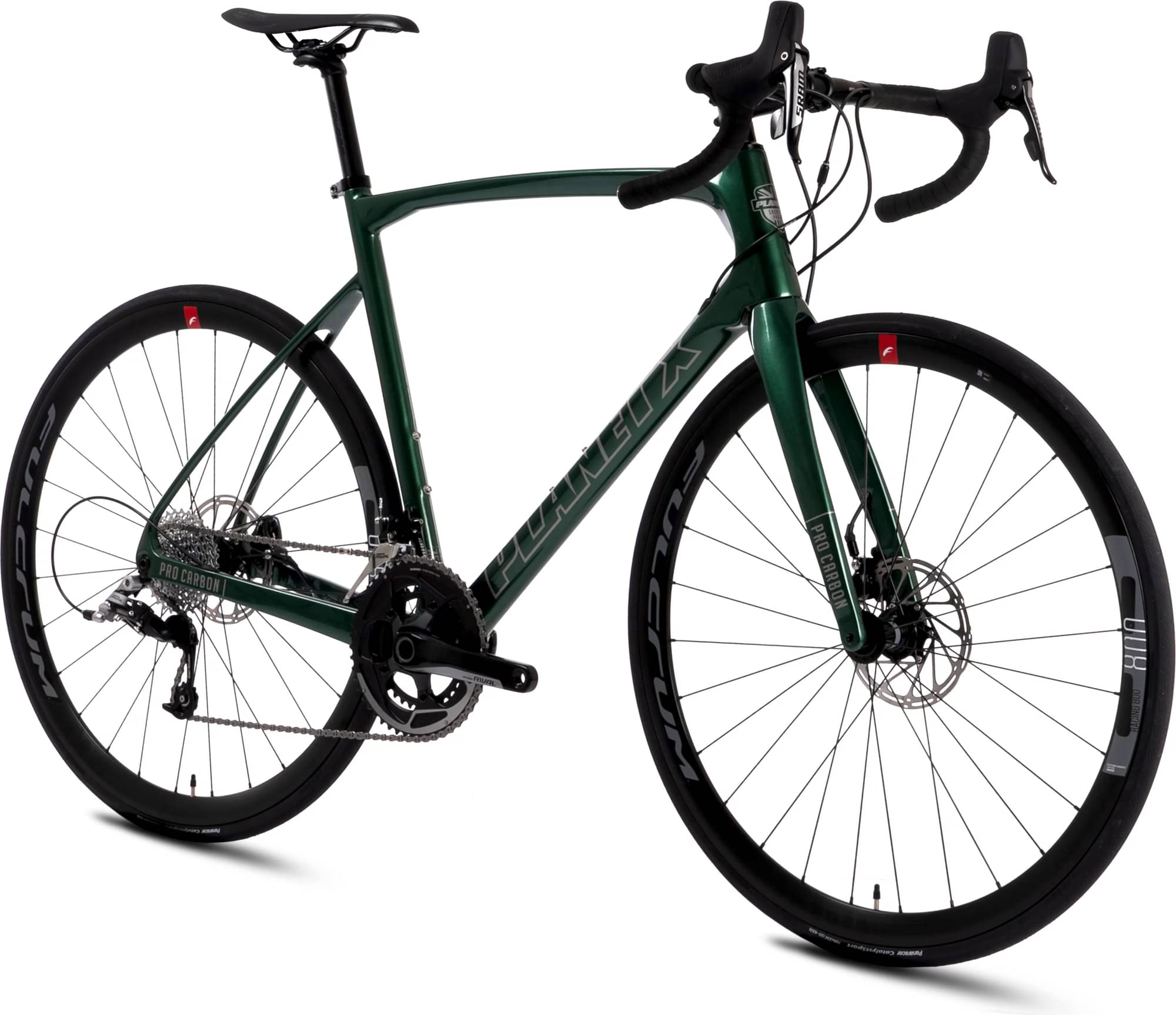

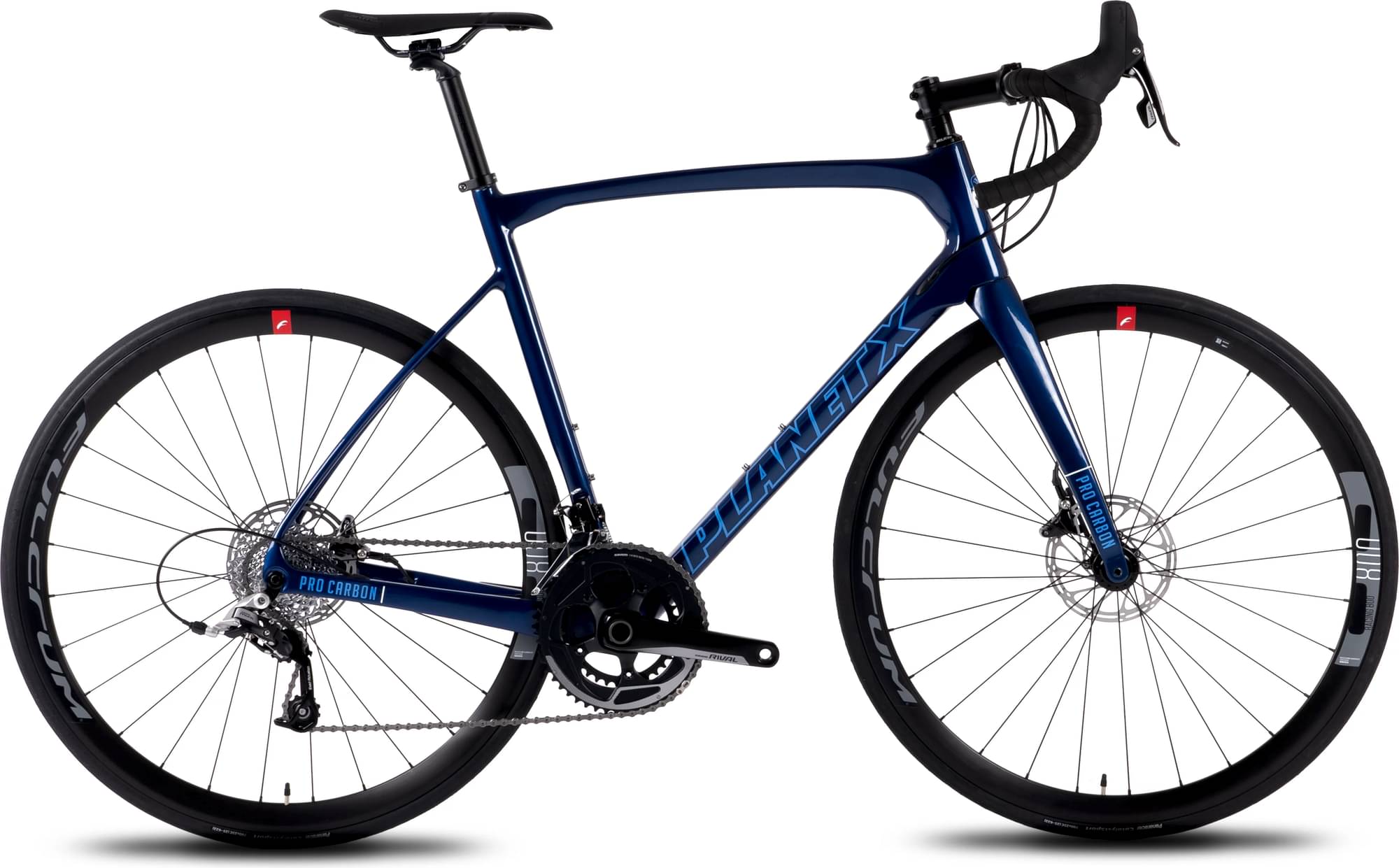

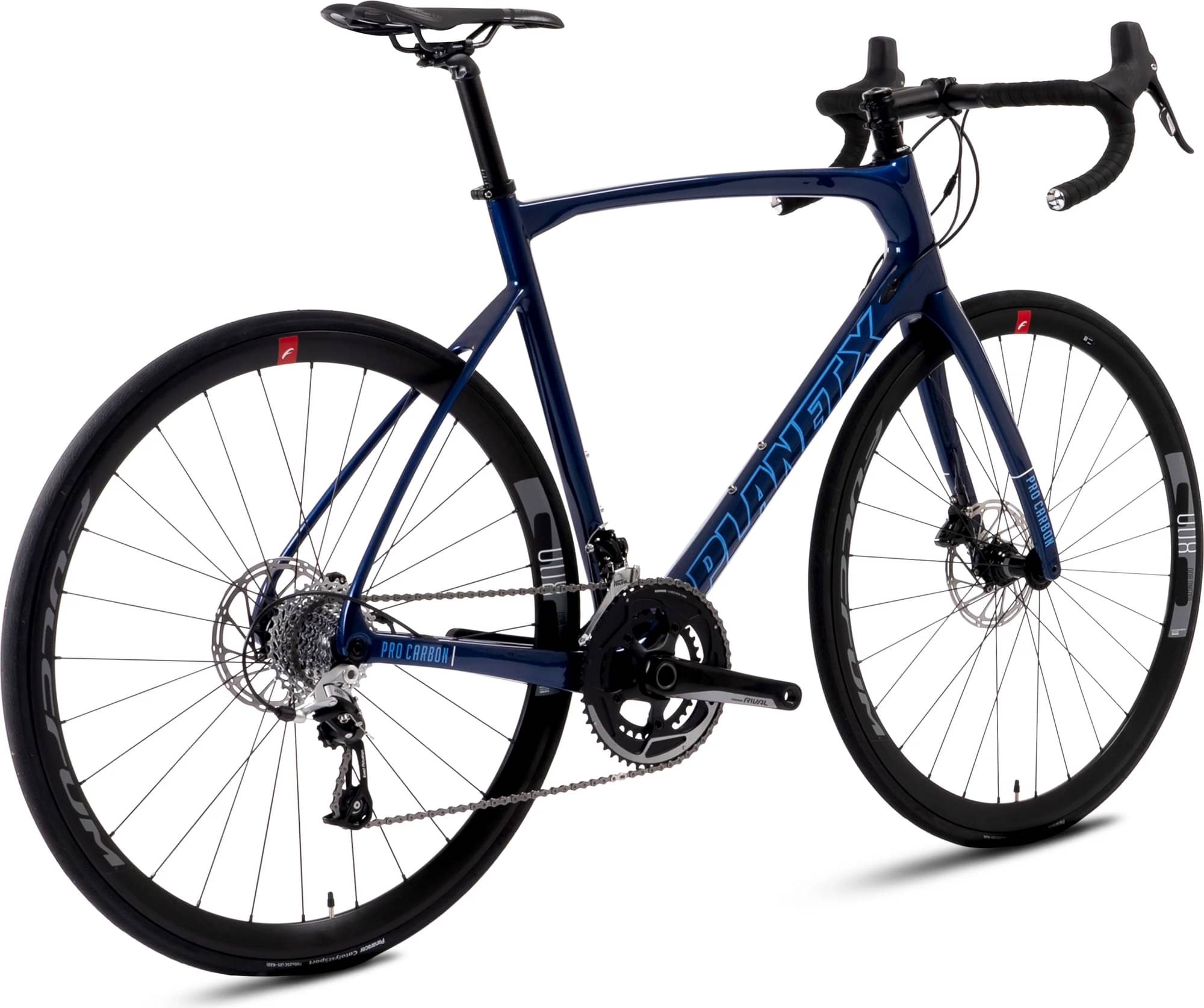

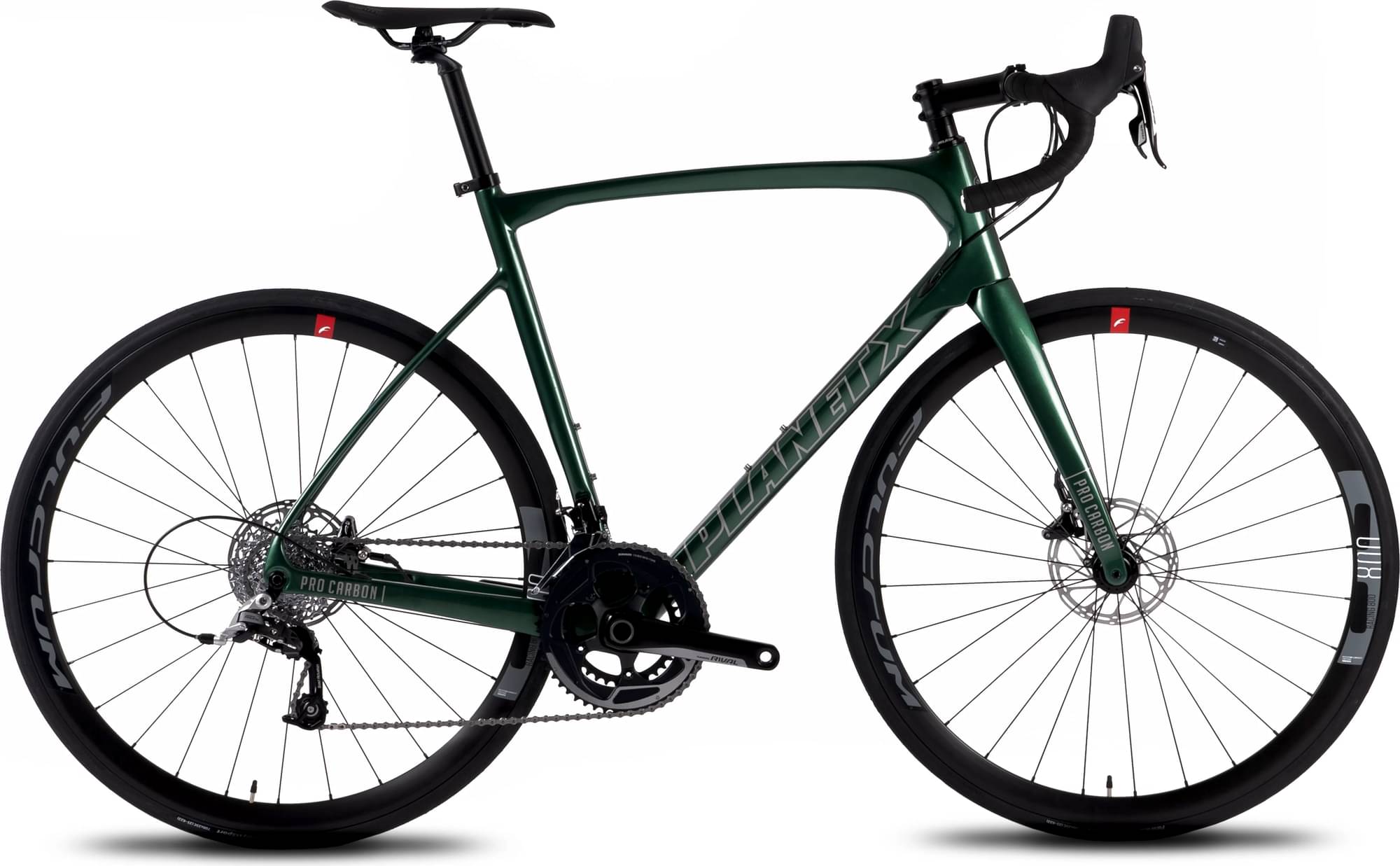

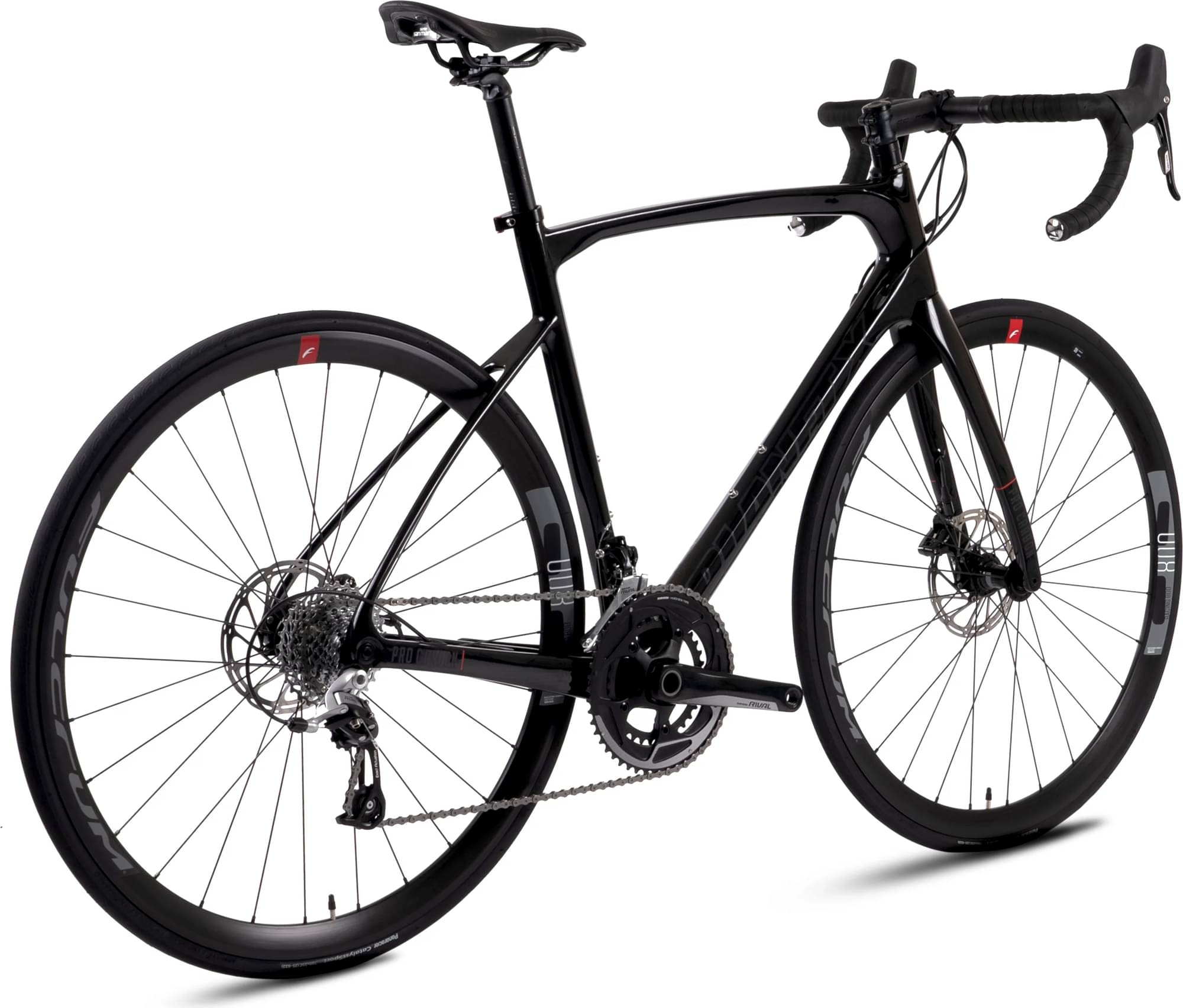

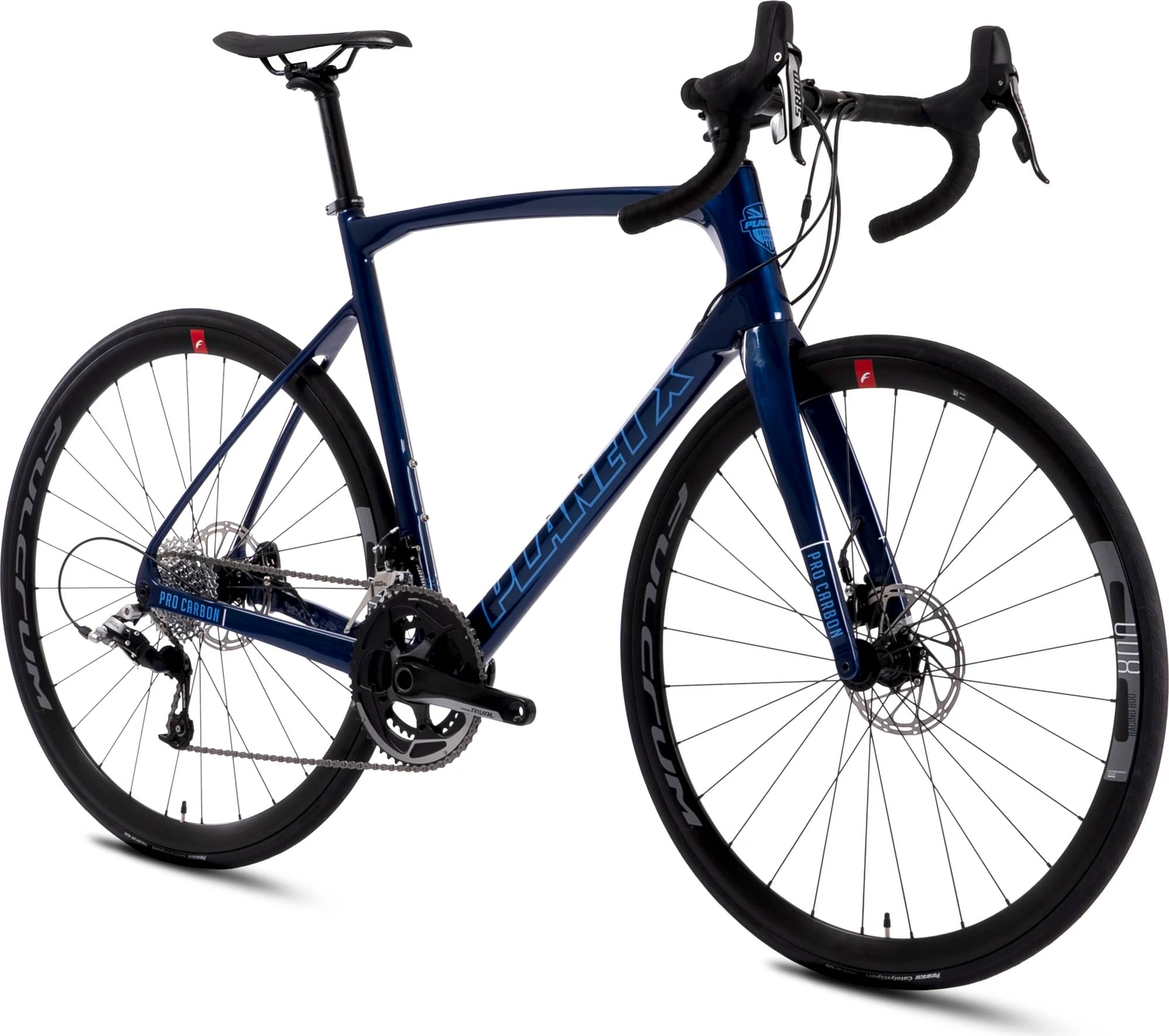

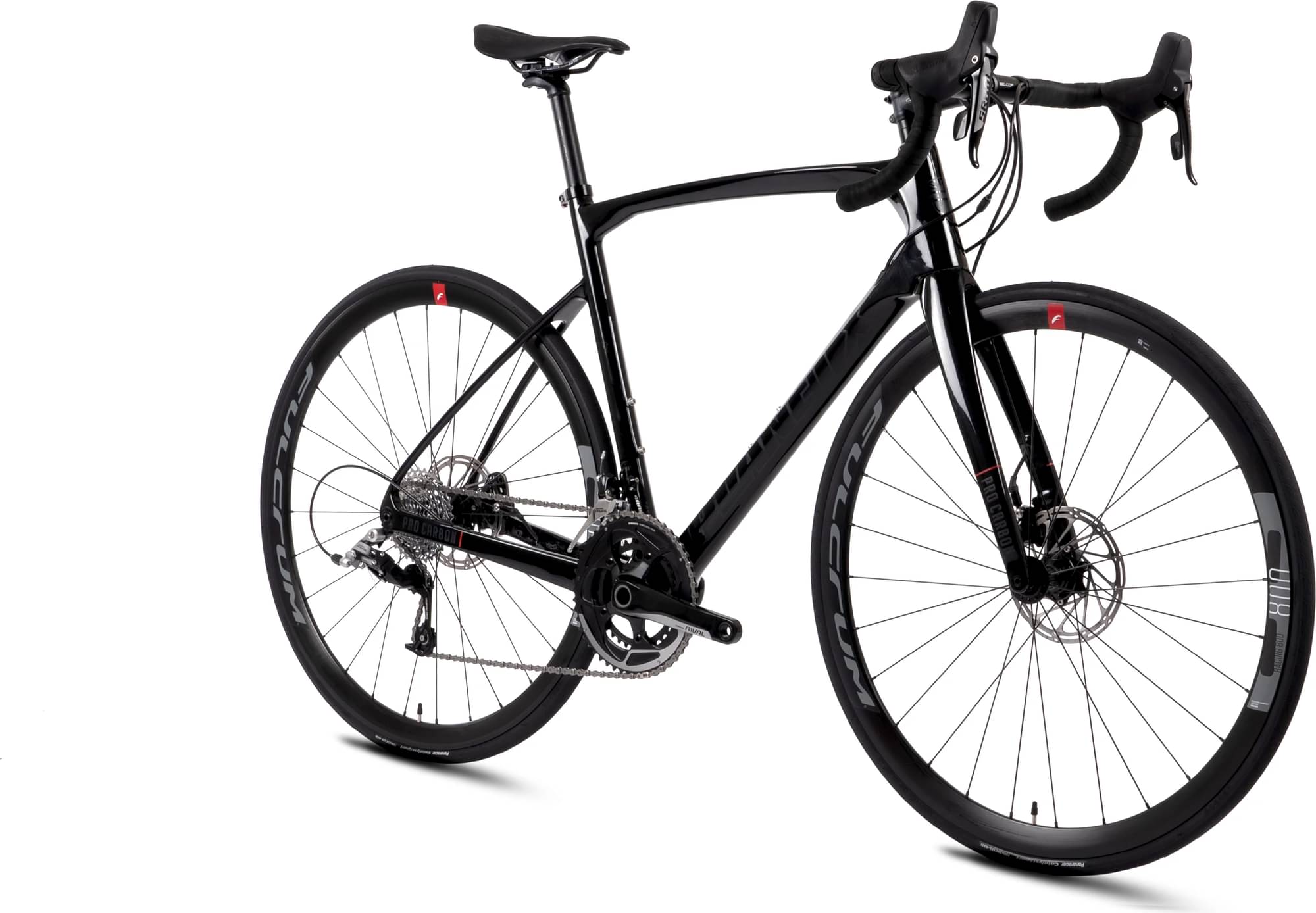

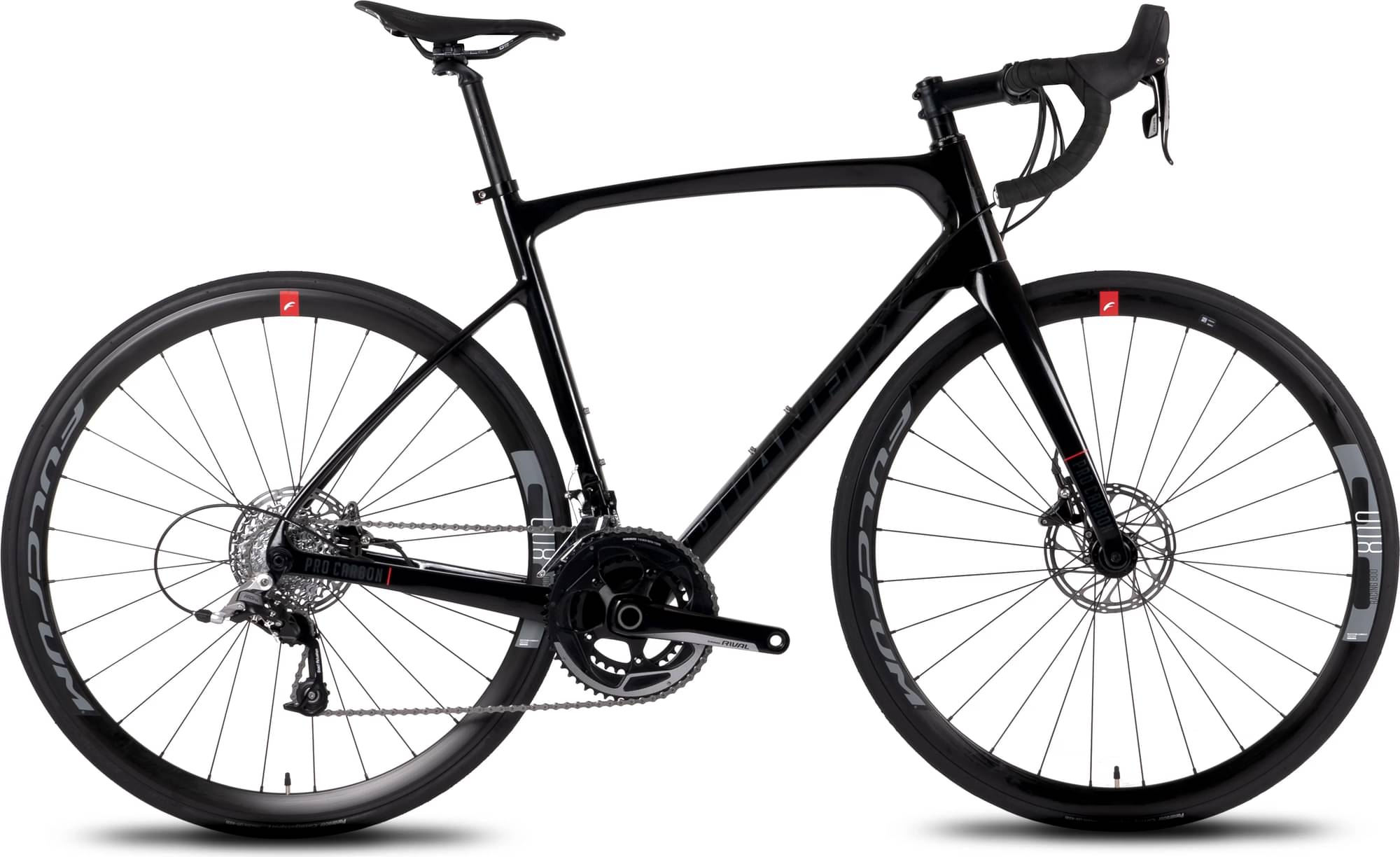

planetx Planet X Pro Carbon Disc SRAM Rival 22 2023
2023 Road
Estimate price |
2,708$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 172cm
MD
170cm - 177cm
LG
175cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Rival 11 Rear Mech / Medium Cage
Front Derailleur
SRAM Rival 11 Front Mech / Braze On
Cassette
SRAM PG1130 Cassette / 11-32T
Crank
SRAM Rival 11 Chainset (No BB) / 172.5mm / 50-34T
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Vision Team 30 Disc CL TL 700c Road Wheelset / Shimano HG
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 470mm XSM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.45 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 580 mm | 582 mm | 595 mm | 606 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 51 mm | 48 mm | 55 mm | 64 mm | 66 mm |
| Stack | 513 mm | 529 mm | 556 mm | 573 mm | 594 mm |
| Reach | 384 mm | 386 mm | 383 mm | 392 mm | 403 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 151 mm | 170 mm | 190 mm |
| Chainstay Length | 407 mm | 407 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 988 mm | 982 mm | 989 mm | 996 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Pro Carbon Disc SRAM Rival 22 is part of the Planetx Pro Carbon model. There are 24 bikes that carry this model name. You can easily view all of the Planetx Pro Carbon bikes models from 2023, here.
Model range prices
Planet X Pro Carbon Disc SRAM Rival 22 2023 is the most economical model, with a starting price of 2432$. Planet X Pro Carbon Shimano Ultegra Di2 2023 on the other hand costs 4378$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Planet X released this model in 2023, its price was 2432$. Doing a quick comparison, we notice that Pro Carbon Disc SRAM Rival 22 price is 37.75% lower than the average cost of a Race bike.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.7 kg (19.18 lbs), the Pro Carbon Disc SRAM Rival 22 model is much heavier than average. In other words, this model is 27.57% heavier than the average Race bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Planet X Pro Carbon Disc SRAM Rival 22 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Planet X Pro Carbon Disc SRAM Rival 22 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
