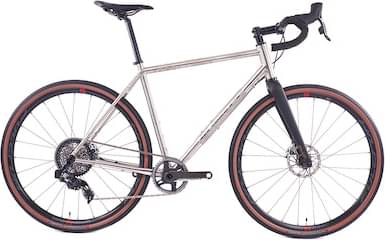

planetx Planet X Tempest SRAM Red AXS XPLR 2022
2022 Road
Estimate price |
5,825$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3Al/ 2.5V Aerospace Titanium
Suspension Fork
Selcof Carbon Gravel Fork / Tapered-12mm Thru
Drivetrain
Rear Derailleur
SRAM Red XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth
Cassette
SRAM XPLR XG-1271 12 Speed Cassette / 10-44 Tooth
Crank
SRAM Red 1 AXS 12 Speed Chainset / 172.5mm / 40 Tooth
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide BSA 68mm
Chain
SRAM Red AXS 12 Speed Chain / 120 Link
Wheels
Rims
Fulcrum Rapid Red 500 700c Disc Centrelock Clincher Wheelset / SRAM AXS 12 Speed 700c
Tires
Hutchinson Toureg 700c Tubeless Ready Tyre / 40mm / Tan
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Sterrato V2 Flared Gravel Handlebar / 42cm
Seat
Saddle
San Marco Shortfit Open-fit Start Up Wide Xlite
Seatpost
Selcof Delta HM Carbon Seat Post / Matt / 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.44 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 599 mm | 610 mm | 620 mm | 630 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 77 mm | 74 mm | 74 mm | 69 mm | 66 mm |
| Stack | 524 mm | 535 mm | 549 mm | 579 mm | 591 mm |
| Reach | 365 mm | 377 mm | 382 mm | 387 mm | 399 mm |
| Top Tube Length | 512 mm | 527 mm | 542 mm | 562 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 155 mm | 165 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1010 mm | 1021 mm | 1031 mm | 1042 mm | 1053 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Tempest SRAM Red AXS XPLR is a Planetx Tempest model. There are 28 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Planet X Tempest SRAM HRD Rival 1 Titanium 2022 is the cheapest bike model and costs 2188$. Planet X Tempest SRAM Red AXS XPLR 2022 is the most expensive one and costs 5229$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 5229$. Comparing this to the average Gravel bike price, we see that the price is 112.39% higher.
Tempest SRAM Red AXS XPLR components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Planet X Tempest SRAM Red AXS XPLR 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Planet X Tempest SRAM Red AXS XPLR has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Planet X Tempest SRAM Red AXS XPLR bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
