Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Fork RockShox ZEB Select+ -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Zeb Select+ 160 mm
Wheels
Tires
Maxxis Aggressor 29? Tires
Brakes
Brakes
Code R brakes + 200180mm Rotors
Cockpit
Stem
RaceFace Chester Stem 40mm
Handlebar
RaceFace Chester Handlebar 760mm
Grips
RaceFace Half Nelson Grips
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air seat
Seatpost
RaceFace Ride XC seatpost
Fit data
Geometry
Numbers for sizing and ride feel.

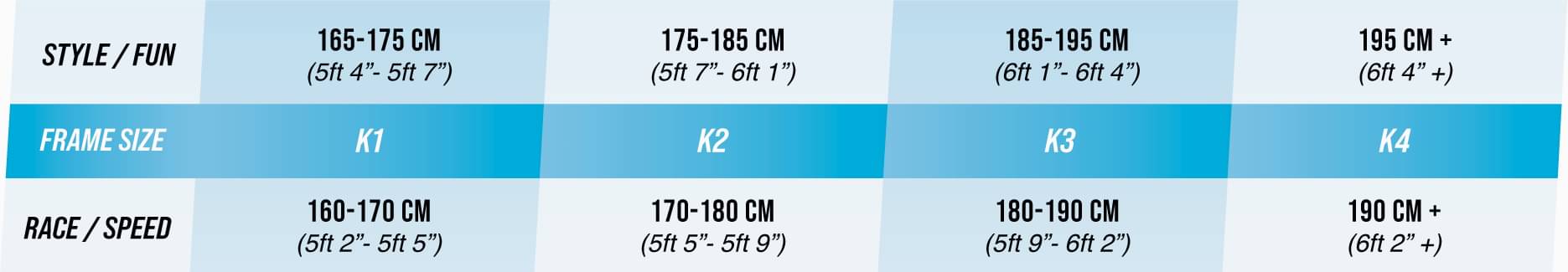

| Size | K1 | K2 | K3 | K4 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.27 mm | 1.2 mm | 1.18 mm |
| Bottom Bracket Height | 371 mm | 371 mm | 371 mm | 371 mm |
| Front Center | 802 mm | 832 mm | 862 mm | 887 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 121 mm | 128 mm | 121 mm | 104 mm |
| Stack | 636 mm | 636 mm | 636 mm | 636 mm |
| Reach | 470 mm | 500 mm | 530 mm | 538 mm |
| Top Tube Length | 587 mm | 617 mm | 647 mm | 672 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 510 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 135 mm | 135 mm | 135 mm | 135 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1284 mm | 1307 mm | 1344 mm | 1369 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm | 3 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

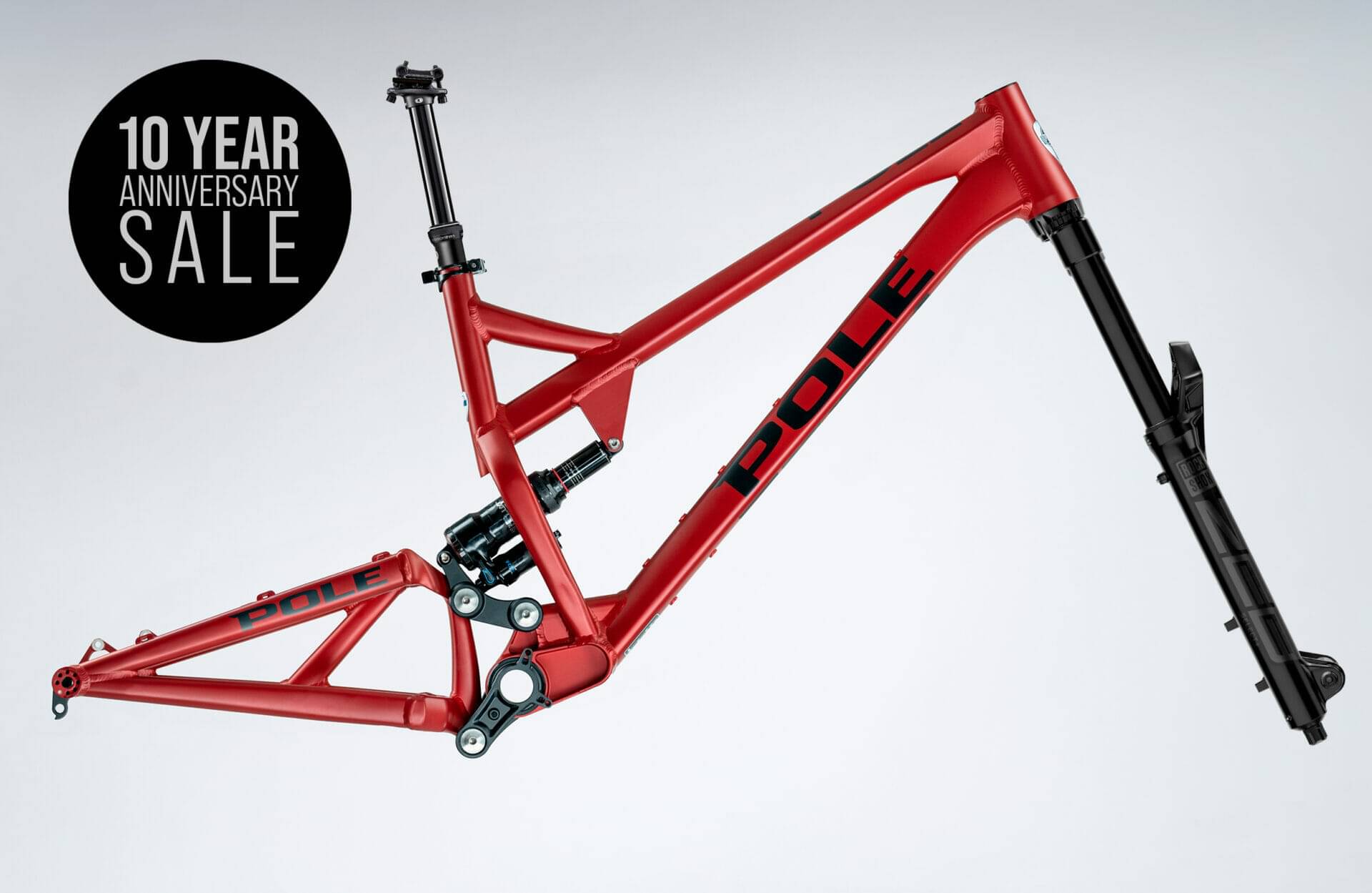

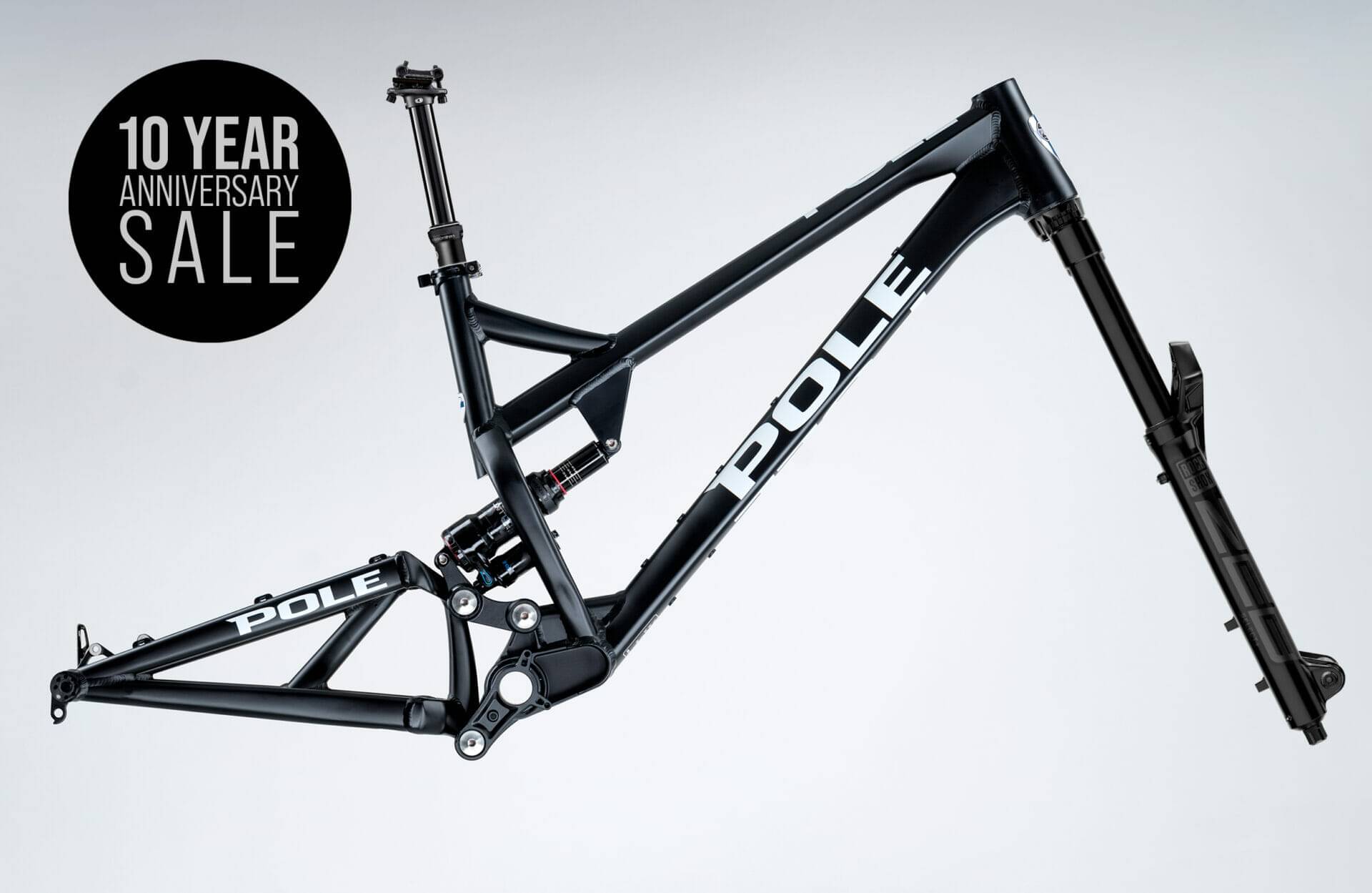

Evolink Framekit completes the Pole Evolink model. There are 25 frames that carry this model name. Take a sneak peek at all Pole Evolink frames models from 2023, by clicking here.
Model range prices
The most economical model, the Pole Evolink Frameset 2023 has a starting price of 1066$. Pole Evolink Framekit 2023 on the other hand is the most expensive at 1723$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro frames
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 1723$. In conclusion, this frame price is 9.98% smaller than the price of the average Enduro frame.
Evolink Framekit components
Fork
This frame has the RockShox ZEB Select+ fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Brakes
When you want to stop the bike in time, the brakes are vital. The Evolink Framekit has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
