Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

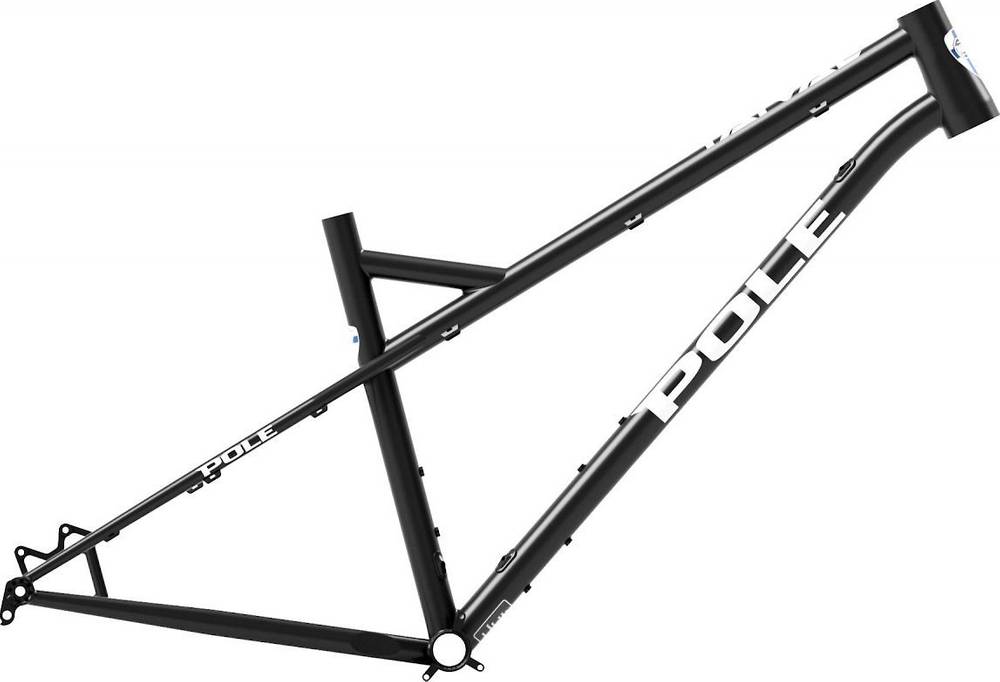

Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset GX, NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Recon Solo Air
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG1130, 11-42 tooth, 11-speed
Crank
SRAM, 170mm length
Bottom Bracket
SRAM GXP
Chain
SRAM PC1110
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss X1900 Spline
Rear Hub
DT Swiss X1900 Spline
Rims
DT Swiss X1900
Spokes
DT Swiss X1900
Tires
Maxxis Ikon, 3C EXO TR
Brakes
Brakes
SRAM Level, 160mm rotors
Brake Levers
SRAM Level
Cockpit
Stem
Race Face
Handlebar
Race Face Chester, 780mm width
Headset
Cane Creek
Seat
Saddle
Pole Cheek Ukko Kokkonen Design
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.1 mm | 1.05 mm | 1.01 mm | 0.97 mm | 0.949 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 764 mm | 793 mm | 827 mm | 857 mm | 877 mm |
| Rake | -96 mm | -96 mm | -99 mm | -99 mm | -105 mm |
| Trail | 285 mm | 285 mm | 288 mm | 288 mm | 295 mm |
| Stack | 651 mm | 651 mm | 660 mm | 660 mm | 669 mm |
| Reach | 590 mm | 620 mm | 653 mm | 683 mm | mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm | 510 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 135 mm | 135 mm | 135 mm | 145 mm | 145 mm |
| Chainstay Length | 435 mm | 439 mm | 443 mm | 447 mm | 451 mm |
| Wheelbase | 1192 mm | 1226 mm | 1264 mm | 1298 mm | 1322 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Taival TR is part of the Pole Taival model. 7 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Taival TR components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Taival TR 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
