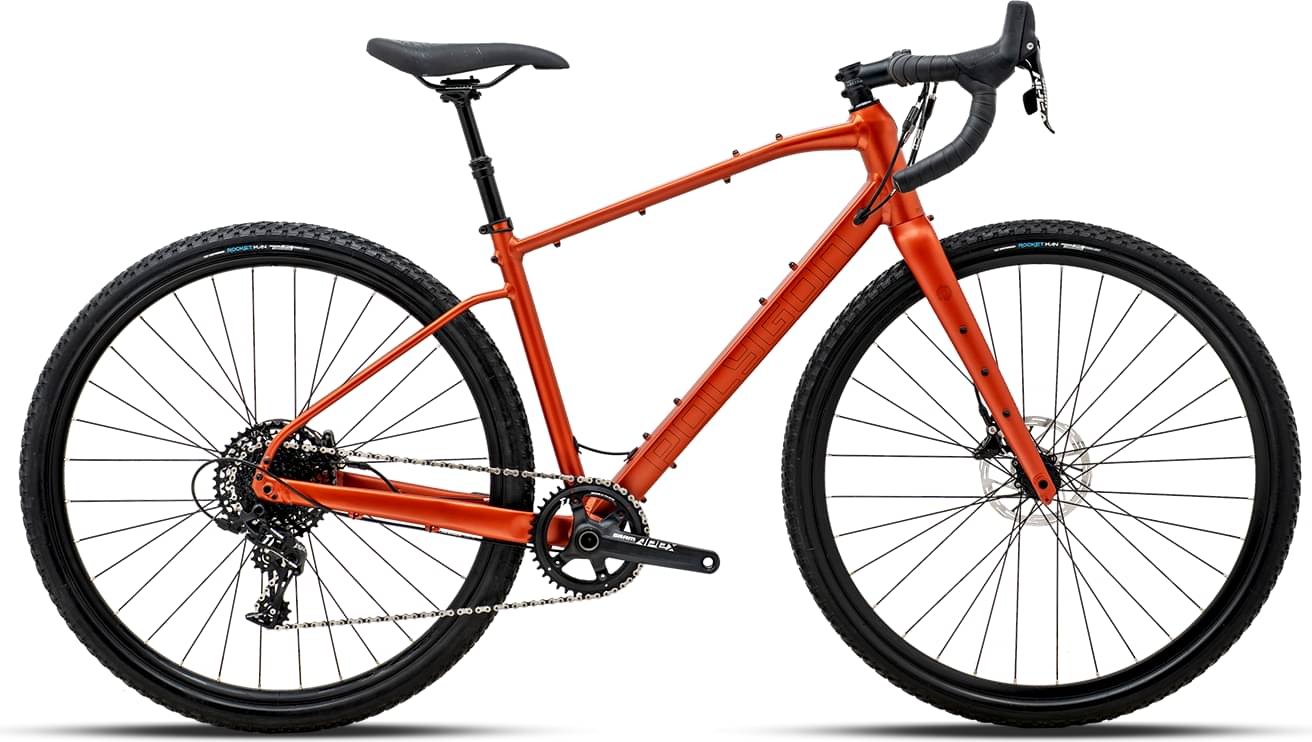

Polygon BEND R7 2023
2023 Road
Estimate price |
1,449$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 164cm
MD
162cm - 176cm
LG
174cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
CARBON RIGID
Drivetrain
Rear Derailleur
SRAM APEX 1 11-SPEED
Shift Levers
SRAM APEX 1 11-SPEED BRIFTER
Cassette
SRAM PG-1130 11-SPEED 11-42T
Crank
SRAM APEX 1 40T, MAX: 42T
Bottom Bracket
SRAM GXP
Chain
KMC X11-1 FOR 11-SPEED
Pedals
ONE PIECE PP FLAT
Wheels
Front Hub
F: ALLOY DISC BRAKE 12x100mm 32H CL / R: ALLOY DISC BRAKE 12x142mm 32H CL FOR SPROCKET
Rear Hub
F: ALLOY DISC BRAKE 12x100mm 32H CL / R: ALLOY DISC BRAKE 12x142mm 32H CL FOR SPROCKET
Rims
ALLOY DOUBLE WALL FV H: 18 622X25 32H FOR TYRE 622-44/76 DISC TLR
Spokes
F: STAINLESS 14G NDS:292 & DS:294 W/ NIPPLE BRASS / R: STAINLESS 14G NDS:294 & DS:292 W/ NIPPLE BRASS
Tires
VEE ROCKETMAN 700x44C 622x44 TLR
Brakes
Brakes
SRAM APEX 1 HYDRAULIC DISC
Brake Levers
SRAM APEX 1
Cockpit
Stem
Entity Expert, 70mm Length, 31.8mm Clamp, 7-Degree
Handlebar
ALLOY FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mmREAR, B/R: 77mm
Headset
FSA NO. 42 W/ SEALED BEARING
Seat
Saddle
FLUX2, CR-MO ø 7mm
Seatpost
TRANX-Z JD-YSP38J T: 70mm, DxL: 27,2 x 315mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 600 mm | 626 mm | 648 mm | 680 mm |
| Rake | 50 mm | 41 mm | 50 mm | 51 mm |
| Trail | 74 mm | 83 mm | 71 mm | 69 mm |
| Stack | 568 mm | 617 mm | 626 mm | 659 mm |
| Reach | 369 mm | 387 mm | 401 mm | 421 mm |
| Top Tube Length | 525 mm | 555 mm | 585 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 165 mm | 200 mm | 235 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1035 mm | 1061 mm | 1083 mm | 1115 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 699 mm | 741 mm | 786 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 162 cm | 174 cm | 187 cm |
| Rider Max Height | 164 cm | 176 cm | 189 cm | 195 cm |
About this model
BEND R7 belongs to the Polygon Bend model. Polygon launched 23 bikes of this model so far. You can easily view all of the Polygon Bend bikes models from 2023, here.
Model range prices
Polygon BEND R2 2023 is the most economical model, with a starting price of 979$. Polygon BEND V9X 2023 on the other hand costs 3999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Polygon released this model in 2023, its price was 1449$. Comparing this to the average Gravel bike price, we see that the price is 69.91% lower.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.45 kg (18.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 10.8 kg (23.81 lbs), the BEND R7 model is much heavier than average. In conclusion, the average Gravel bike weighs 27.81% less than BEND R7.
BEND R7 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Polygon BEND R7 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
BEND R7 comes in 4 sizes, that range from 150 cm – 195 cm (4.92 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Polygon BEND R7 comes with a dropper post. Therefore, climbing or descending will be a breeze.
