Polygon Bend R7 2024
2024 Road
Estimate price |
1,499$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX Gravel Frame, Internal Cable Routing, Threaded BSA BB, 12x142mm Thru-Axle, Flat Mount Disc
Suspension Fork
Polygon Full Carbon Fork, Rigid, 12x100mm Thru-Axle, Flat Mount Disc
Drivetrain
Rear Derailleur
SRAM Apex 1, 11-Speed
Shift Levers
SRAM Apex 1, 11-Speed
Cassette
SRAM PG-1130, 11-42T, 11-Speed
Crank
SRAM Apex, 11-Speed, 40T Chainring, S-M: 165mm, L-XL: 170mm
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11, 11-Speed
Wheels
Rims
Front: Alloy Double Wall, 32H, 12x100mm, Rear: Alloy Double Wall, 28mm internal width, 32H
Tires
Front: Vee Tire Co. Rocketman, 700x44C, 622x44, Tubeless Ready, Rear: Vee Tire Co. Rocketman, 700x44C, 622x44, Tubeless Ready
Brakes
Brakes
Front: SRAM Apex, Hydraulic Disc Brake, 160mm Paceline Rotor, Rear: SRAM Apex, Hydraulic Disc Brake, 160mm Paceline Rotor
Cockpit
Stem
Entity Expert, 45mm Length, 31.8mm Clamp, 7-Degree

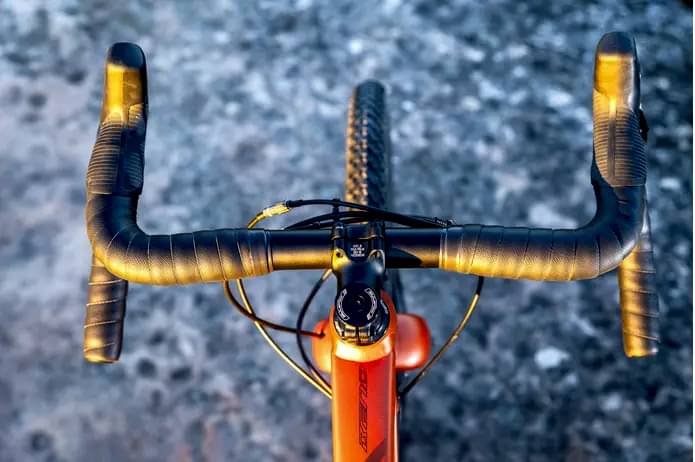

Handlebar
Entity Expert, 31.8mm Clamp Diameter, 125mm Rise, 16 Degree Flare, 420mm Width (S-M) 440mm Width (L-XL)
Seat
Saddle
Entity Steel ø 7mm
Seatpost
Tranz-X 70mm Dropper seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.62 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 600 mm | 628 mm | 648 mm | 720 mm |
| Rake | 50 mm | 49 mm | 50 mm | 89 mm |
| Trail | 74 mm | 75 mm | 71 mm | 29 mm |
| Stack | 568 mm | 617 mm | 626 mm | 659 mm |
| Reach | 369 mm | 380 mm | 401 mm | 421 mm |
| Top Tube Length | 525 mm | 555 mm | 585 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 165 mm | 200 mm | 235 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 405 mm |
| Wheelbase | 1035 mm | 1063 mm | 1083 mm | 1115 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 406 mm | 450 mm | 494 mm | 535 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Bend R7 is part of the Polygon Bend model. There are 23 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Polygon Bend R2 2024 has a starting price of 891$. Polygon Bend V9X 2024 on the other hand is the most expensive at 3699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Polygon released this model in 2024, its price was 1499$. Doing a quick comparison, we notice that Bend R7 price is 64.24% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
The average weight for Gravel bikes is 8.45 kg (18.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 10.8 kg (23.81 lbs), Polygon bike is much heavier than average. In conclusion, the average Gravel bike weighs 27.81% less than Bend R7.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Bend R7 components
Fork material
Bend R7 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Bend R7 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Polygon Bend R7 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Polygon Bend R7 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
