Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 164cm
MD
162cm - 176cm
LG
174cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
CARBON RIGID
Drivetrain
Rear Derailleur
SRAM RIVAL XPLR ETAP AXS 12-SPEED
Shift Levers
SRAM RIVAL ETAP AXS 1x12-SPEED BRIFTER
Cassette
SRAM XG-1251 12 SPEED 10-44T
Crank
SRAM RIVAL 1 WIDE 40T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM RIVAL 1
Pedals
ONE PIECE PP FLAT
Wheels
Front Hub
F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR
Rear Hub
F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR
Rims
CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR
Spokes
F: STAINLESS DOUBLE BUTTED 14G NDS:286mm DS:288mm W/ 16mm ALLOY NIPPLE / R: STAINLESS DOUBLE BUTTED 14G NDS:288mm DS:285mm W/ 16mm ALLOY NIPPLE
Tires
VEE ROCKETMAN 700x44C 622x44 TLR
Brakes
Brakes
SRAM RIVAL HYDRAULIC DISC
Brake Levers
SRAM RIVAL eTap AXS
Cockpit
Stem
Entity Expert, 70mm Length, 31.8mm Clamp, 7-Degree
Handlebar
ENTITY XPERT FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mm, BR: 77mm
Headset
FSA NO. 42 W/ SEALED BEARING
Seat
Saddle
ENTITY, STEEL ø 7mm
Seatpost
REVERB AXS XPLR T: 75mm, DxL: 27,2 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 600 mm | 626 mm | 648 mm | 680 mm |
| Rake | 50 mm | 41 mm | 50 mm | 51 mm |
| Trail | 74 mm | 83 mm | 71 mm | 69 mm |
| Stack | 568 mm | 617 mm | 626 mm | 659 mm |
| Reach | 369 mm | 387 mm | 401 mm | 421 mm |
| Top Tube Length | 525 mm | 555 mm | 585 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 165 mm | 200 mm | 235 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1035 mm | 1061 mm | 1083 mm | 1115 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 699 mm | 741 mm | 786 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 162 cm | 174 cm | 187 cm |
| Rider Max Height | 164 cm | 176 cm | 189 cm | 195 cm |
About this model

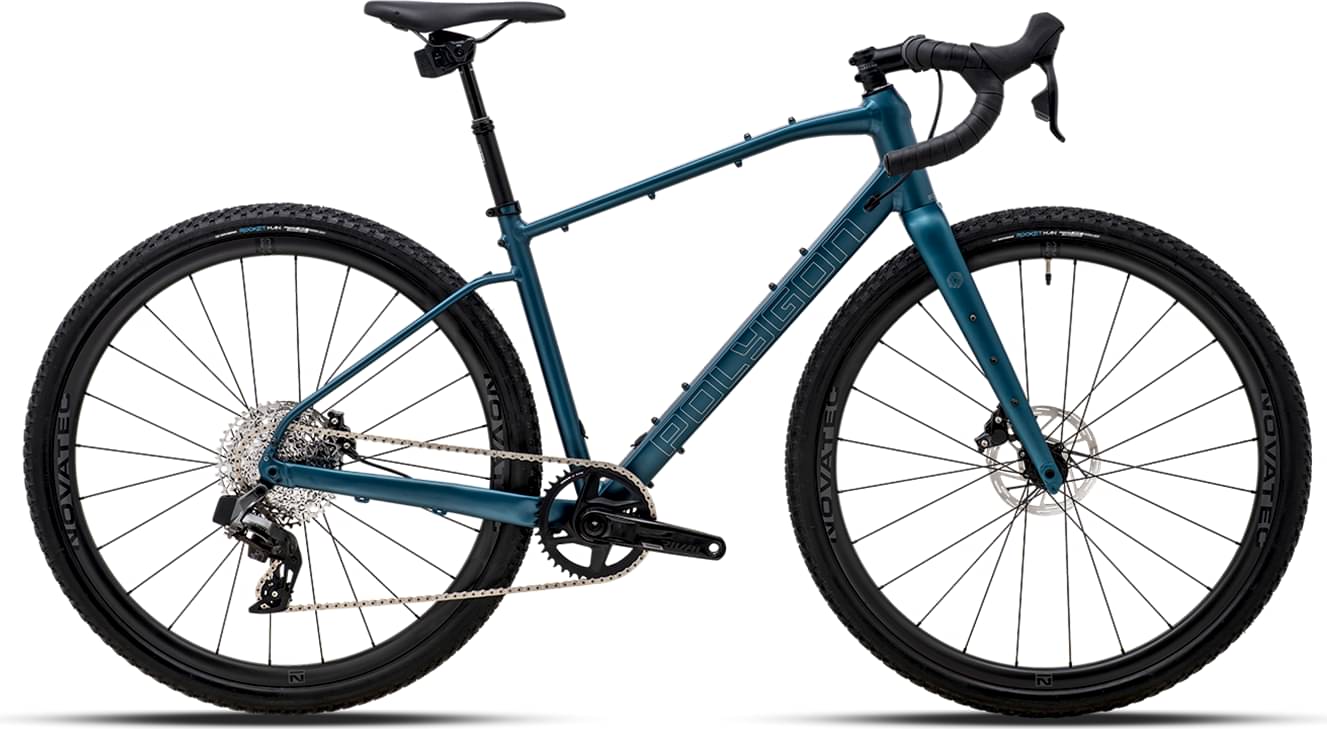

BEND R9X belongs to the Polygon Bend model. Polygon released 23 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Polygon BEND R2 2023 is the most economical model, with a starting price of 979$. Polygon BEND V9X 2023 on the other hand costs 3999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 2899$. In conclusion, this bike price is 17.75% higher than the price of the average Gravel bike.
BEND R9X components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Polygon BEND R9X 2023, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BEND R9X comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 150 cm – 195 cm (4.92 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the BEND R9X. Therefore, climbing or descending will be a breeze.
