Bike details
Overview
Key information split into simple groups.

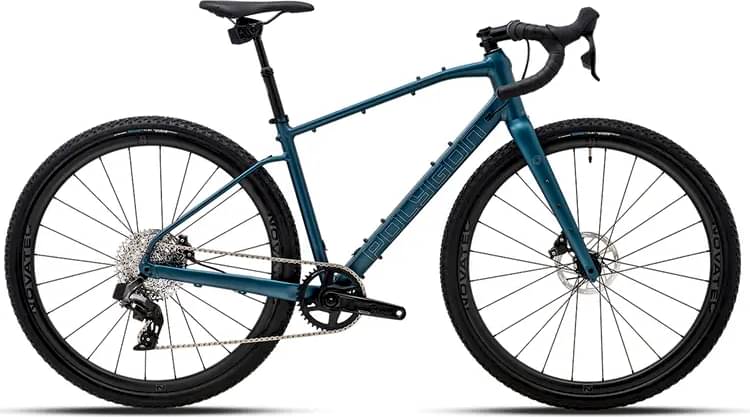

Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX Gravel Frame, Internal Cable Routing, BB86 Press Fit BB, 12x142mm Thru-Axle, Flat Mount Disc
Suspension Fork
Polygon Full Carbon Fork, Rigid, 12x100mm Thru-Axle, Flat Mount Disc
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTap AXS, 12-Speed
Shift Levers
SRAM Rival ETAP AXS, 12-Speed
Crank
SRAM Rival 1, Wide, 40T, S-M: 165mm, L-XL: 170mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM Rival 1
Wheels
Rims
Front: Novatec G24 Carbon Rim, 724g, 28mm Depth, 24mm Internal Width, Novatec D791, 12X100mm, 24H, CL Hub, Stainless double butted spokes, Alloy Nipple, Tubeless Tape Installed, Rear: Novatec G24 Carbon Rim, 851g, 28mm Depth, 24mm Internal Width, Novatec D92, 12x142mm 24H CL Hub Stainless Double Butted Spokes, Alloy Nipple, Tubeless Tape Installed
Tires
Front: Vee Tire Co. Rocketman, 700x44C, 622x44, Tubeless Ready, Rear: Vee Tire Co. Rocketman, 700x44C, 622x44, Tubeless Ready
Brakes
Brakes
Front: SRAM Rival, Hydraulic Disc Brake, 160mm Paceline Rotor, Rear: SRAM Rival, Hydraulic Disc Brake, 160mm Paceline Rotor
Cockpit
Stem
Entity Expert, 45mm Length, 31.8mm Clamp, 7-Degree

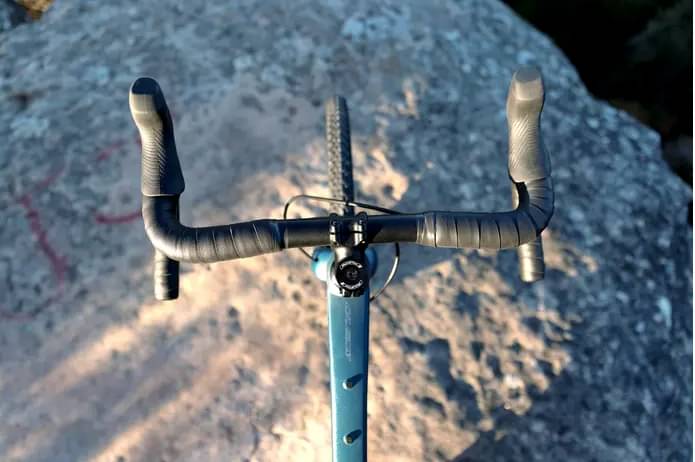

Handlebar
Entity Expert, 31.8mm Clamp Diameter, 125mm Rise, 16 Degree Flare, 420mm Width (S-M) 440mm Width (L-XL)
Seat
Saddle
Entity STEEL ø 7mm
Seatpost
RockShox Reverb AXS XPLR, 75mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.62 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 600 mm | 628 mm | 648 mm | 720 mm |
| Rake | 50 mm | 49 mm | 50 mm | 89 mm |
| Trail | 74 mm | 75 mm | 71 mm | 29 mm |
| Stack | 568 mm | 617 mm | 626 mm | 659 mm |
| Reach | 369 mm | 380 mm | 401 mm | 421 mm |
| Top Tube Length | 525 mm | 555 mm | 585 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 165 mm | 200 mm | 235 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 405 mm |
| Wheelbase | 1035 mm | 1063 mm | 1083 mm | 1115 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 406 mm | 450 mm | 494 mm | 535 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

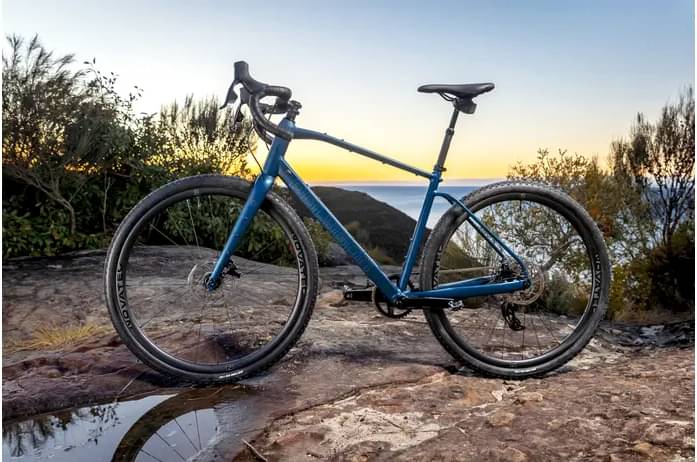

Bend R9X is part of the Polygon Bend model. Polygon launched 23 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Polygon Bend R2 2024 is the cheapest bike model and costs 891$. Polygon Bend V9X 2024 is the most expensive one and costs 3699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Polygon Bend R9X price was 2999$. In conclusion, this bike price is 21.81% higher than the price of the average Gravel bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Bend R9X components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Polygon Bend R9X 2024, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Bend R9X comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Polygon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
