Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUTECH XC SPORT 27.5"
Suspension Fork
SUNTOUR XCE, 100MM 27.5" TRAVEL
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO RD-TX800 7/8-SPEED DA
Shift Levers
SHIMANO SL-M315 3X8 ALTUS
Cassette
SHIMANO CS-HG200 9-SPEED 11-36T
Crank
PROWHEEL TA-CQ68 42/34/24T 170MM
Bottom Bracket
CARTRIDGE BB
Chain
KMC Z-7 8-SPEED
Wheels
Rims
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS
Tires
PERFORMANCE TIRE 27.5" X2.1
Brakes
Brakes
ALHONGA HJ-OD07 HYD D-BRAKE
Cockpit
Stem
ENTITY OE E: 45MM, BB: 31.8MM
Handlebar
STEEL W:680MM R:40MM BB:31.8MM
Seat
Saddle
FOMING STEEL RAIL
Seatpost
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.43 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm |
| Front Center | 640 mm | 660 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 599.1 mm | 603.8 mm | 608.5 mm |
| Reach | 389.7 mm | 408.2 mm | 426 mm |
| Top Tube Length | 571 mm | 591 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 456 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1071 mm | 1092 mm | 1111 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 706 mm | 748 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm |

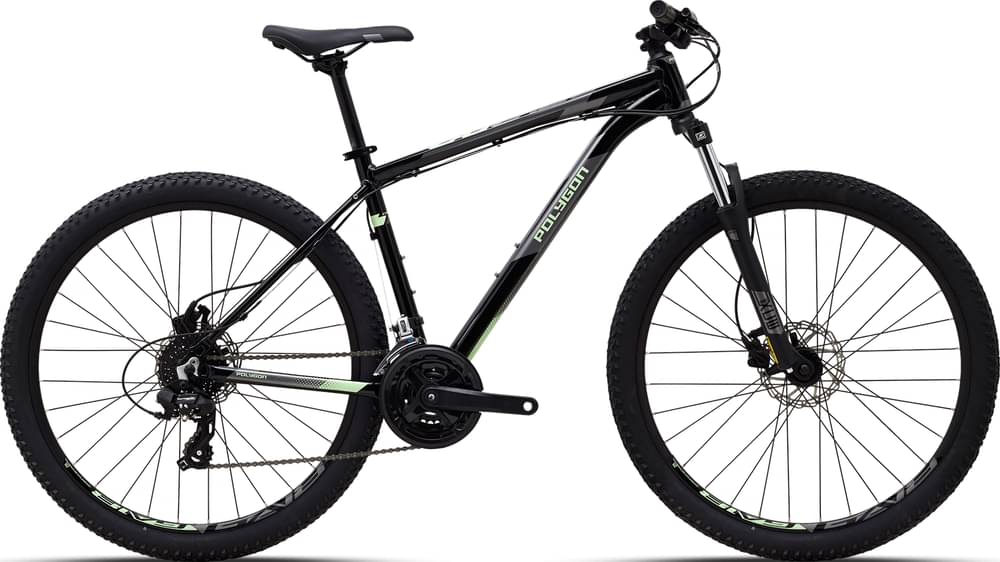

Model Overview
CASCADE 4 is part of the Polygon Cascade model. Polygon released 15 bikes variations of this model so far. You can easily view all of the Polygon Cascade bikes models from 2021, here.
Model range prices
The most economical model, the Polygon CASCADE 2 2021 has a starting price of 469$. Polygon CASCADE 4 2021 on the other hand is the most expensive at 599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 599$. Doing a quick comparison, we notice that CASCADE 4 price is 218.03% smaller than the average cost of a Crosscountry bike.
CASCADE 4 components
Fork
Polygon CASCADE 4 2021 bike is equipped with the SunTour fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the CASCADE 4 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CASCADE 4 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
CASCADE 4 comes in 3 sizes, that range from 152 cm – 185 cm (4.99 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
