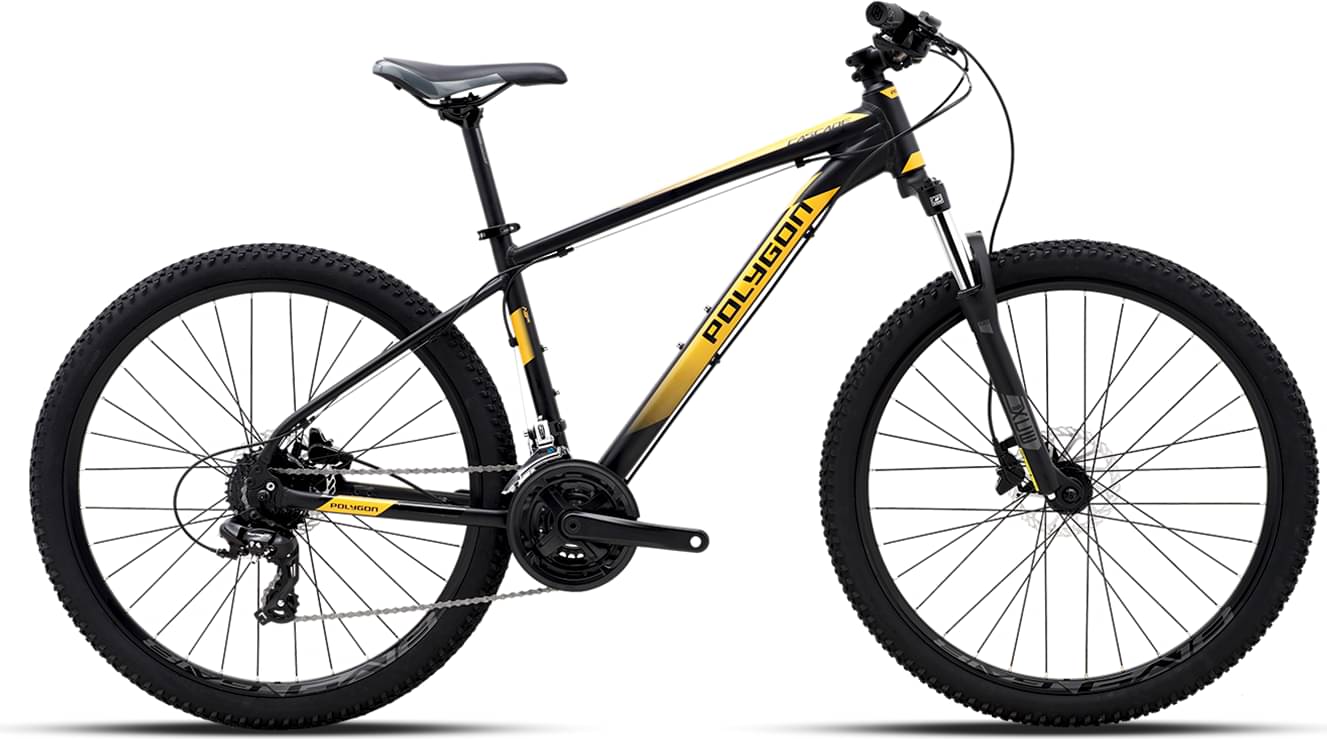

Polygon CASCADE 4 2023
2023 Mountain
Estimate price |
499$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SUNTOUR XCE28 100mm TRAVEL
Drivetrain
Rear Derailleur
SHIMANO RD-TX800 8-SPEED SGS DIRECT ATTACH
Front Derailleur
Shimano Altus FD-M313
Shift Levers
SHIMANO SL-M315 ALTUS 3x8 SPEED RAPID FIRE
Cassette
SHIMANO CS-HG200 8-SPEED 12-32T CASSETTE SPROCKET
Crank
PROWHEEL STEEL CRANK 42x34x24T
Bottom Bracket
CARTRIDGE BEARING W/ CAGED BEARING & 122.5mm SQUARE AXLE
Chain
KMC Z-8.3
Pedals
PP CAGE W/ REFLECTOR
Wheels
Front Hub
F: ALLOY DISC BRAKE QR9x100mm 32H 6B / R: ALLOY DISC BRAKE QR9x135mm 32H 6B FOR CASSETE SPROCKET
Rear Hub
F: ALLOY DISC BRAKE QR9x100mm 32H 6B / R: ALLOY DISC BRAKE QR9x135mm 32H 6B FOR CASSETE SPROCKET
Rims
ALLOY DOUBLE WALL AV H: 20 584x20 32H FOR TIRE 584-28/62 DISC
Spokes
STEEL 14G NDS:270 & DS:272 W/ UCP BRASS
Tires
DELI 27.5"x2.1"
Brakes
Brakes
CLARKS CLOUT, HYDRAULIC DISC BRAKE
Brake Levers
INCLUDE WITH BRAKE SET
Cockpit
Stem
Entity OE, Alloy, 45mm
Handlebar
STEEL, W: 680MM, B: 31.8MM, R/D: 40MM
Headset
ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30
Seat
Saddle
MTB SADDLE, STEEL ø7mm
Seatpost
ENTITY, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.43 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm |
| Front Center | 640 mm | 660 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 599.1 mm | 603.8 mm | 608.5 mm |
| Reach | 389.7 mm | 408.2 mm | 426 mm |
| Top Tube Length | 571 mm | 591 mm | 610 mm |
| Seat Tube Angle | 73 ° | 72 ° | 73 ° |
| Seat Tube Length | 406 mm | 456 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1071 mm | 1092 mm | 1111 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 706 mm | 748 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm |
About this model
CASCADE 4 completes the Polygon Cascade model. 15 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Polygon CASCADE 3 2023 is the most affordable bike of this model and has a price of 429$. On the other hand, Polygon CASCADE 2 2023, is the most expensive and costs 519$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 499$. Comparing the average cost of a Crosscountry bike to this one, you will see that CASCADE 4 price is 281.76% smaller.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 15.1 kg (33.29 lbs), the CASCADE 4 model is much heavier than average. In short, the average Crosscountry bike weight is 21.77% lower than this one.
CASCADE 4 components
Fork
The CASCADE 4 comes factory-installed with the Suntour XCE fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the CASCADE 4 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon CASCADE 4 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 152 cm – 185 cm (4.99 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
