Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset Saint, Race Face -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX FRONT & ACX REAR DOWNHILL FRAME, 200MM TRAVEL, 157MM O.L.D.
Suspension Fork
FOX FACTORY 40 FLOAT, 200MM TRAVEL
Rear Shock
FOX FACTORY FLOAT X2 (9.50”x3.00”, 10x22.2mm hardwares)
Drivetrain
Rear Derailleur
SHIMANO SAINT RD-M820 SS FOR DH
Front Derailleur
N/A
Shift Levers
SHIMANO SAINT SL-M820
Cassette
SHIMANO CS-5700
Crank
RACE FACE ATLAS 36T, 165MM
Bottom Bracket
RACE FACE BSA FOR 83MM BB SHELL
Chain
SHIMANO CN-HG95
Chain Guide
e*thirteen LG1
Pedals
None
Wheels
Front Hub
e*thirteen LG1+ wheelset
Rear Hub
e*thirteen LG1+ wheelset
Rims
E13 LG1+
Spokes
e*thirteen LG1+ wheelset
Tires
SCHWALBE MAGIC MARY 27.5”X2.50”
Brakes
Brakes
SHIMANO SAINT BR-M820, METAL PAD W/ FIN
Brake Levers
Shimano Saint BR-M820
Cockpit
Stem
RACE FACE ATLAS DM 35, E:50MM
Handlebar
RACE FACE ATLAS 35, W:800MM R:35MM
Grips
Lock-on
Headset
FSA NO.57E-1
Seat
Saddle
RACE FACE ATLAS RAILED
Seatpost
RACE FACE CHESTER, 30.9MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | XL High | LG Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.53 mm | 1.386 mm | 1.429 mm | 1.319 mm | 1.249 mm | 1.358 mm | 1.285 mm |
| Bottom Bracket Height | 364.7 mm | 353.6 mm | 364.7 mm | 353.5 mm | 364.7 mm | 364.7 mm | 353.3 mm | 353.2 mm |
| Front Center | 763 mm | 763 mm | 791 mm | 791 mm | 813 mm | 838 mm | 813 mm | 793 mm |
| Rake | 57 mm | 52 mm | 57 mm | 53 mm | 57 mm | 57 mm | 52 mm | 12 mm |
| Trail | 117 mm | 129 mm | 117 mm | 127 mm | 117 mm | 117 mm | 128 mm | 173 mm |
| Stack | 593.4 mm | 599.2 mm | 593.4 mm | 599.5 mm | 593.4 mm | 593.4 mm | 599.6 mm | 599.9 mm |
| Reach | 400.3 mm | 391.6 mm | 428 mm | 419.5 mm | 450 mm | 475 mm | 441.6 mm | 466.8 mm |
| Top Tube Length | 554.8 mm | 559 mm | 582.5 mm | 586.8 mm | 604.5 mm | 604.5 mm | 608.9 mm | 634 mm |
| Seat Tube Angle | 75.5 ° | 75.4 ° | 75.5 ° | 75.4 ° | 75.5 ° | 75.5 ° | 75.4 ° | 75.4 ° |
| Seat Tube Length | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm |
| Head Tube Angle | 63 ° | 62.2 ° | 63 ° | 62.3 ° | 63 ° | 63 ° | 62.3 ° | 62.3 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 441 mm | 445 mm | 441 mm | 445 mm | 441 mm | 441 mm | 445 mm | 445 mm |
| Wheelbase | 1204 mm | 1208 mm | 1232 mm | 1236 mm | 1254 mm | 1279 mm | 1258 mm | 1238 mm |
| Bottom Bracket Drop | 6 mm | 4 mm | 6 mm | 5 mm | 6 mm | 6 mm | 5 mm | 5 mm |
| Standover Height | 675 mm | 671 mm | 675 mm | 669 mm | 673 mm | 673 mm | 668 mm | 668 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

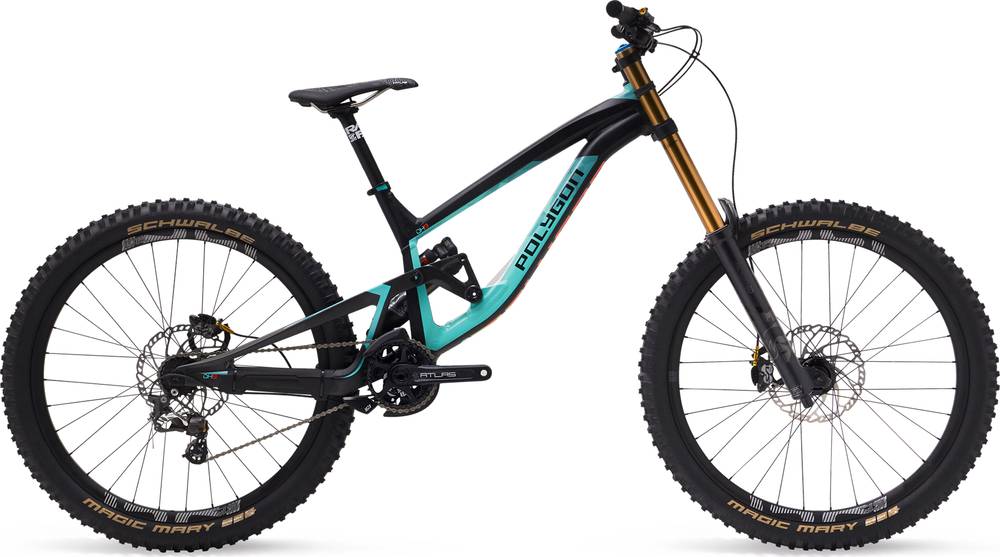

COLLOSUS DH9 is part of the Polygon Collosus model. There are 20 bikes that carry this model name. You can easily view all of the Polygon Collosus bikes models from 2019, here.
Model range prices
The most economical model, the Polygon Collosus N9 XX1 2019 has a starting price of 4499$. Polygon COLLOSUS DH9 TEAM 2019 on the other hand is the most expensive at 7499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 5599$. If we compare this with the average Downhill bike cost we notice that the price is 65.11% more expensive.
Overview of components
Fork
Polygon COLLOSUS DH9 2019 bike is equipped with the Fox Factory Float 40 fork, and has 200mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the FOX FACTORY FLOAT X2 (9.50”x3.00” model, with a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the COLLOSUS DH9 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The COLLOSUS DH9 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
