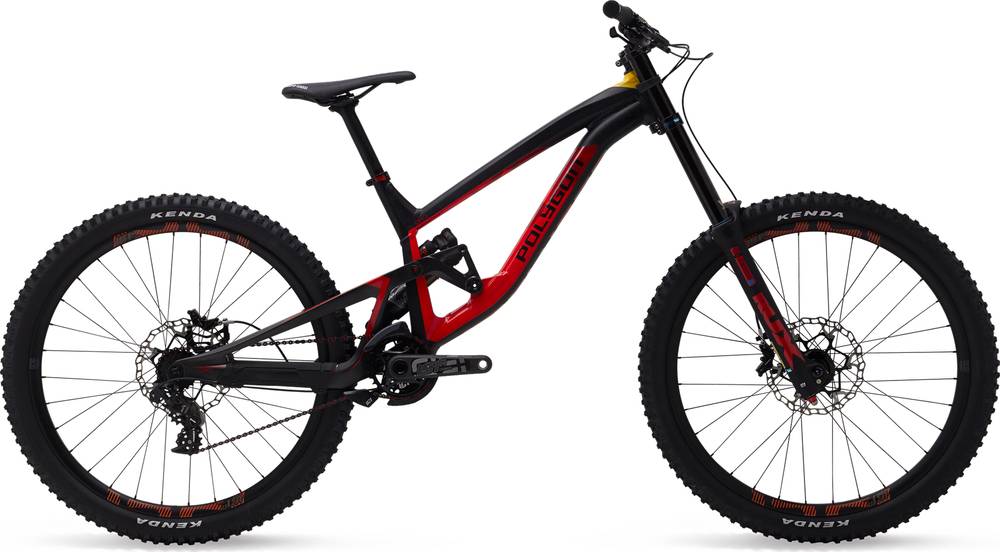

Polygon COLLOSUS DH9 TEAM 2020
2020 Mountain
Estimate price |
7,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork SunTour RUX
-
Groupset X0, e*thirteen LG1 Race -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX FRONT & ACX REAR DOWNHILL FRAME, 200MM TRAVEL, 157MM O.L.D.
Suspension Fork
SR SUNTOUR RUX, 200MM TRAVEL
Rear Shock
FOX FACTORY FLOAT X2 (9.50”x3.00”, 10x22.2mm hardwares)
Drivetrain
Rear Derailleur
SRAM X0 DH 7-SPEED
Shift Levers
SRAM X0 DH 7-SPEED
Cassette
E13 7-SPEED 9-21T DIRECT MOUNT CASSETTE
Crank
E13 LG1 RACE CARBON 32T, 165MM
Bottom Bracket
E13 BSA FOR 83MM BB SHELL
Chain
KMC X-11SL
Wheels
Rims
E13 LG1 RACE CARBON W/ INTEGRATED CASSETTE
Tires
KENDA HELLKATE K1201 27.5”X2.40”
Brakes
Brakes
TRICKSTUFF DIRETTISSIMA
Cockpit
Stem
SPANK DIRECTOR, E:50MM
Handlebar
SPANK SPIKE 800 VIBROCORE, W:800MM R:30MM
Seat
Saddle
REVERSE FORT WILL TITAN
Seatpost
KS ETHER CARBON, 30.9MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | XL High | LG Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.53 mm | 1.386 mm | 1.429 mm | 1.319 mm | 1.249 mm | 1.358 mm | 1.285 mm |
| Bottom Bracket Height | 364.7 mm | 353.6 mm | 364.7 mm | 353.5 mm | 364.7 mm | 364.7 mm | 353.3 mm | 353.2 mm |
| Front Center | 763 mm | 763 mm | 791 mm | 791 mm | 813 mm | 838 mm | 813 mm | 793 mm |
| Rake | 57 mm | 52 mm | 57 mm | 53 mm | 57 mm | 57 mm | 52 mm | 12 mm |
| Trail | 117 mm | 129 mm | 117 mm | 127 mm | 117 mm | 117 mm | 128 mm | 173 mm |
| Stack | 593.4 mm | 599.2 mm | 593.4 mm | 599.5 mm | 593.4 mm | 593.4 mm | 599.6 mm | 599.9 mm |
| Reach | 400.3 mm | 391.6 mm | 428 mm | 419.5 mm | 450 mm | 475 mm | 441.6 mm | 466.8 mm |
| Top Tube Length | 554.8 mm | 559 mm | 582.5 mm | 586.8 mm | 604.5 mm | 604.5 mm | 608.9 mm | 634 mm |
| Seat Tube Angle | 75.5 ° | 75.4 ° | 75.5 ° | 75.4 ° | 75.5 ° | 75.5 ° | 75.4 ° | 75.4 ° |
| Seat Tube Length | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm |
| Head Tube Angle | 63 ° | 62.2 ° | 63 ° | 62.3 ° | 63 ° | 63 ° | 62.3 ° | 62.3 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 441 mm | 445 mm | 441 mm | 445 mm | 441 mm | 441 mm | 445 mm | 445 mm |
| Wheelbase | 1204 mm | 1208 mm | 1232 mm | 1236 mm | 1254 mm | 1279 mm | 1258 mm | 1238 mm |
| Bottom Bracket Drop | 6 mm | 4 mm | 6 mm | 5 mm | 6 mm | 6 mm | 5 mm | 5 mm |
| Standover Height | 675 mm | 671 mm | 675 mm | 669 mm | 673 mm | 673 mm | 668 mm | 668 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
COLLOSUS DH9 TEAM is part of the Polygon Collosus model. Polygon launched 20 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Polygon COLLOSUS DH9 2020 is the cheapest bike model and costs 5599$. Polygon COLLOSUS DH9 TEAM 2020 is the most expensive one and costs 7499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Polygon COLLOSUS DH9 TEAM price was 7499$. Comparing the average cost of a Downhill bike to this one, you will see that COLLOSUS DH9 TEAM price is 121.14% more expensive.
COLLOSUS DH9 TEAM components
Fork
The COLLOSUS DH9 TEAM comes factory-installed with the SunTour RUX fork. This has a travel range of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX FACTORY FLOAT X2 (9.50”x3.00” rear shock model, which has a travel of 200mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the COLLOSUS DH9 TEAM model has 27.5″ carbon wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Polygon COLLOSUS DH9 TEAM has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
