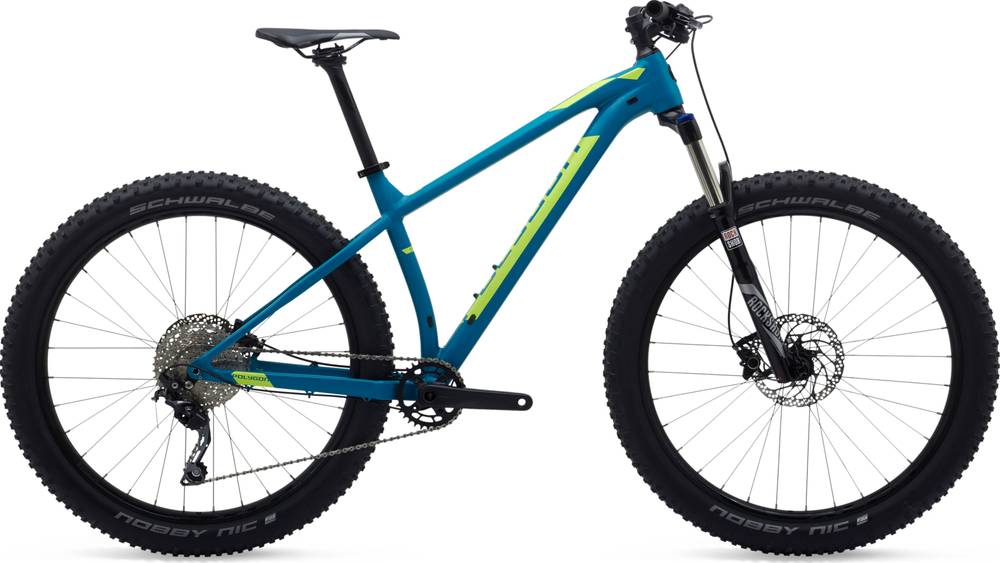

Polygon ENTIAT TR6 2019
2019 Mountain
Estimate price |
1,099$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX TRAIL, BOOST 12X148MM O.L.D. POST MOUNT, INTERNAL SHIFTING ROUTE
Suspension Fork
ROCKSHOX RECON SILVER RL, TRAVEL 120MM, TAPERED STEERER, BOOST 15X110MM O.LD.
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M615-GS
Front Derailleur
None
Shift Levers
SHIMANO DEORE SL-M610
Cassette
SUNRACE, 10-SPEED 11-42T
Crank
SAMOX 32T, 170MM (S-M), 175MM (L)
Bottom Bracket
BB BSA
Chain
KMC X-10
Chain Guide
None
Pedals
VP Component VP-195E, alloy
Wheels
Front Hub
Entity Boost wheelset, sealed bearings
Rear Hub
Entity Boost wheelset, sealed bearings
Rims
ENTITY BOOST FRONT & REAR WITH SEALED BEARING HUBS
Spokes
Entity Boost wheelset
Tires
SCHWALBE NOBBY NIC, 27.5”X3.00”, CLINCHER
Brakes
Brakes
SHIMANO BR-M365
Brake Levers
Shimano M365
Cockpit
Stem
ENTITY XPERT, ALLOY, 60MM
Handlebar
ENTITY XPERT, ALLOY, 740MM
Headset
FSA NO.57B-1, taper ID:44/56mm
Seat
Saddle
ENTITY ASSAULT, CR-MO RAIL
Seatpost
ENTITY XPERT, ALLOY, 30.9X400MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.54 mm | 1.47 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 670 mm | 699 mm | 721 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 617.8 mm | 622.4 mm | 627.1 mm |
| Reach | 378.5 mm | 405.1 mm | 425.8 mm |
| Top Tube Length | 560 mm | 591 mm | 616 mm |
| Seat Tube Angle | 73.75 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 435 mm | 485 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1094 mm | 1122 mm | 1145 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 688 mm | 697 mm | 730 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
ENTIAT TR6 is a Polygon Entiat model. Polygon released 6 bikes variations of this model so far. You can easily view all of the Polygon Entiat bikes models from 2019, here.
Model range prices
Polygon ENTIAT TR6 2019 is the most affordable bike of this model and has a price of 1099$. On the other hand, Polygon Entiat TR 8 2019, is the most expensive and costs 1699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Polygon released this model in 2019, its price was 1099$. Comparing the average cost of a Trail bike to this one, you will see that ENTIAT TR6 price is 151.32% lower.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Polygon ENTIAT TR6 it’s weighing 15 kg (33.07 lbs). At this weight, is much heavier than average. In short, the average Trail bike weight is 15.56% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The ENTIAT TR6 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ENTIAT TR6 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Polygon ENTIAT TR6 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
