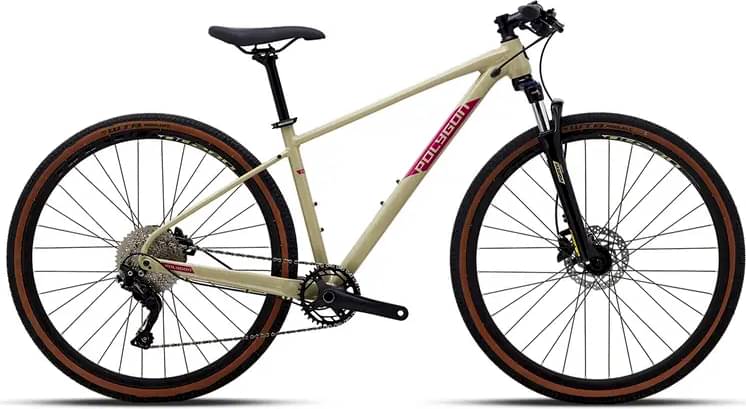

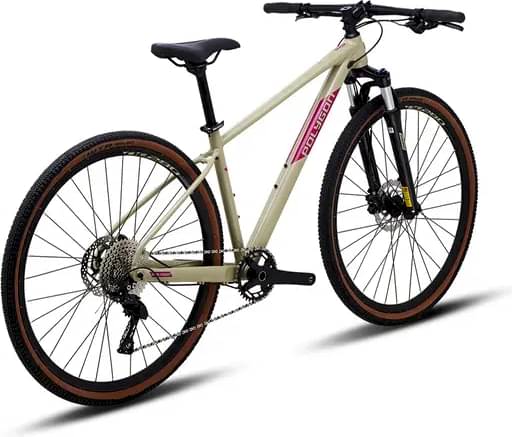

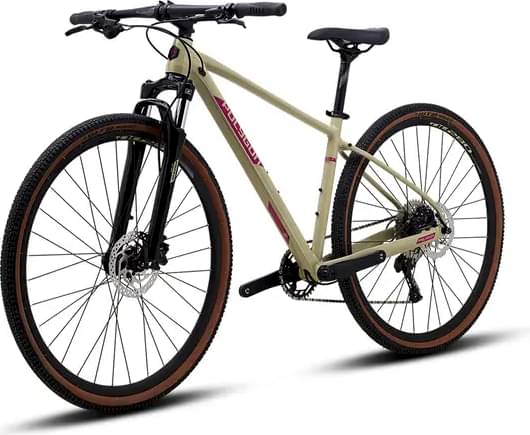

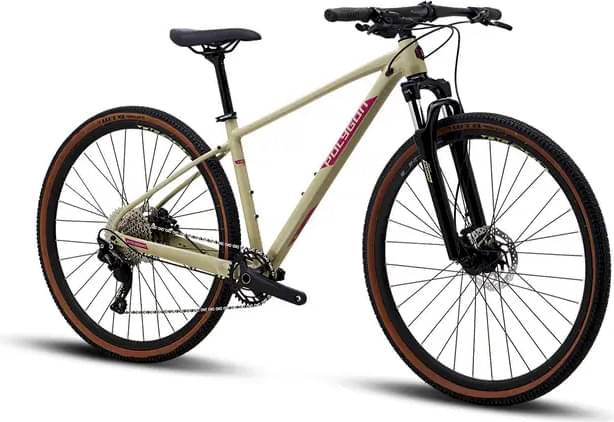

Polygon Heist X5 2024
2024 Urban
Estimate price |
794$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

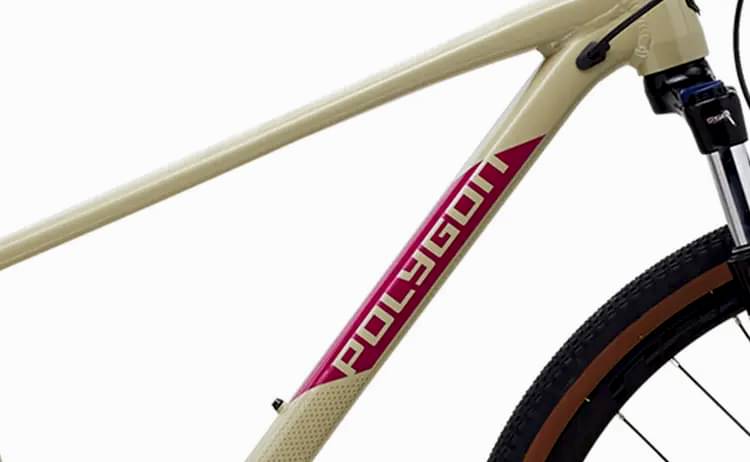

Frame
AL6 Urban Cross 700C, 135mm QR (12x142mm Compatible)

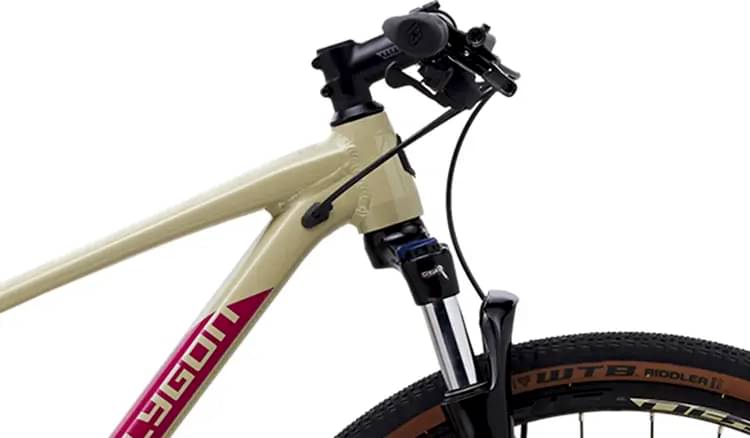

Suspension Fork
Suntour NVX, 63mm Travel, Preload Adjuster, Hydraulic Lock Out

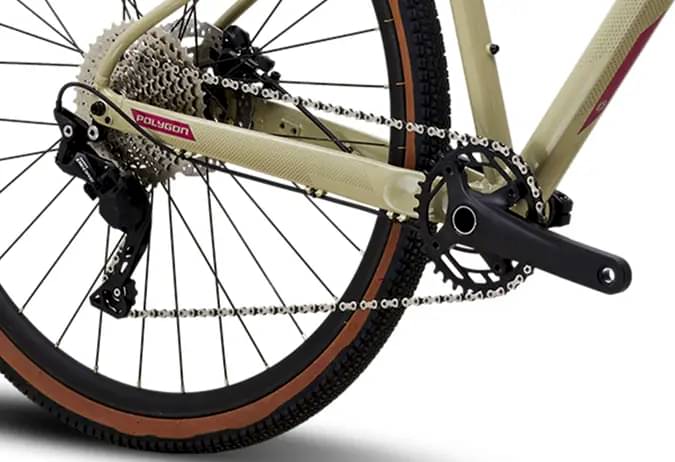

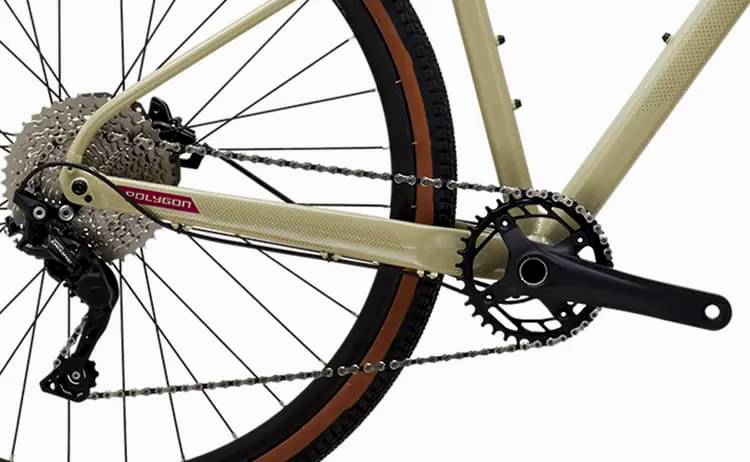

Drivetrain
Rear Derailleur
Shimano Deore RD-M6000, 10 Speed
Shift Levers
Shimano Deore SL-M6000, 10 Speed
Cassette
Shimano CS-HG500, 11-42T, 10 Speed
Crank
ProWheel Alloy 36T, 170mm (S, M) / 175mm (L, XL)
Bottom Bracket
BSA Threaded, 68mm
Chain
KMC X10-1
Pedals
Flat with Reflector
Wheels
Rims
Alloy Double Wall 32H, 6 Bolt Rotor, QR Axles
Tires
WTB Riddler 700x45C
Brakes
Brakes
Shimano BL-MT201 Hydraulic Disc, 160mm Rotor

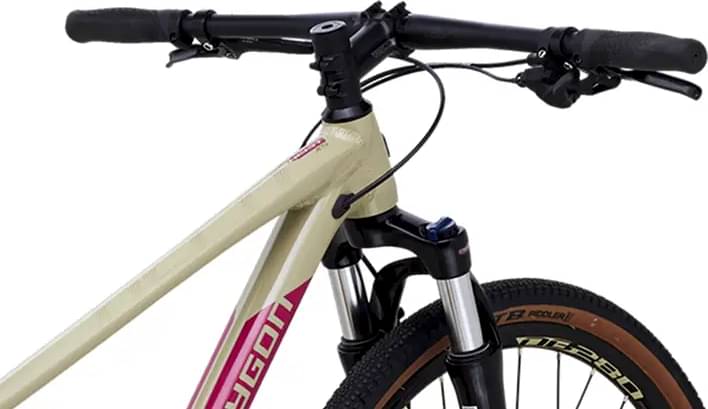

Cockpit
Stem
Entity Xpert, Alloy, 60mm (S, M) / 80mm (L, XL)
Handlebar
Entity Xpert, 700mm, 31.8mm, Alloy
Seat

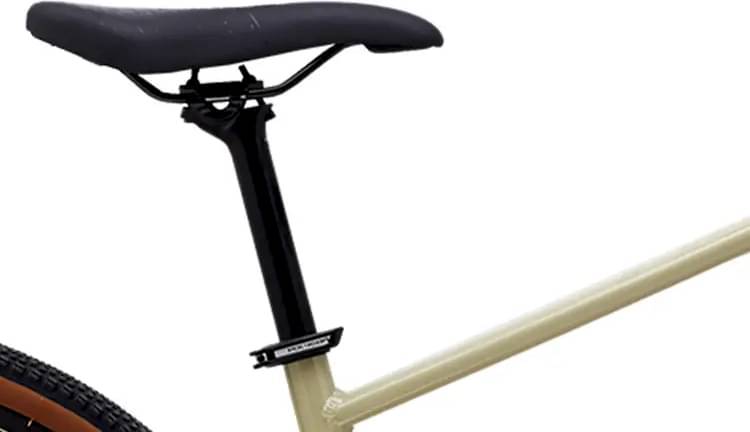

Saddle
Entity
Seatpost
Entity Xpert, 27.2x350mm, 15mm Offset, Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.613 mm | 1.496 mm | 1.432 mm | 1.376 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 632 mm | 662 mm | 690 mm | 718 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 66 mm | 66 mm | 66 mm | 67 mm |
| Stack | 621 mm | 621 mm | 630 mm | 640 mm |
| Reach | 385 mm | 415 mm | 440 mm | 465 mm |
| Top Tube Length | 563 mm | 593 mm | 620 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 431 mm | 470 mm | 516 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1063 mm | 1093 mm | 1121 mm | 1149 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 688 mm | 708 mm | 742 mm | 781 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
About this model
Heist X5 is a Polygon Heist model. Polygon launched 19 bikes of this model so far. Take a sneak peek at all Polygon Heist bikes models from 2024, by clicking here.
Model range prices
Polygon Heist X2 2024 is the most affordable bike of this model and has a price of 509$. On the other hand, Polygon Heist X7 2024, is the most expensive and costs 891$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Polygon Heist X5 price was 700$. If we compare this with the average Hybrid bike cost we notice that the price is 24.56% more expensive.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.99 kg (30.84 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Polygon Heist X5 it’s weighing 13.5 kg (29.76 lbs). At this weight, is slightly lighter than average. In other words, this model is 3.63% lighter than the average Hybrid bike.
Heist X5 components

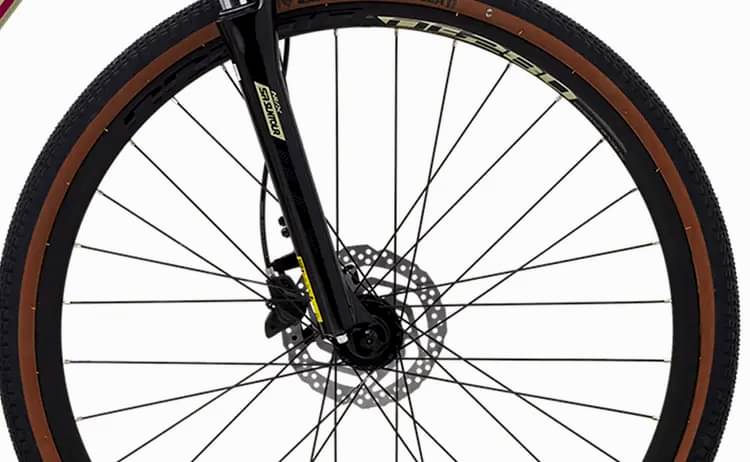

Fork
The Suntour NVX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Heist X5 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Heist X5 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, you can easily find one that suits you.
