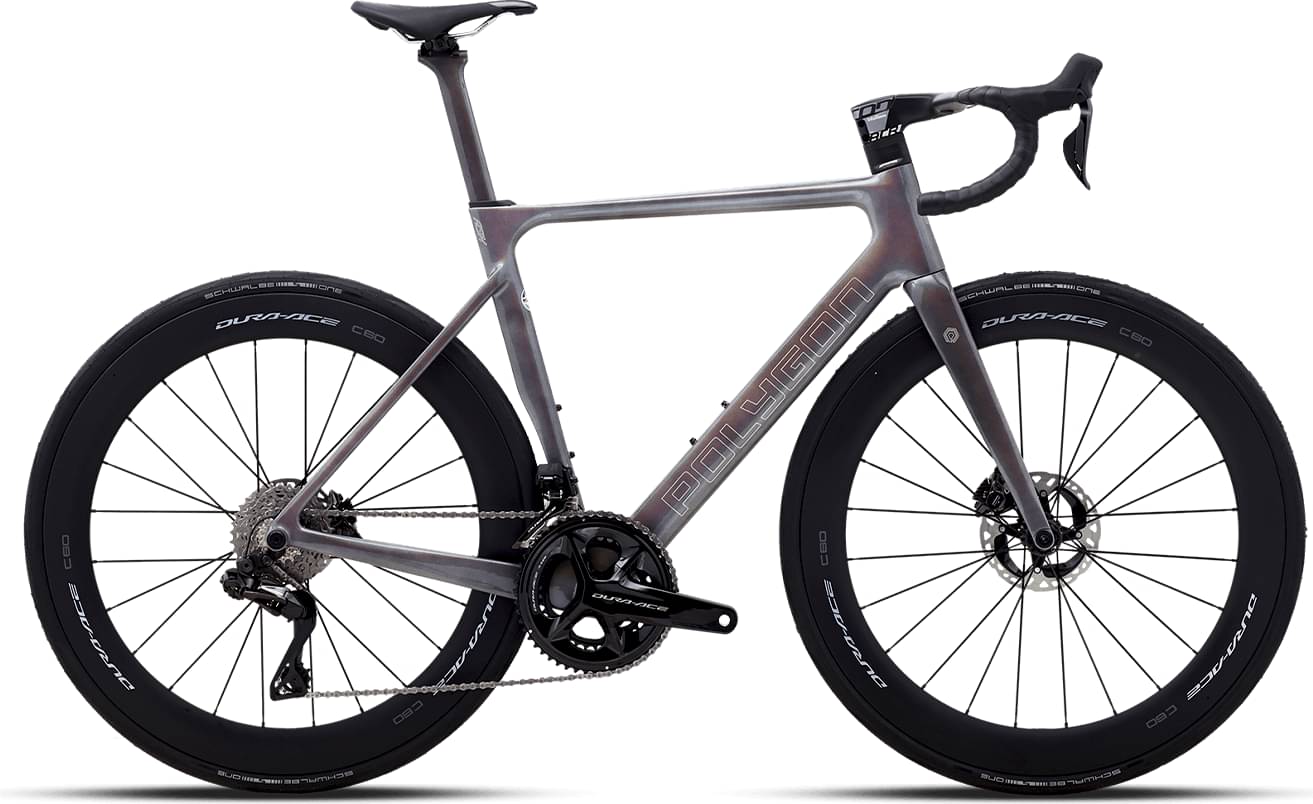

Polygon HELIOS A9X DURA ACE C60 2023
2023 Road
Estimate price |
7,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
144cm - 155cm
XS
153cm - 164cm
SM
162cm - 170cm
MD
168cm - 176cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2"
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH
Shift Levers
SHIMANO DURA-ACE Di2 ST-R9270, 2x12-SPEED DCL
Cassette
SHIMANO DURA-ACE CS-R9200-12 11-34T
Crank
SHIMANO DURA-ACE FC-R9200 52/36T, 170mm (XS, S, M) / 172.5mm (L, XL)
Bottom Bracket
SHIMANO SM-BB92-41B, PRESSFIT BB86
Chain
SHIMANO CN-M8100 12-SPEED
Pedals
-
Wheels
Rims
SHIMANO DURA-ACE WH-R9270-C60-HR-TL (60mm) TUBELESS
Tires
SCHWALBE ONE ADDIX TLE 700x28C
Brakes
Brakes
SHIMANO DURA-ACE HYDRAULIC DISC
Brake Levers
SHIMANO DURA-ACE HYDRAULIC DISC
Cockpit
Handlebar
VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), R/D: 125mm, BB: INTEGRATED, B/R: 80mm
Headset
INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Seat
Saddle
ENTITY FLUX2, CR-MO ø 7mm
Seatpost
CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 565 mm | 572 mm | 580 mm | 587 mm | 597 mm | 602 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 65 mm | 64 mm | 62 mm | 62 mm | 59 mm |
| Stack | 504 mm | 519.21 mm | 534.2 mm | 549.4 mm | 563.7 mm | 579.8 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 389 mm | 394 mm |
| Top Tube Length | 504.31 mm | 516.31 mm | 529.42 mm | 542.04 mm | 554.14 mm | 568.25 mm |
| Seat Tube Angle | 75 ° | 74.7 ° | 74.3 ° | 74 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 71.8 ° | 72 ° | 72.3 ° | 72.3 ° | 72.8 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 967 mm | 974 mm | 982 mm | 990 mm | 999 mm | 1004 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 714 mm | 738 mm | 762 mm | 779 mm | 801 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 144 cm | 153 cm | 162 cm | 168 cm | 174 cm | 179 cm |
| Rider Max Height | 155 cm | 164 cm | 170 cm | 176 cm | 182 cm | 187 cm |
About this model
HELIOS A9X DURA ACE C60 completes the Polygon Helios model. 33 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Polygon HELIOS A7 2023 is the most affordable bike of this model and has a price of 2799$. On the other hand, Polygon HELIOS A9X C60 POWERMETER 2023, is the most expensive and costs 7499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7099$. If we compare this with the average Race bike cost we notice that the price is 111.91% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the HELIOS A9X DURA ACE C60 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Polygon HELIOS A9X DURA ACE C60 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 144 cm – 187 cm (4.72 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
