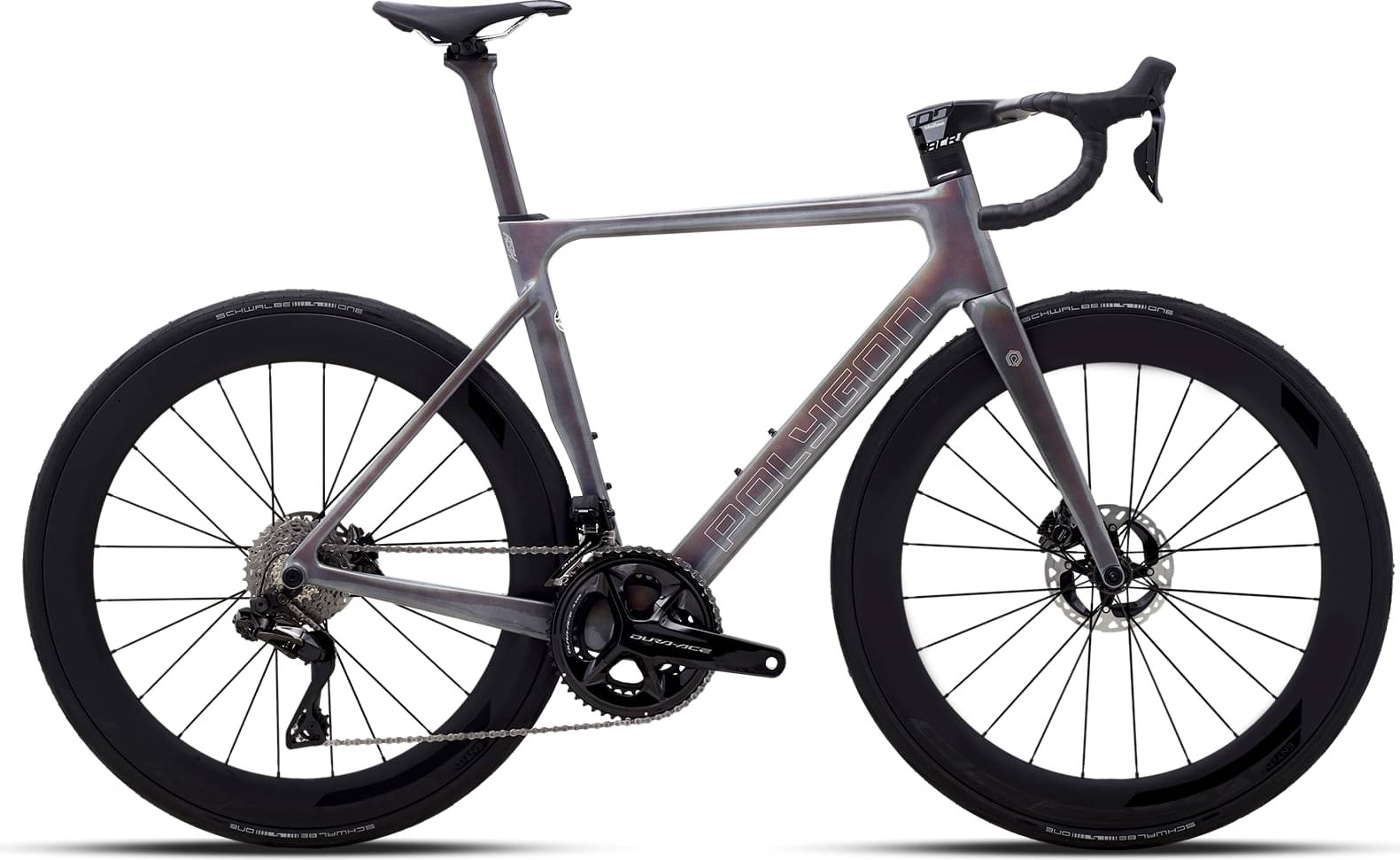

Polygon HELIOS A9X ENTITY WR5 2023
2023 Road
Estimate price |
6,249$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
144cm - 155cm
XS
153cm - 164cm
SM
162cm - 170cm
MD
168cm - 176cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
ACX PERFORMANCE UCI APPROVED
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 RD-R9250 12-Speed DA
Shift Levers
Shimano Dura Ace ST-R9270 Di2 12-Speed
Cassette
Shimano Dura Ace CS-R9200 12-Speed 11-34T
Crank
Shimano Dura Ace FC-R9200-P 52-36t 170mm (XS,S,M) 172.5mm (L,XL)
Bottom Bracket
Bottom Bracket Shimano KSMBB9241B For Road
Chain
Shimano CN-M8100 12-Speed Quick-Link
Pedals
Flat Alloy W/ Replaceable Pin
Wheels
Rims
ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED?
Tires
SCHWALBE ONE ADDIX TLE 700x28C
Brakes
Brakes
SHIMANO DURA-ACE BR-R9270
Brake Levers
SHIMANO DURA-ACE ST-R9270?
Cockpit
Handlebar
Vision Metron 5D ACR Integrated 400mm (XS, S) 420mm (M, L) 420mm (XL)
Headset
INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE 52/28.6 | IS 52/40?
Seat
Saddle
Entity Flux2, Cr-Mo Rail
Seatpost
Carbon 35 x 337mm (XS) / 357mm (S,M,L & XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 565 mm | 572 mm | 580 mm | 587 mm | 597 mm | 602 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 65 mm | 64 mm | 62 mm | 62 mm | 59 mm |
| Stack | 504 mm | 519.21 mm | 534.2 mm | 549.4 mm | 563.7 mm | 579.8 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 389 mm | 394 mm |
| Top Tube Length | 504.31 mm | 516.31 mm | 529.42 mm | 542.04 mm | 554.14 mm | 568.25 mm |
| Seat Tube Angle | 75 ° | 74.7 ° | 74.3 ° | 74 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 71.8 ° | 72 ° | 72.3 ° | 72.3 ° | 72.8 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 967 mm | 974 mm | 982 mm | 990 mm | 999 mm | 1004 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 714 mm | 738 mm | 762 mm | 779 mm | 801 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 144 cm | 153 cm | 162 cm | 168 cm | 174 cm | 179 cm |
| Rider Max Height | 155 cm | 164 cm | 170 cm | 176 cm | 182 cm | 187 cm |
About this model
HELIOS A9X ENTITY WR5 is part of the Polygon Helios model. Polygon launched 33 bikes of this model so far. Take a sneak peek at all Polygon Helios bikes models from 2023, by clicking here.
Model range prices
Polygon HELIOS A7 2023 is the most affordable bike of this model and has a price of 2799$. On the other hand, Polygon HELIOS A9X C60 POWERMETER 2023, is the most expensive and costs 7499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 6249$. Comparing the average cost of a Race bike to this one, you will see that HELIOS A9X ENTITY WR5 price is 86.54% more expensive.
HELIOS A9X ENTITY WR5 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the HELIOS A9X ENTITY WR5 bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon HELIOS A9X ENTITY WR5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 144 cm – 187 cm (4.72 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
