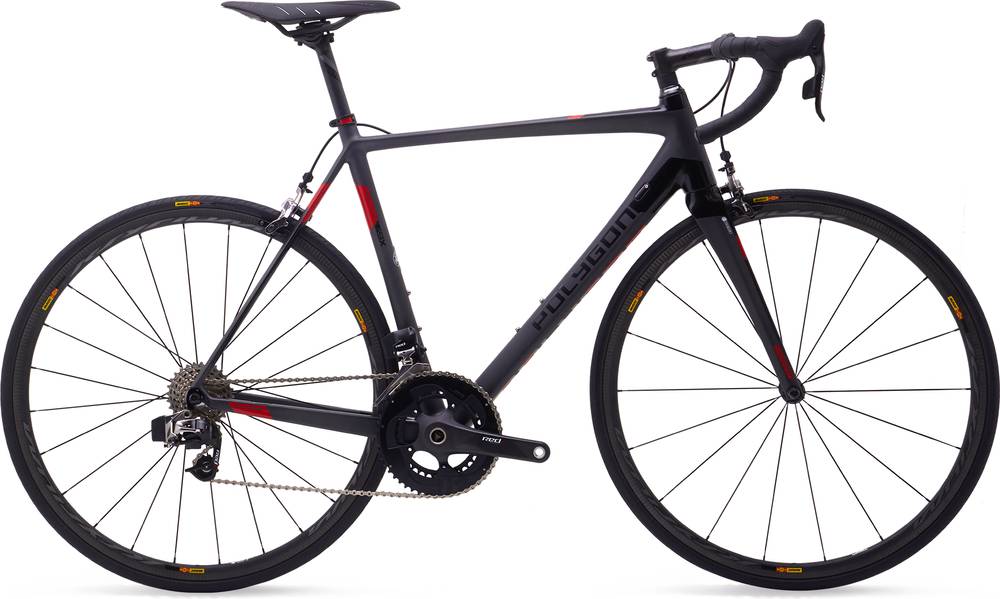

Polygon HELIOS LT9X ETAP 2020
2020 Road
Estimate price |
4,999$
Weight | 6.19 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 170cm
MD
165cm - 175cm
LG
170cm - 180cm
XL
175cm - 185cm
XXL
180cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ACX PERFORMANCE ROAD, 130MM O.L.D. INTERNAL ROUTE, Di2 READY
Suspension Fork
ACX PERFORMANCE ROAD, CARBON TAPER STEERER
Rear Shock
-
Drivetrain
Rear Derailleur
SRAM RED eTAP
Shift Levers
SRAN RED eTAP
Cassette
SRAM CS-XG-1190, 11-SPEED 11-28T
Crank
SRAM RED 52X36T, 170MM(46-50), 172.5MM(53-56), 175MM (58-60)
Bottom Bracket
SRAM PRESSFIT GXP
Chain
SRAM RED
Wheels
Rims
MAVIC KYSRIUM PRO CARBON SL CLICHER
Tires
MAVIC FRONT:YKSION PRO SSC GRIPLINK & REAR:YKSION PRO SSC POWERLINK, 700X25C, CLINCHER
Brakes
Brakes
SRAM RED
Cockpit
Stem
ENTITY ELITE, ALLOY WITH CARBON WRAP, 100MM (46-50)
Handlebar
ENTITY ELITE, CARBON, 400MM(46-50), 420MM(53-56), 440MM(58-60)
Seat
Saddle
FIZIK ARIONE R3, CARBON BRAIDED RAIL
Seatpost
ENTITY ELITE, CARBON, 27.2X350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.41 mm | 1.44 mm | 1.43 mm | 1.49 mm |
| Bottom Bracket Height | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm |
| Front Center | 579 mm | 582 mm | 585 mm | 596 mm | 606 mm | 619 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 43 mm |
| Trail | 68 mm | 62 mm | 56 mm | 53 mm | 53 mm | 55 mm |
| Stack | 504.2 mm | 521.9 mm | 544.3 mm | 565.2 mm | 574.7 mm | 607.7 mm |
| Reach | 373.5 mm | 379.5 mm | 384.9 mm | 393.7 mm | 401.4 mm | 407.3 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 562 mm | 578 mm | 597 mm |
| Seat Tube Angle | 74.2 ° | 73.8 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 500 mm | 530 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 165 mm | 176 mm | 200 mm |
| Chainstay Length | 402 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 971 mm | 979 mm | 982 mm | 993 mm | 1003 mm | 1017 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 707 mm | 729 mm | 757 mm | 783 mm | 799 mm | 819 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 165 cm | 170 cm | 175 cm | 180 cm |
| Rider Max Height | 161 cm | 170 cm | 175 cm | 180 cm | 185 cm | 190 cm |
About this model
HELIOS LT9X ETAP belongs to the Polygon Helios model. There are 33 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Polygon HELIOS LT8 2020 is the cheapest bike model and costs 1999$. Polygon HELIOS LT9X ETAP 2020 is the most expensive one and costs 4999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 4999$. Comparing the average cost of a Race bike to this one, you will see that HELIOS LT9X ETAP price is 49.22% more expensive.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Polygon HELIOS LT9X ETAP it’s weighing 6.19 kg (13.65 lbs). At this weight, is considerably lighter than average. In conclusion, the average Race bike weighs 10.18% more than HELIOS LT9X ETAP.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the HELIOS LT9X ETAP model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The HELIOS LT9X ETAP comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
HELIOS LT9X ETAP comes in 6 sizes, that range from 150 cm – 190 cm (4.92 ft – 6.23 ft). In conclusion, you won’t have a problem finding one that suits you.
