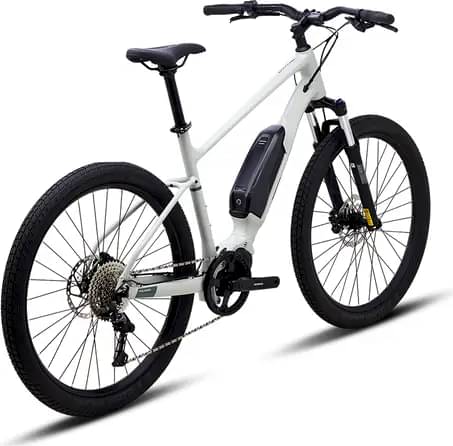

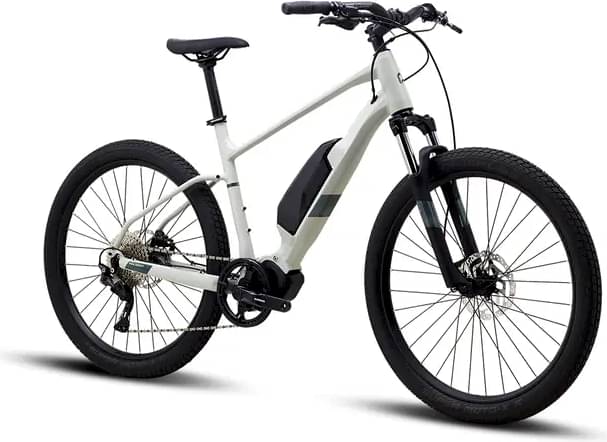

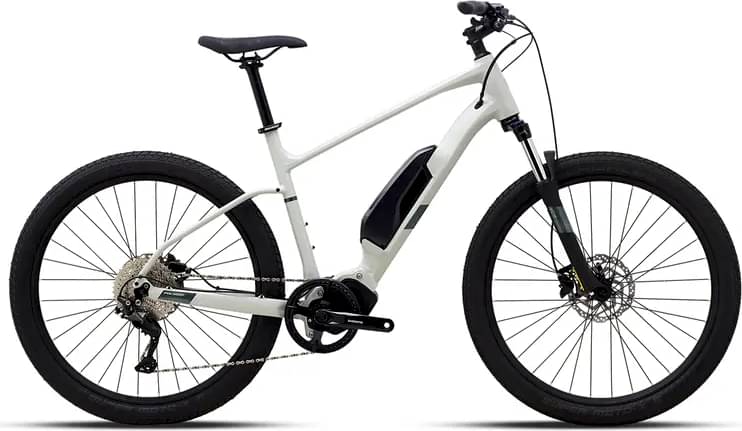

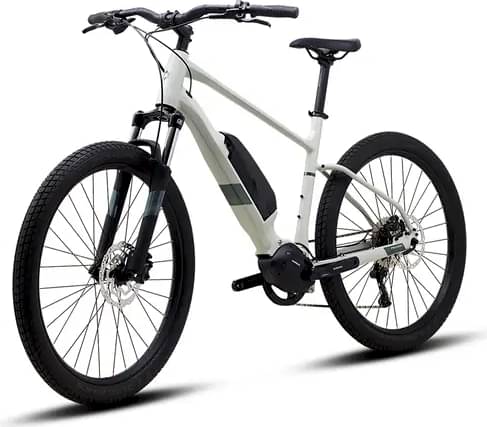

Polygon Kalosi Lanes Evo 2024
2024 E-bike
Estimate price |
2,299$
Weight | 19.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT-E8010, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX Trekking Frame, Internal Brake And Gear Cable Routing, Disc Brake, QR x 135mm
Suspension Fork
Suntour XCM HLO 100mm Travel, 1-1/8" Straight Steerer, Lock Out, Disc Brake Post Mount 160mm, QR/Nut x 100mm

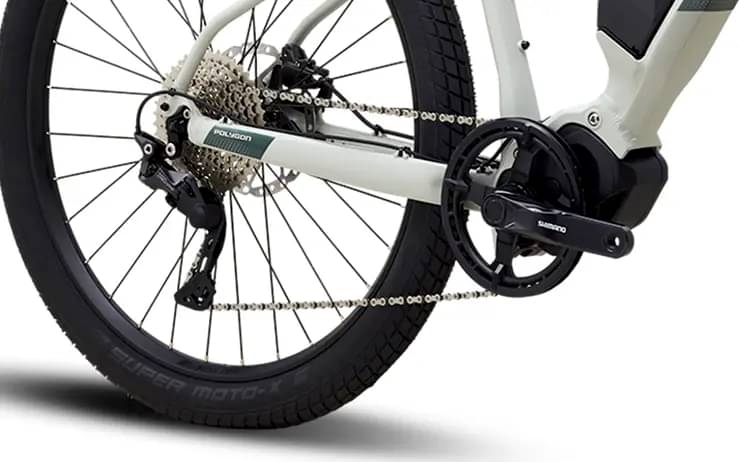

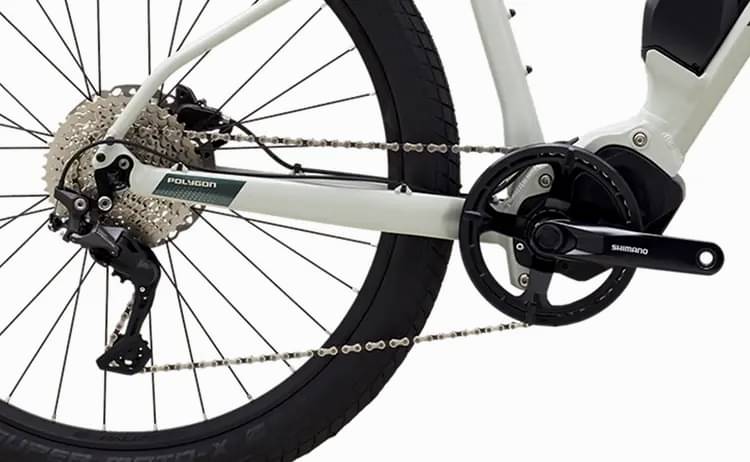

Drivetrain
Rear Derailleur
Shimano Deore RD-M5130-GS Direct Attach
Shift Levers
Shimano Deore SL-M5130-R 10-Speed Trigger
Cassette
Shimano CS-LG400-10 11-43T
Crank
Shimano FC-E5010 W/ SM-CRE50 44T CL: 46.5mm W/ Double Cg
Chain
Shimano CN-LG500
Pedals
Alloy Flat Pedals
Wheels
Front Hub
Shimano HB-TX505 QR x 100mm 32H Centerlock
Rear Hub
Shimano FH-TX505 QR x 135mm 32H Centerlock HG Free Hub
Rims
Alloy Double Wall 584 x 30C For Tire 584-54/76
Tires
Schwalbe Super Moto-X 27.5" x 2.40" (584-62)
Brakes
Brakes
Shimano BR-MT201 Hydraulic Disc Brake
Cockpit
Stem
Entity Xpert Alloy, 31.8 Clamp, 7° Drop/Rise
Handlebar
Entity Expert Alloy, 31.8, 25mm Rise, 18° Back Sweep
Headset
Zero Stack (ZS) Semi Integrated Bearing For Taper Head Tube

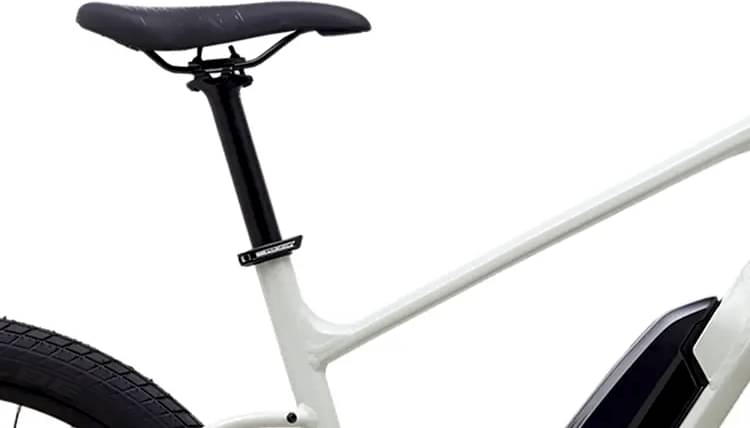

Seat
Saddle
Entity Saddle, Steel 7mm Rails
Seatpost
Entity Expert Alloy, 30.9 X 300mm, 0mm Offset

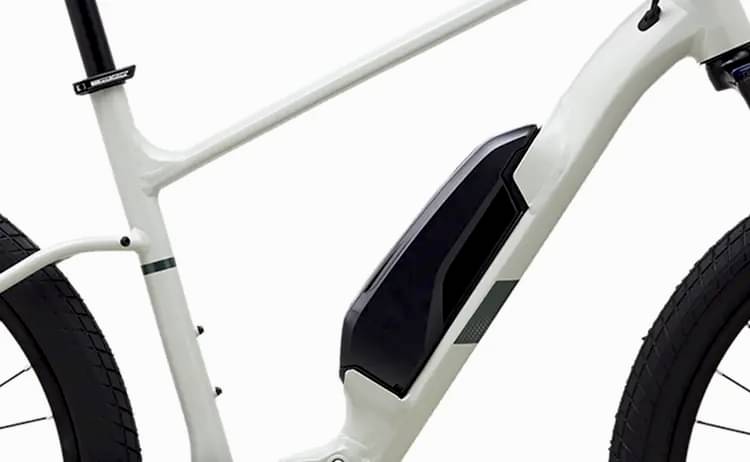

Motor & Battery
Motor
Shimano DU-E5000 Drive Unit, 250W, 40Nm
Battery
Shimano BT-E8010, 504 Wh
Charger
Shimano EC-E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.48 mm | 1.512 mm |
| Bottom Bracket Height | 287 mm | 287 mm | 287 mm |
| Front Center | 616 mm | 631 mm | 650 |
| Rake | 5 mm | 6 mm | 5 mm |
| Trail | 117 mm | 113 mm | 114 mm |
| Stack | 561 mm | 592 mm | 620 mm |
| Reach | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 546 mm | 570 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 170 mm | 200 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1067 mm | 1082 mm | 1101 mm |
| Bottom Bracket Drop | -70 mm | -70 mm | -70 mm |
| Standover Height | 704 mm | 736 mm | 766 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Kalosi Lanes Evo completes the Polygon E Kalosi model. Polygon released 16 e-bikes variations of this model so far. Take a sneak peek at all Polygon E Kalosi e-bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Polygon Kalosi Lanes Evo Mid 2024 has a starting price of 1926$. Polygon Kalosi Lanes Evo 2024 on the other hand is the most expensive at 2299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 2299$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 6.7% lower.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Polygon Kalosi Lanes Evo it’s weighing 19.6 kg (43.21 lbs). At this weight, is much lighter than average. In conclusion, the average Crosscountry e-bike weighs 18.42% more than Kalosi Lanes Evo.

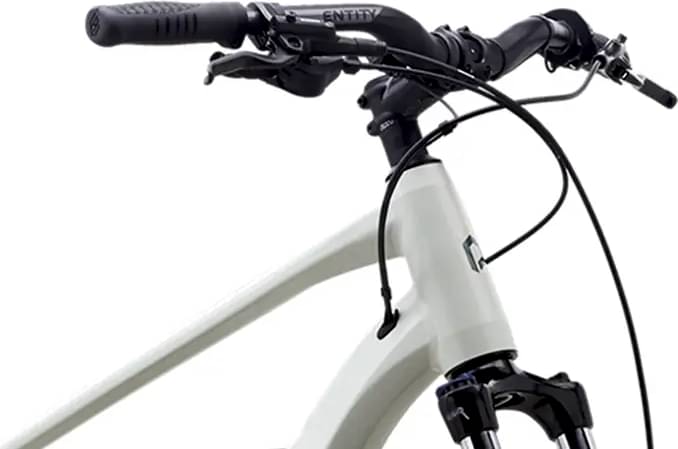

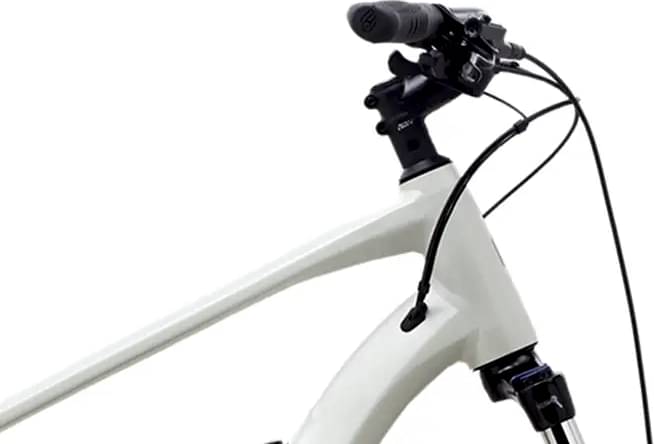

Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Kalosi Lanes Evo components

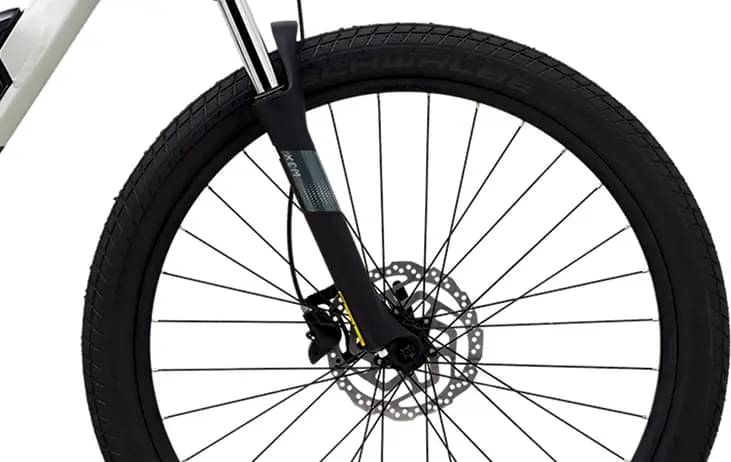

Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Kalosi Lanes Evo e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
